Removal and Installation


REM0VAL AND INSTALLATION

1. To remove the generator, first remove the following parts.
1. Head lamp
2. Front bumper cover
3. Radiator
2. Disconnect the battery negative terminal first then the positive terminal.

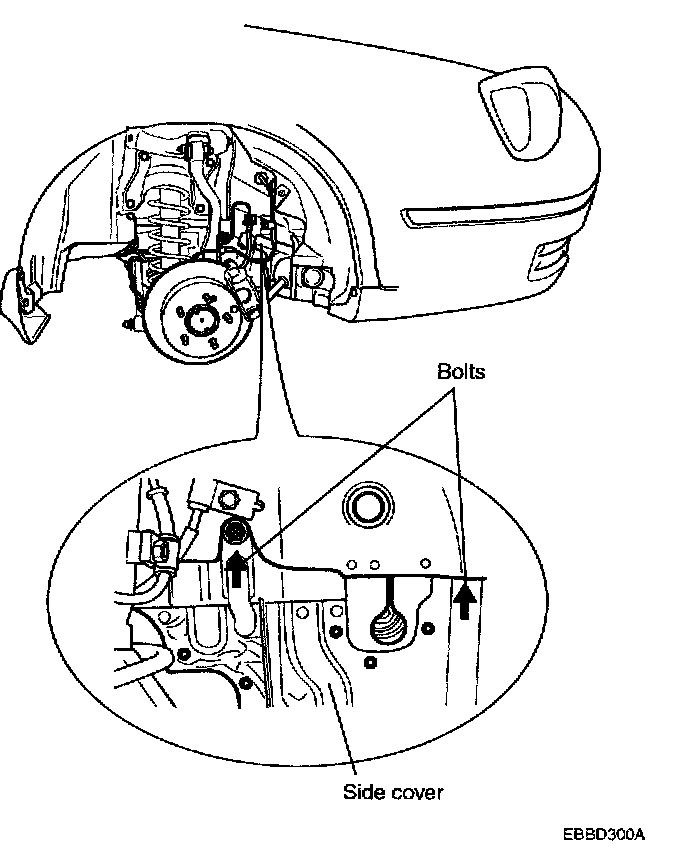

3. Remove the side cover (RH).

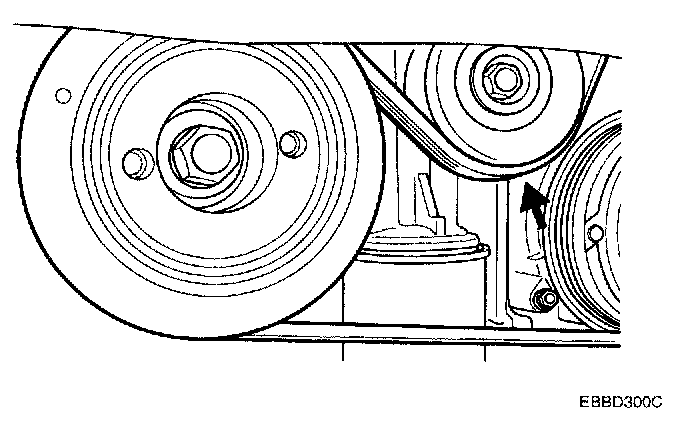

4. Loosen the drive belt tension adjusting bolt, then remove the drive belt

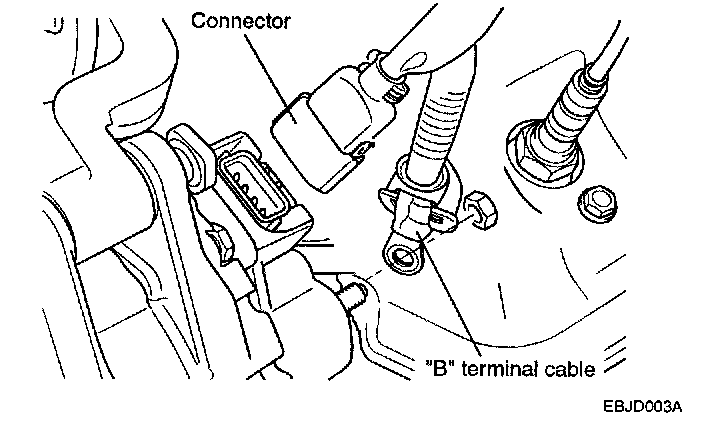

5. Disconnect the connector and "B" terminal cable.

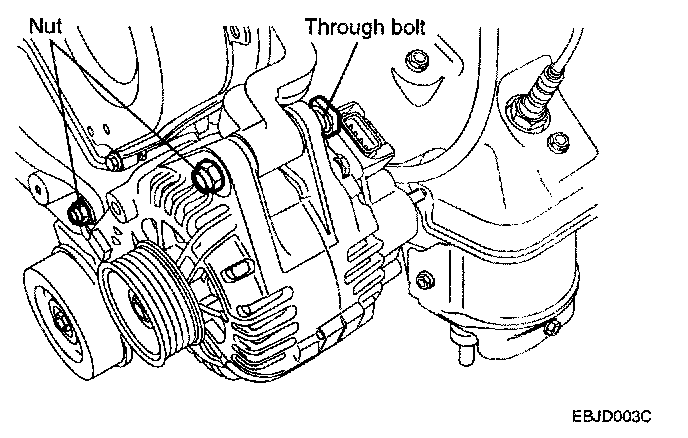

6. Pull out the through bolts, then remove the generator




7. Installation is reverse of removal

NOTE:
- Adjust the generator belt.
- Place the alternator and insert a support bolt (Do not insert a nut this time).

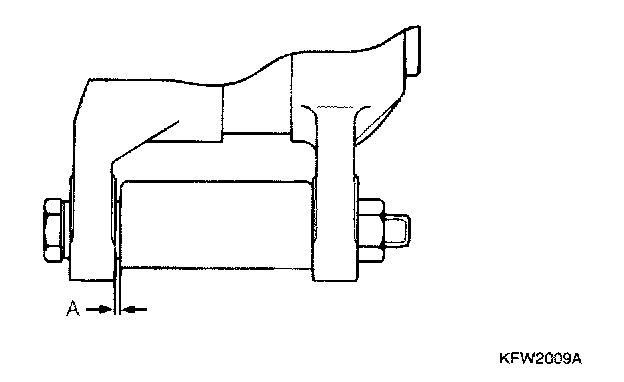

- After pushing the alternator forward, count that how many spacers (a spacer thickness: 0.198 mm) should be inserted between the alternator front leg and front case as shown in "A".
- After inserting spacers, insert and tighten a nut securely
