Rear Door Window Regulator: Service and Repair

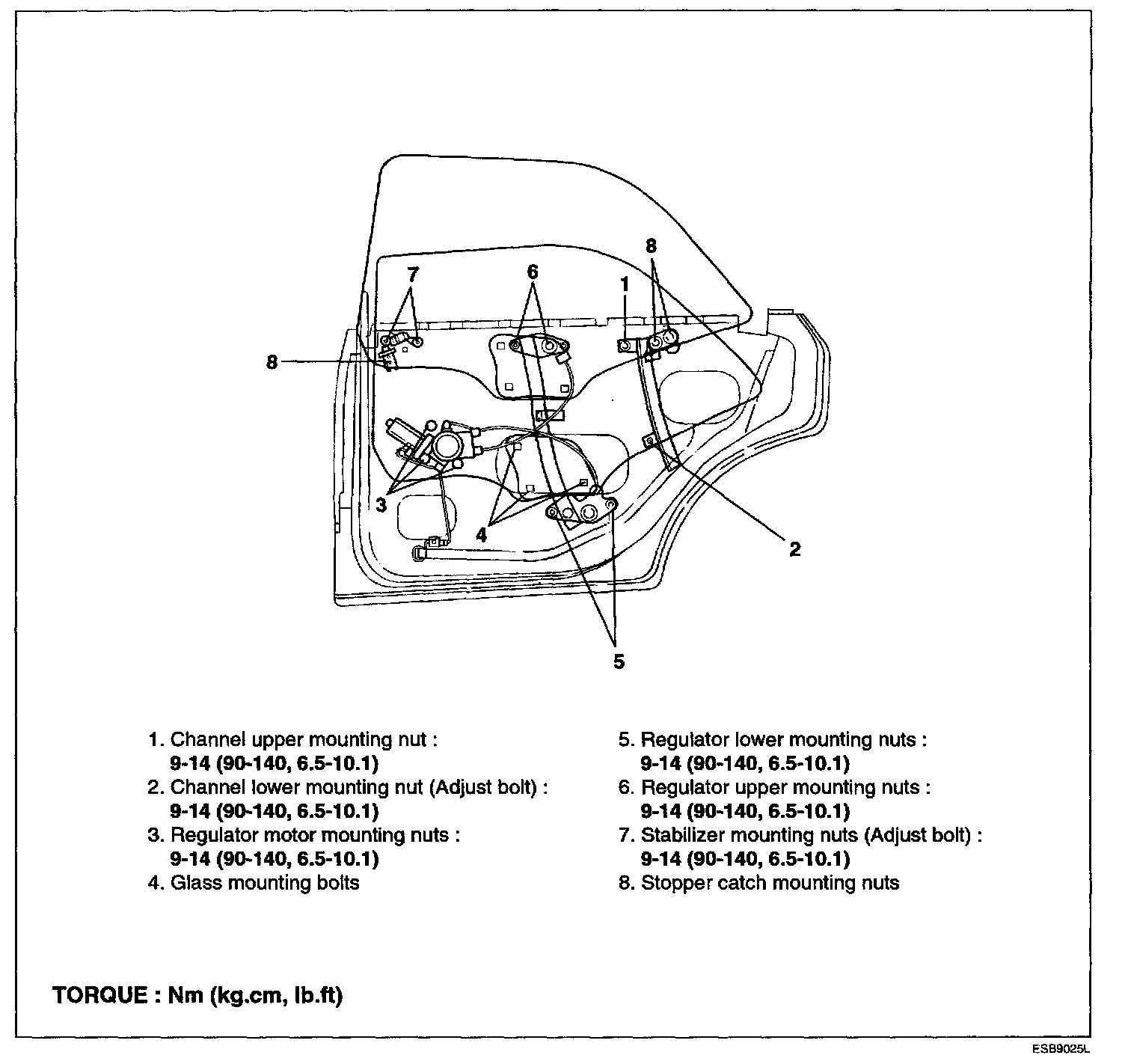

REGULATOR AND GLASS INSTALLATION

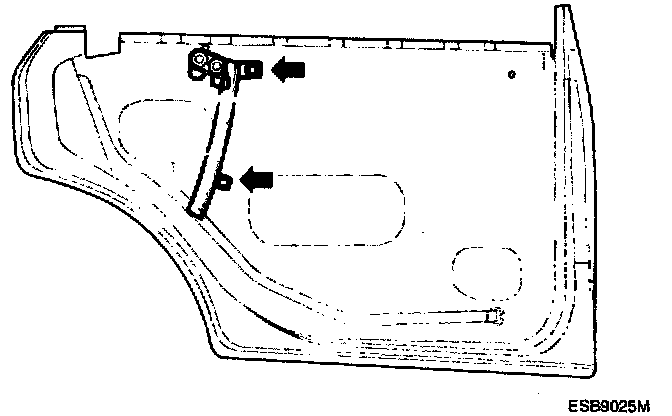

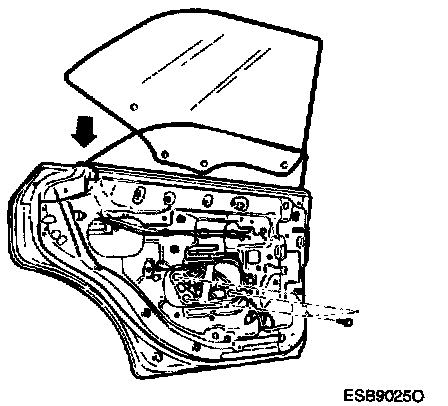

1. Temporarily install the rear door front channel.

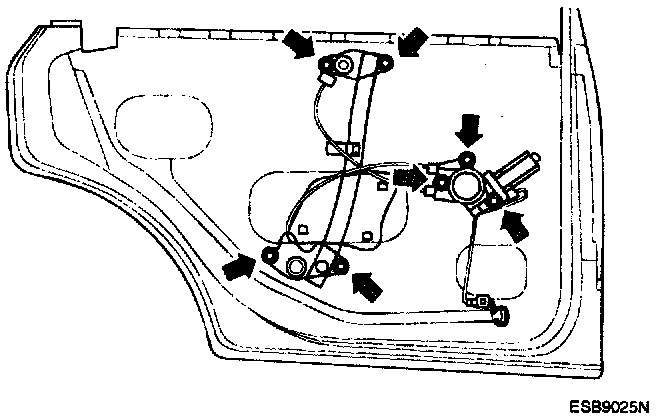

2. Temporarily install the power window regulator.

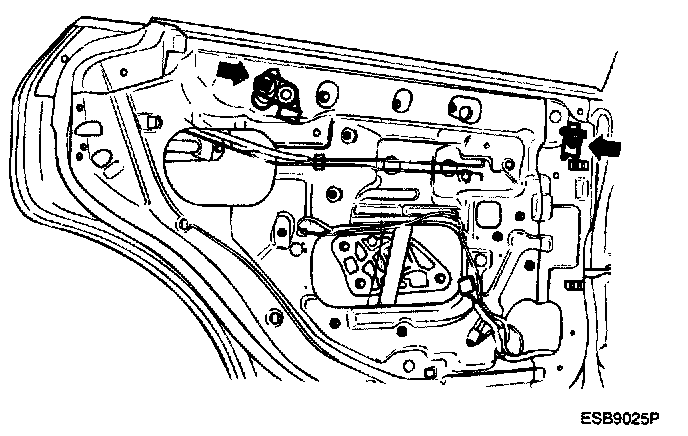

3. Temporarily install the door glass to the carrier plate.

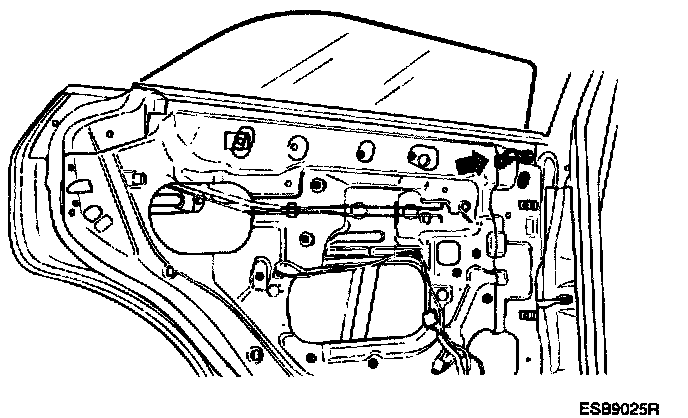

4. Temporarily install the stopper catch in the center of door inner panel mounting hole.






5. Temporarily install the stabilizer.






6. Tighten the stabilizer mounting nuts and push the door glass outward to the vehicle simultaneously.






7. Adjust the door glass and tighten the bolts and nuts. (Refer to the glass adjustment procedure).

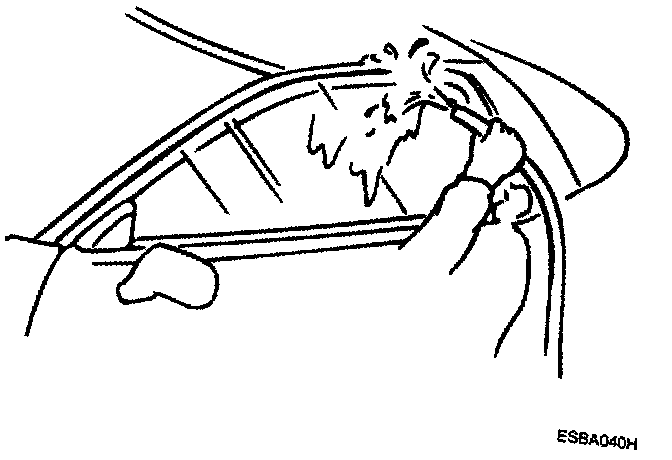

8. Install the remained parts and fully close the door and glass, check for water leaks.
