EGR Solenoid Valve Part 2

EXHAUST GAS RECIRCULATION (EGR) SOLENOID VALVE




The EGR solenoid valve is a duty control type solenoid valve, which controls EGR valve operation with negative pressure from the throttle body port.

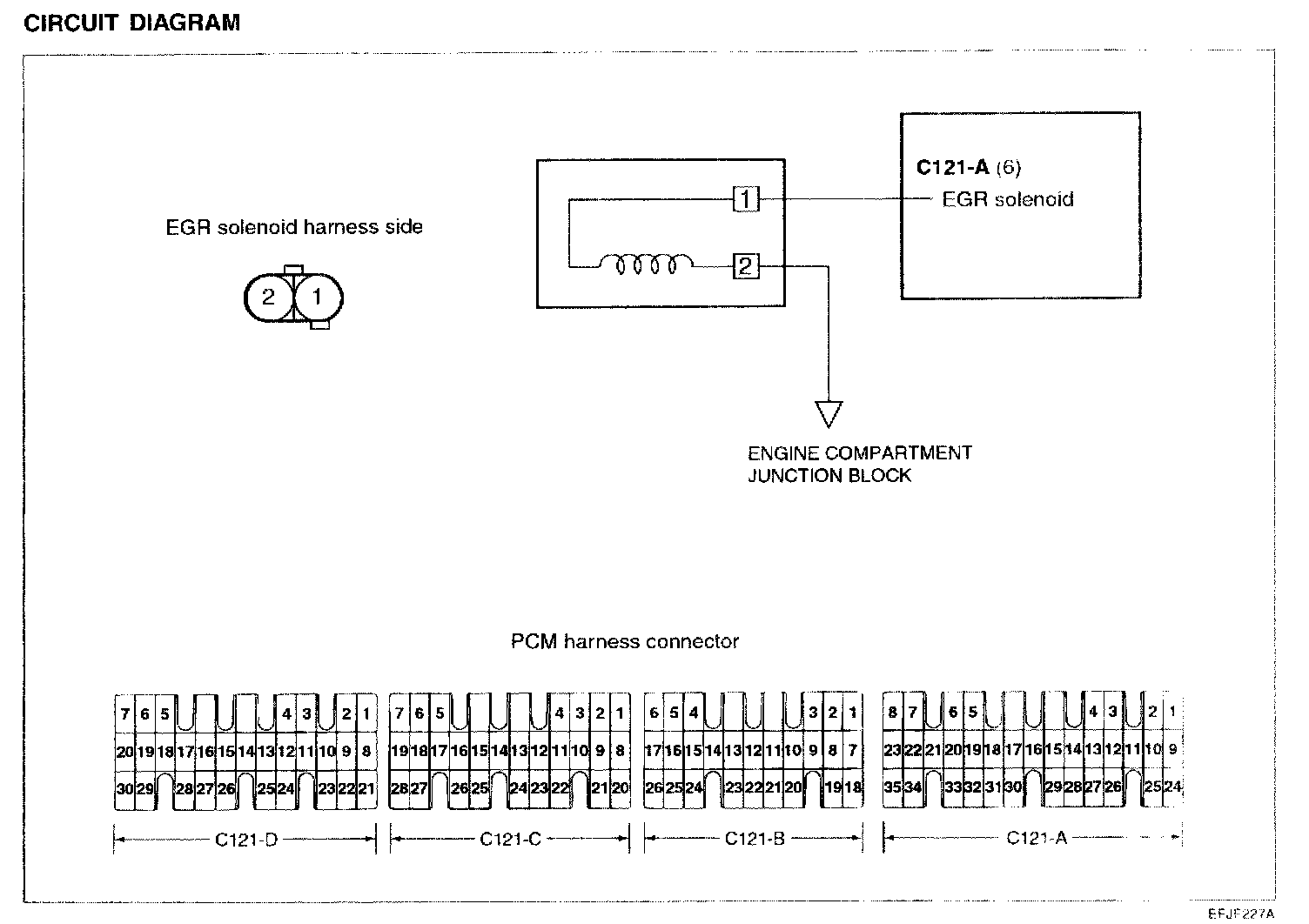

Circuit Diagram:

CIRCUIT DIAGRAM

EGR Valve Checking:

EGR VALVE CHECKING

HARNESS INSPECTION PROCEDURES

Refer to "P0489, P0490" DTC inspection procedures.

INSPECTION

CHECKING CONDITION

Engine coolant temperature: 80 - 95 °C (176 - 205 °F)




1. Disconnect the vacuum hose from the throttle body EGR vacuum fitting and connect a hand vacuum pump to the fitting.




2. Start the engine and check to see that, after increasing the engine speed, vacuum raises proportionately to engine speed.

NOTE: If there is a problem with the change in vacuum, it is possible that the throttle body port may be restricted and require cleaning.
