Front Bumper Reinforcement: Service and Repair

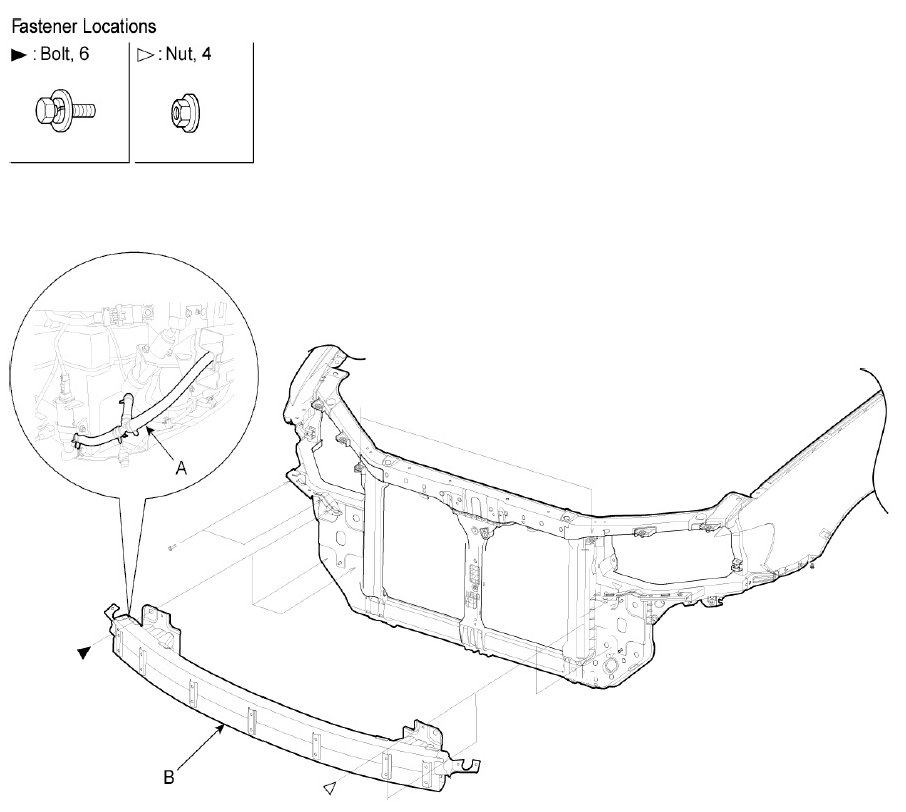

FRONT BUMPER RAIL REPLACEMENTNOTE: Remove the headlamp washer nozzle tube (A)
1.
Remove the front
bumper cover.
2.
Loosen the front
bumper rail mounting bolts and nuts.
3.
Remove front
bumper rail (B).
4.
Installation is the reverse of removal.
