Turn Signal Lamp: Service and Repair

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

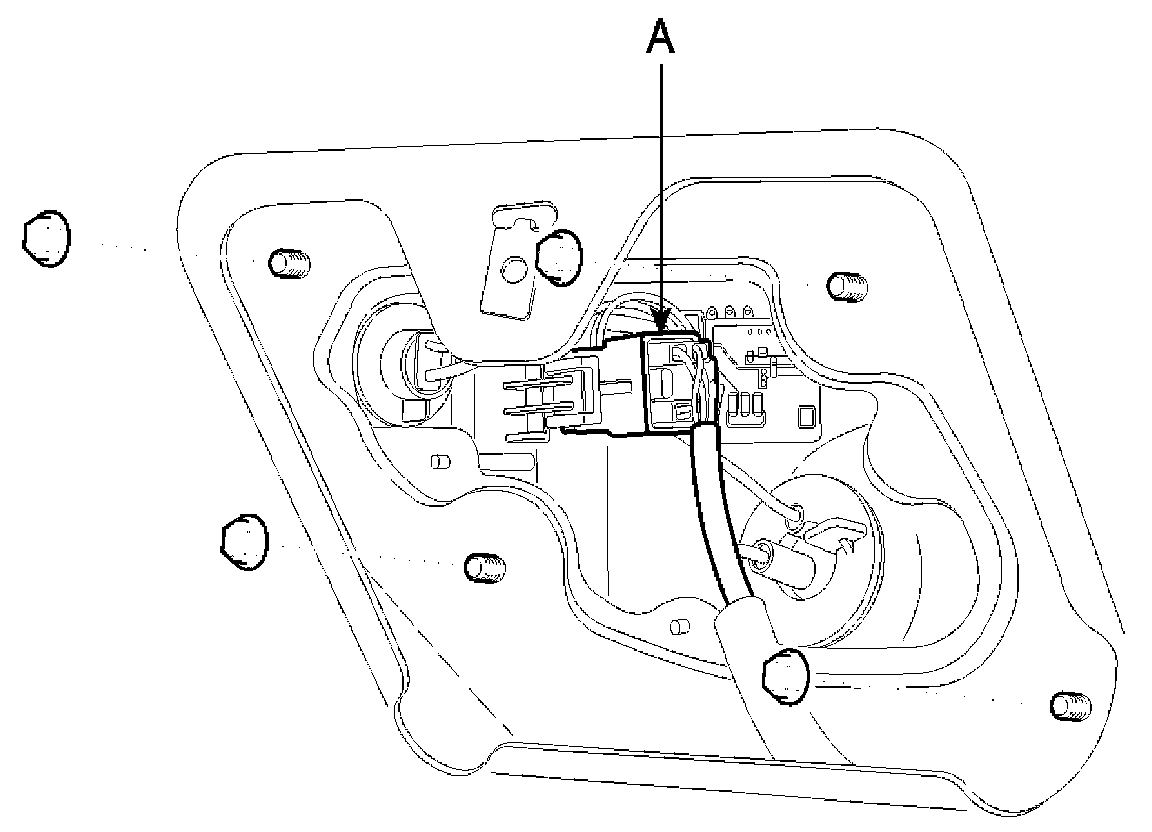

2. Loose the nuts holding the rear combination lamp then disconnect the 4P connector (A) then remove the outside rear combination lamp.

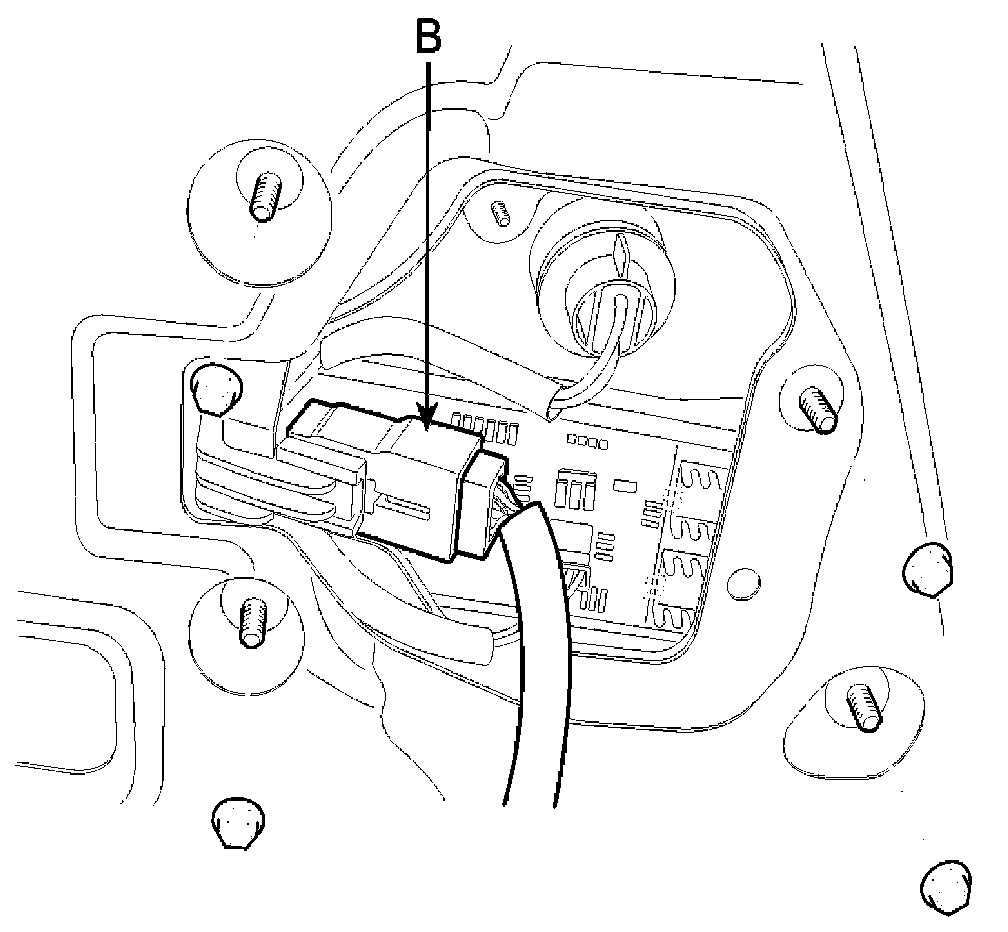

3. Loose the nuts holding the rear combination lamp then disconnect the 4P connector (B) then remove the inner rear combination lamp.
4. Remove the rear garnish after loosening 4 nuts.
5. Remove inner lamp assembly.
6. Installation is the reverse of removal.
