Fuel System - DTC P2065, P2066, P2067, P2068 Addition

Group: ELECTRICAL

Number: 06-90-019

Date: JULY, 2006

Model:
AZERA

Subject:
2006 AZERA SHOP MANUAL - DUAL FUEL LEVEL SENDER SYSTEM - DTC P2065, P2066, P2067, P2068

DESCRIPTION

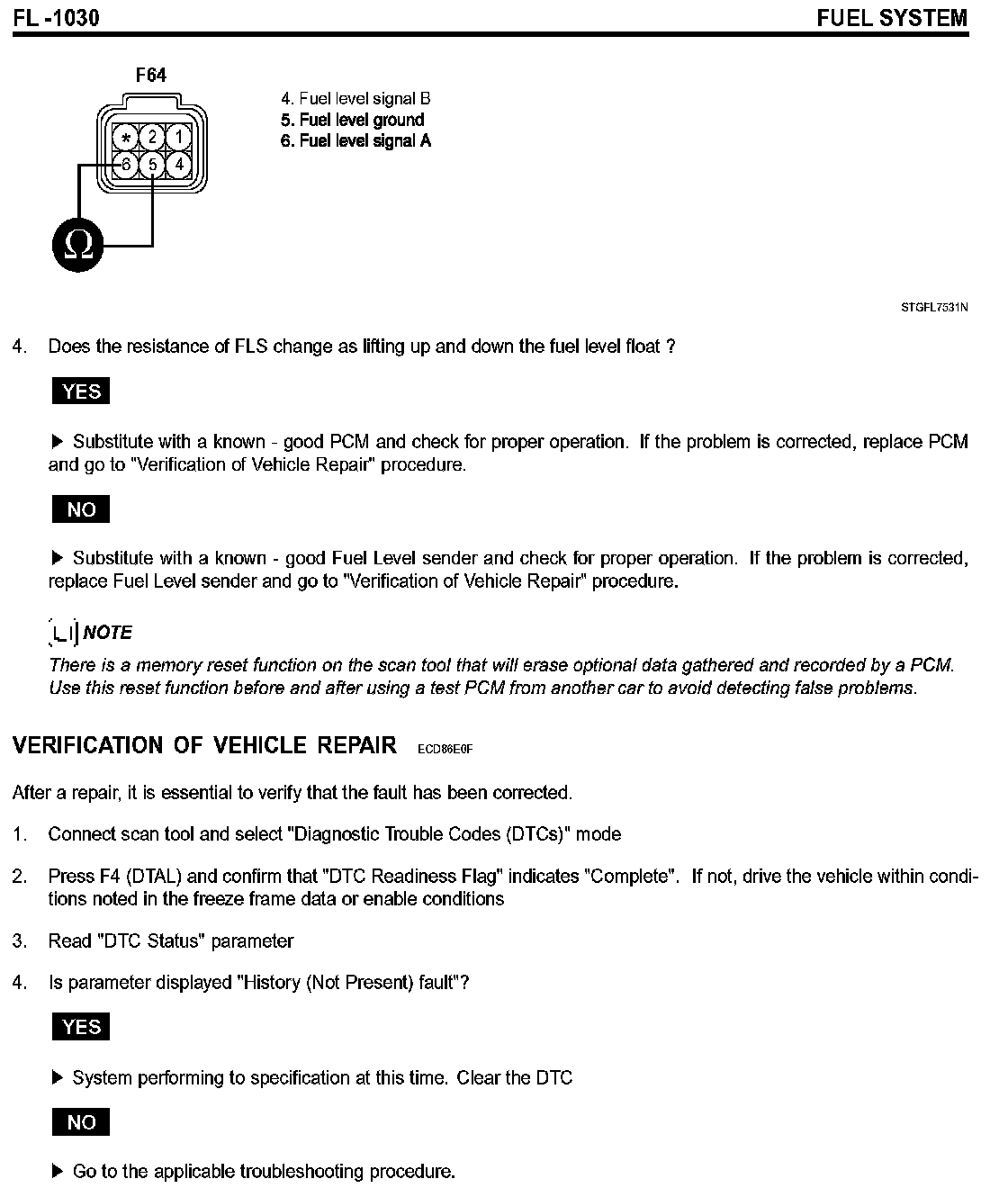

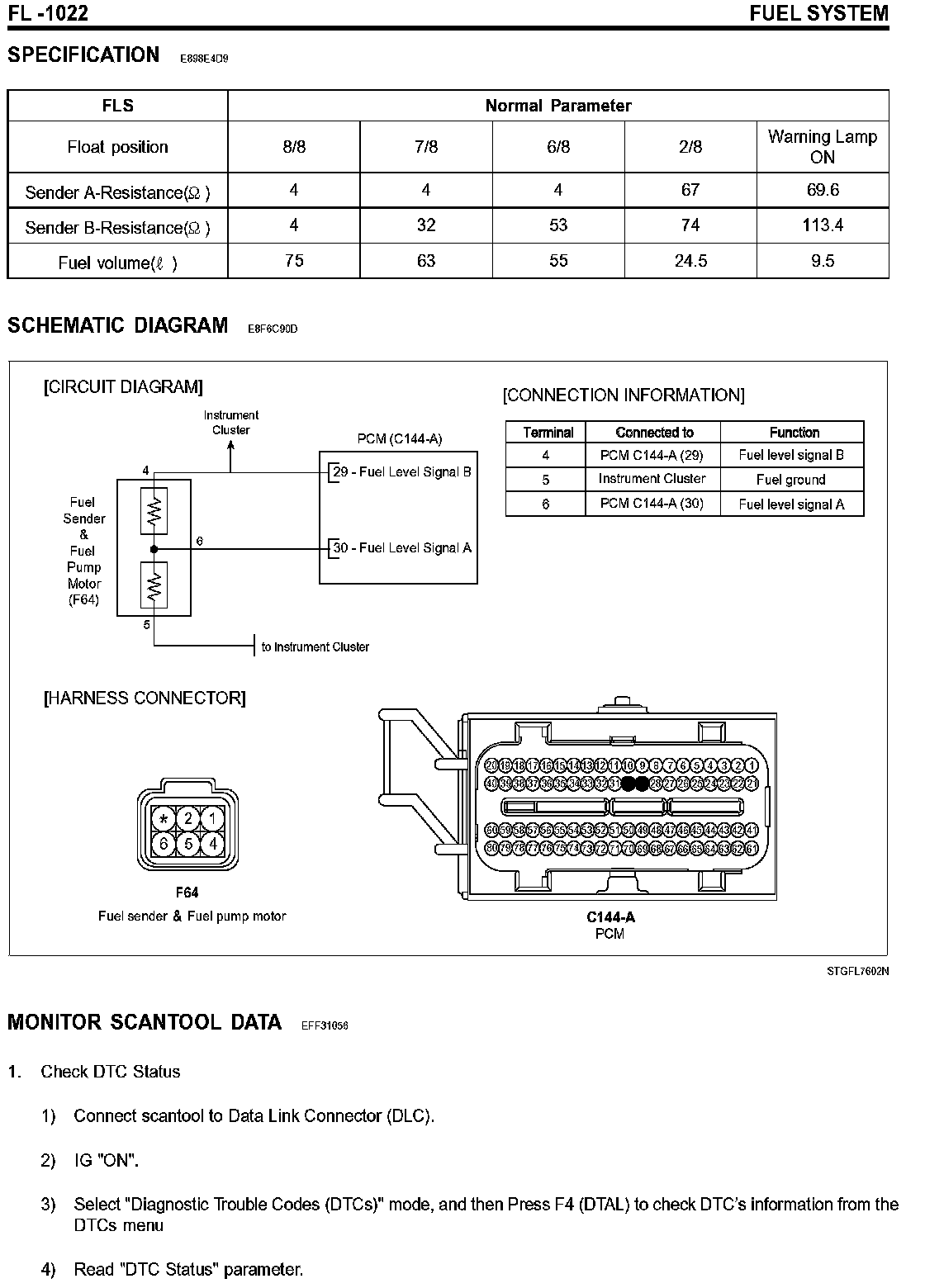

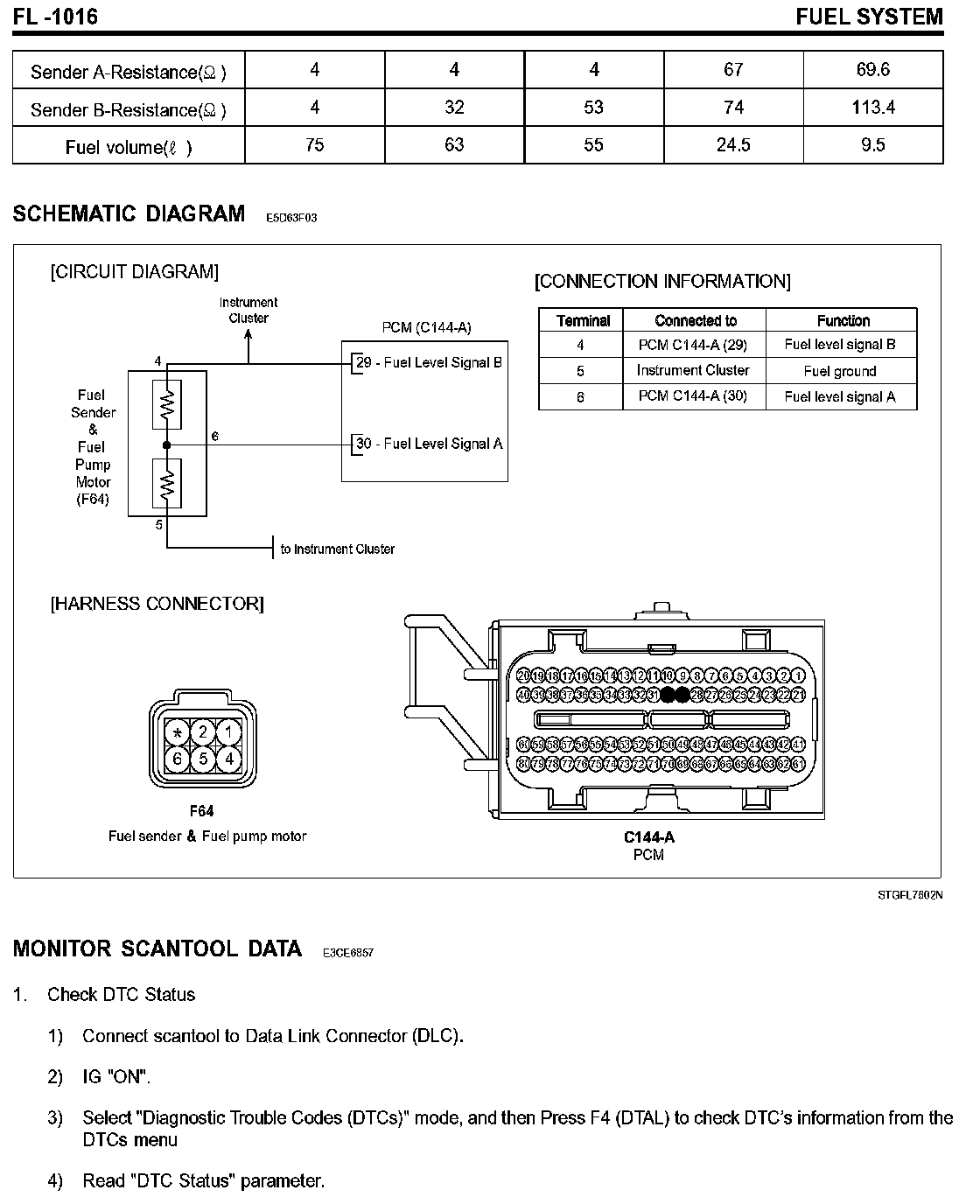

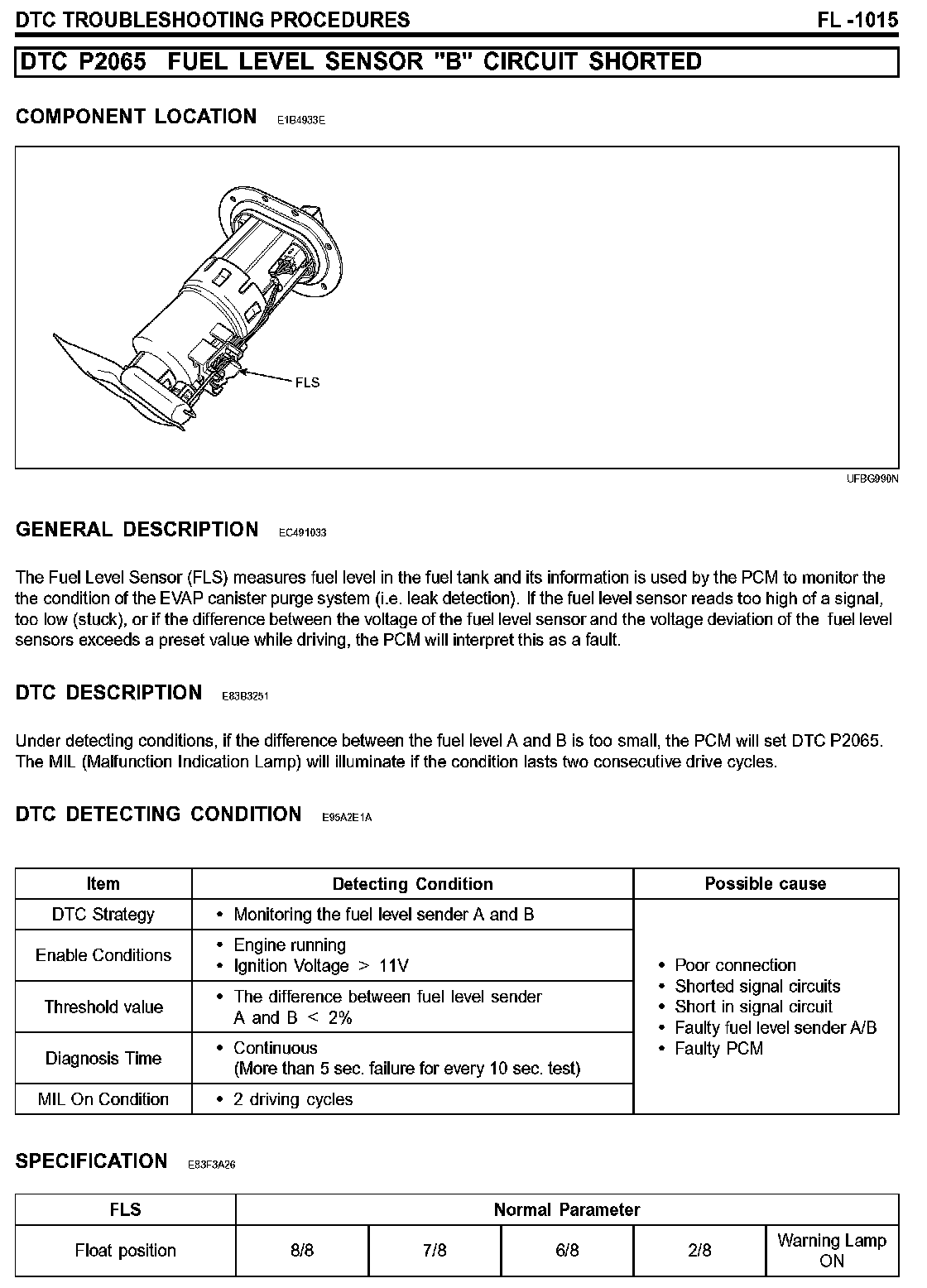

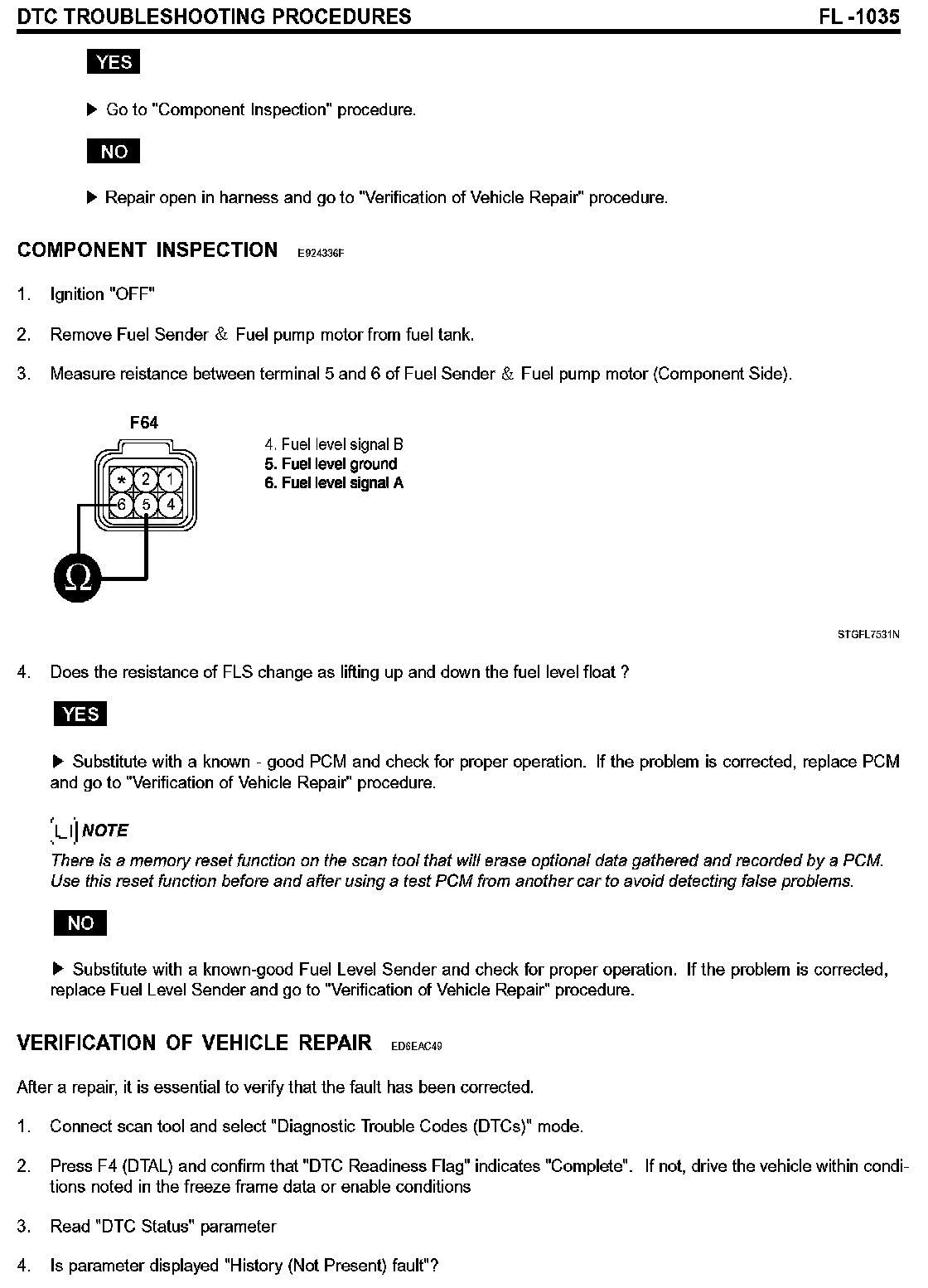

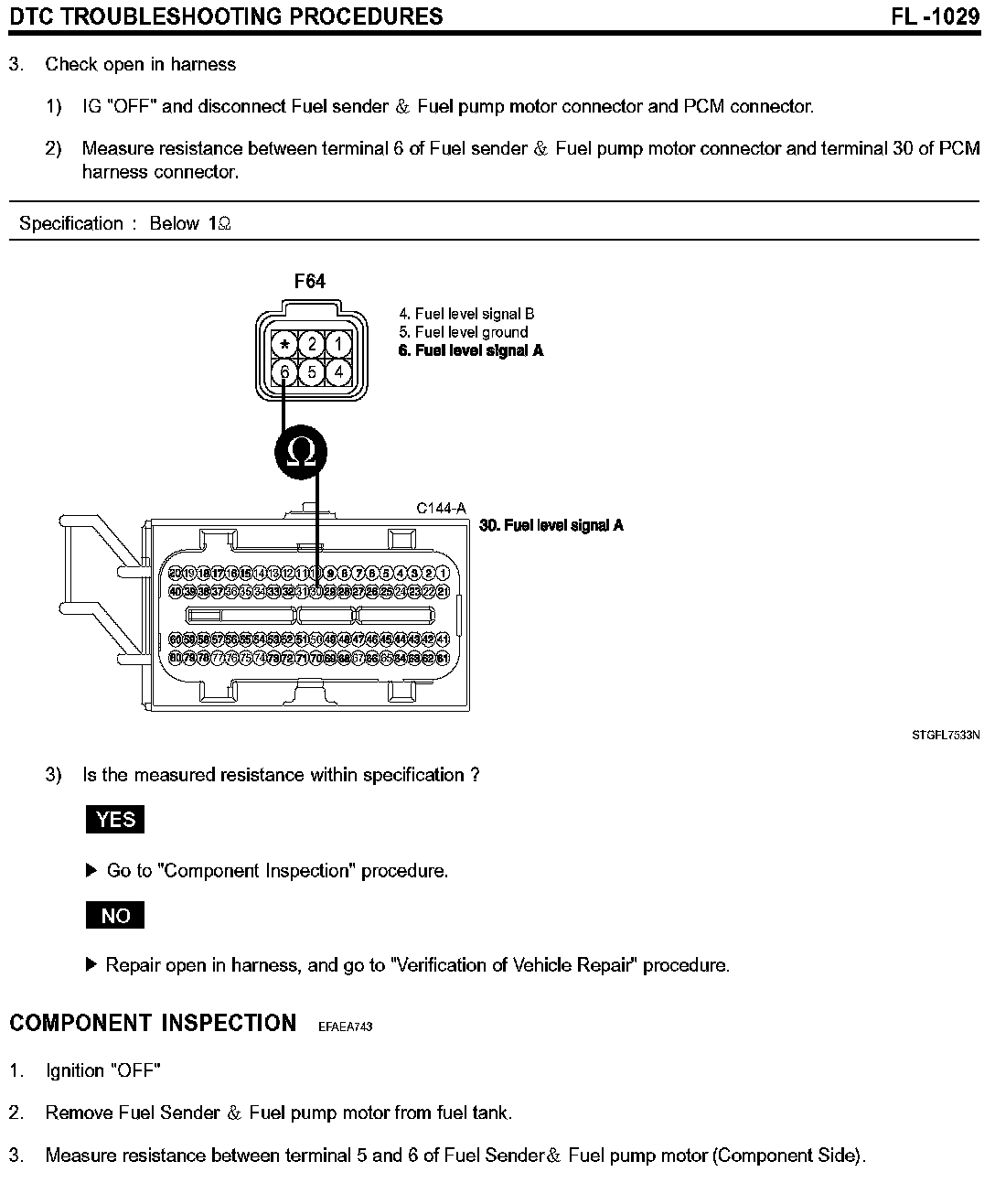

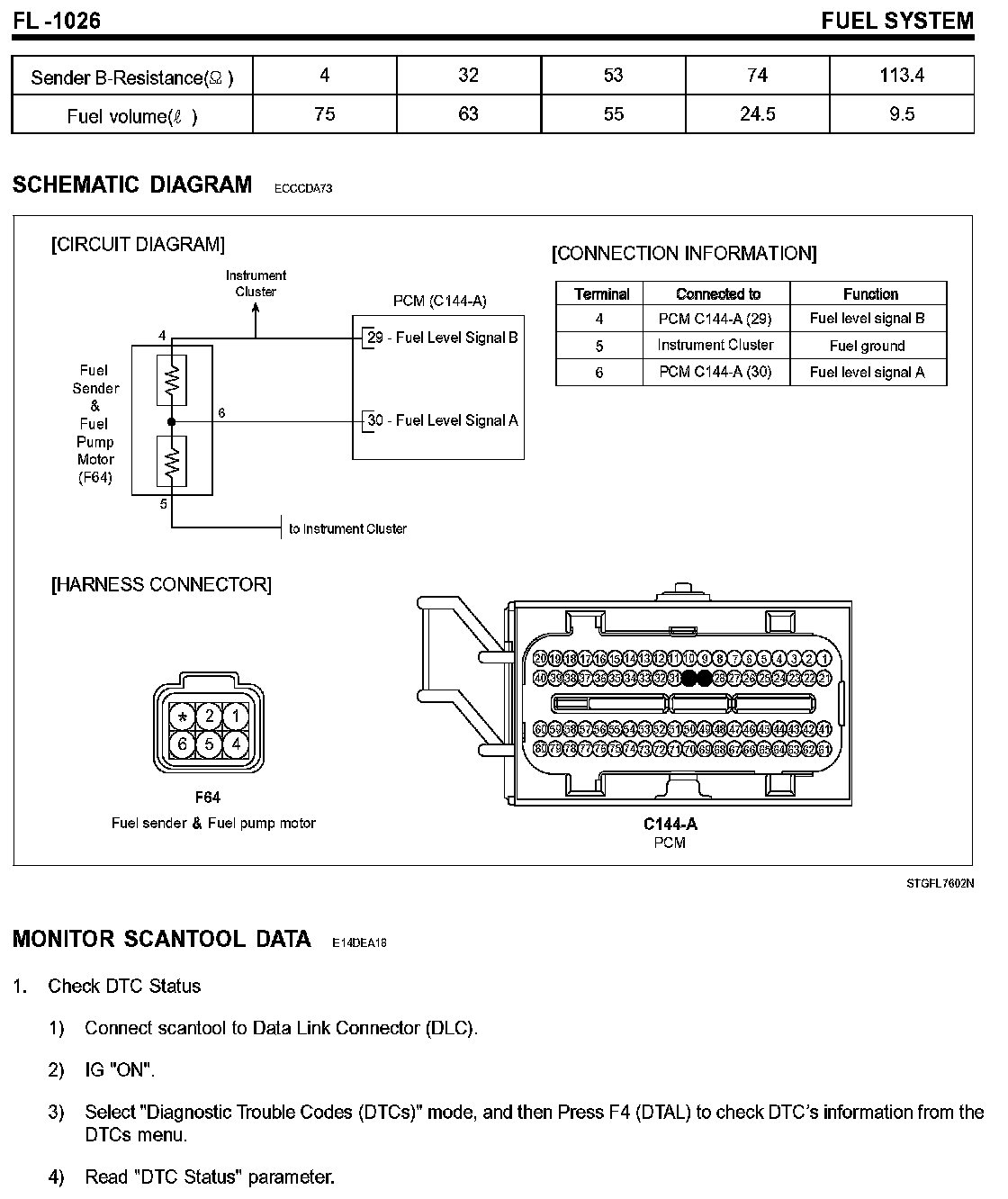

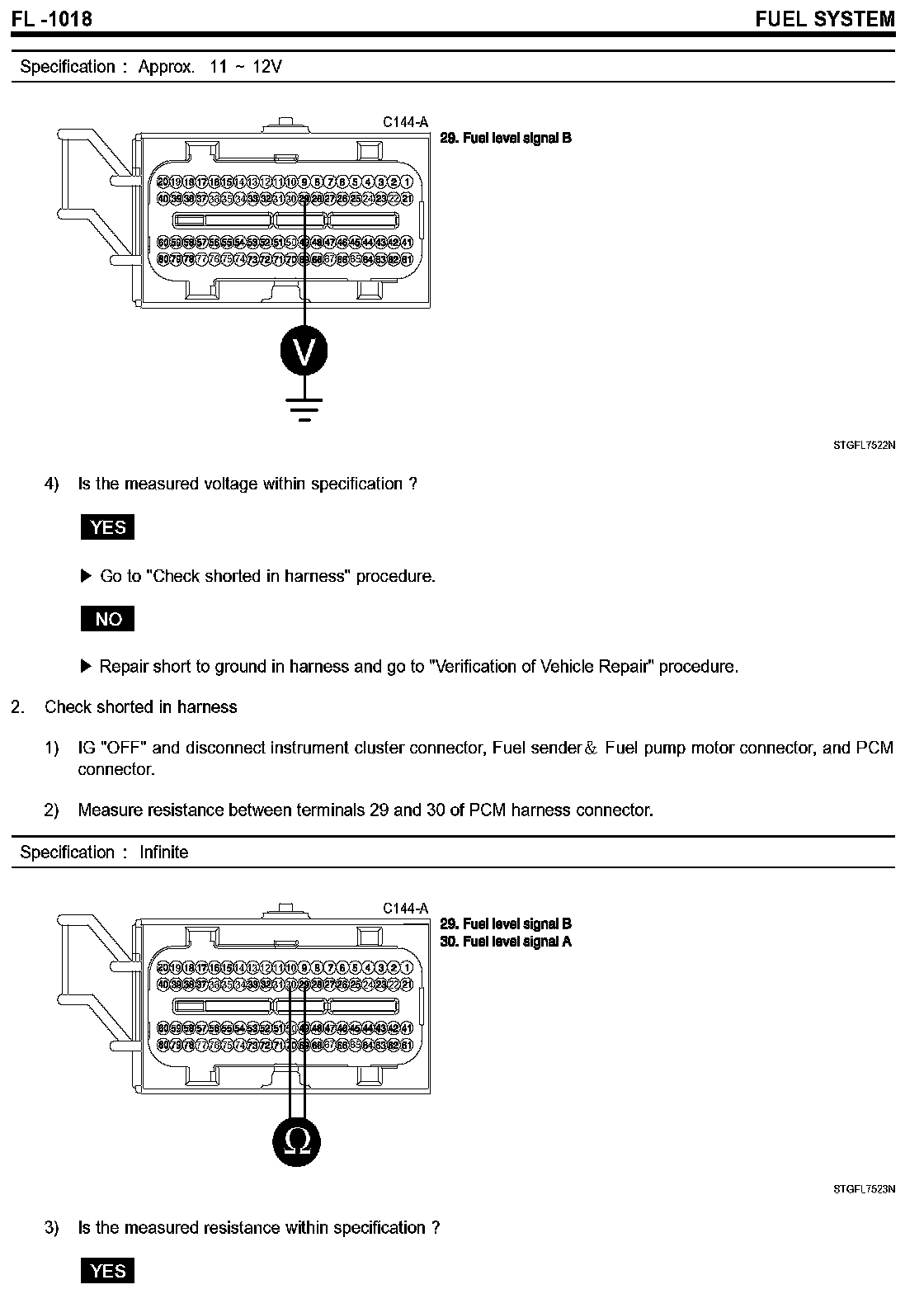

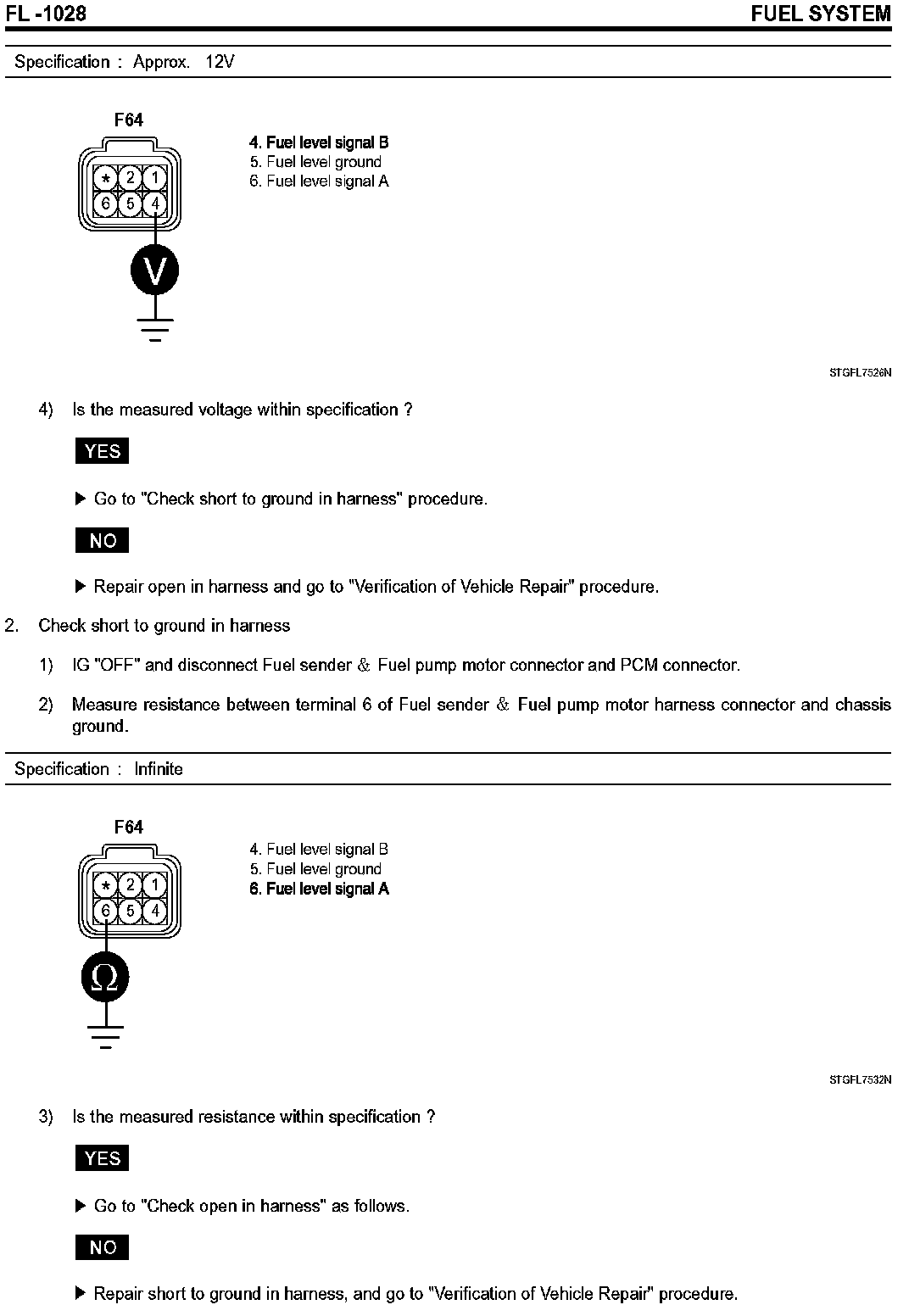

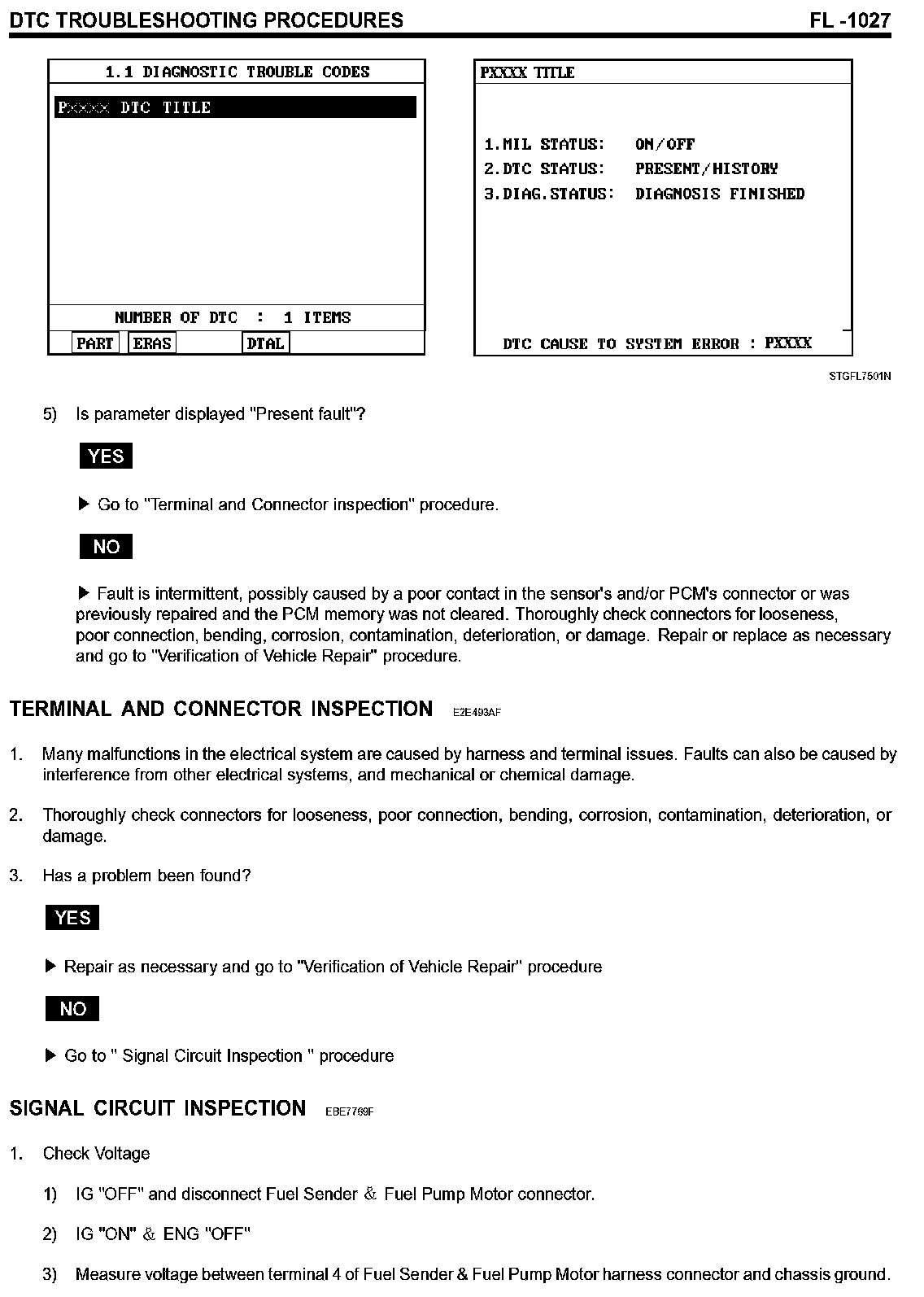

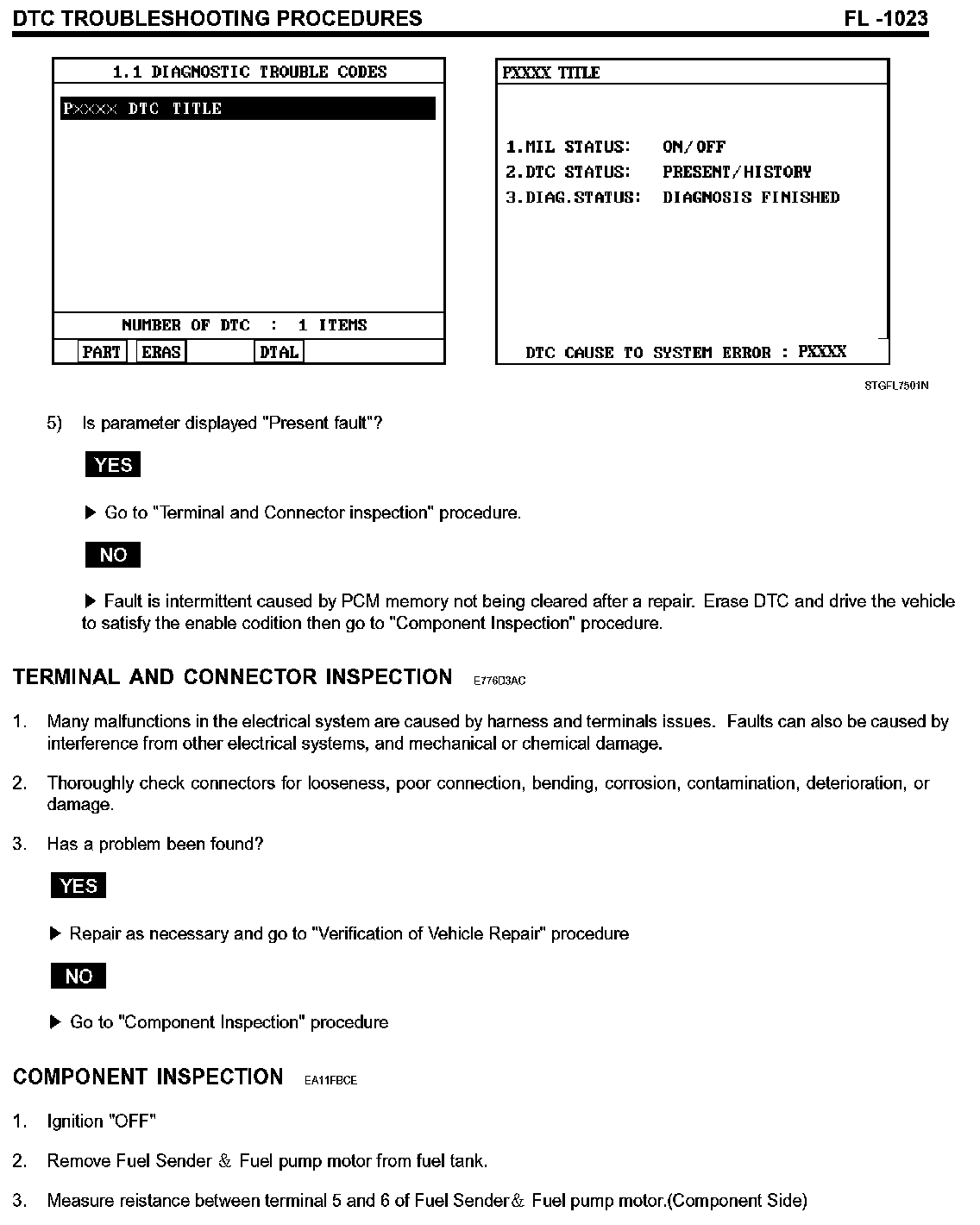

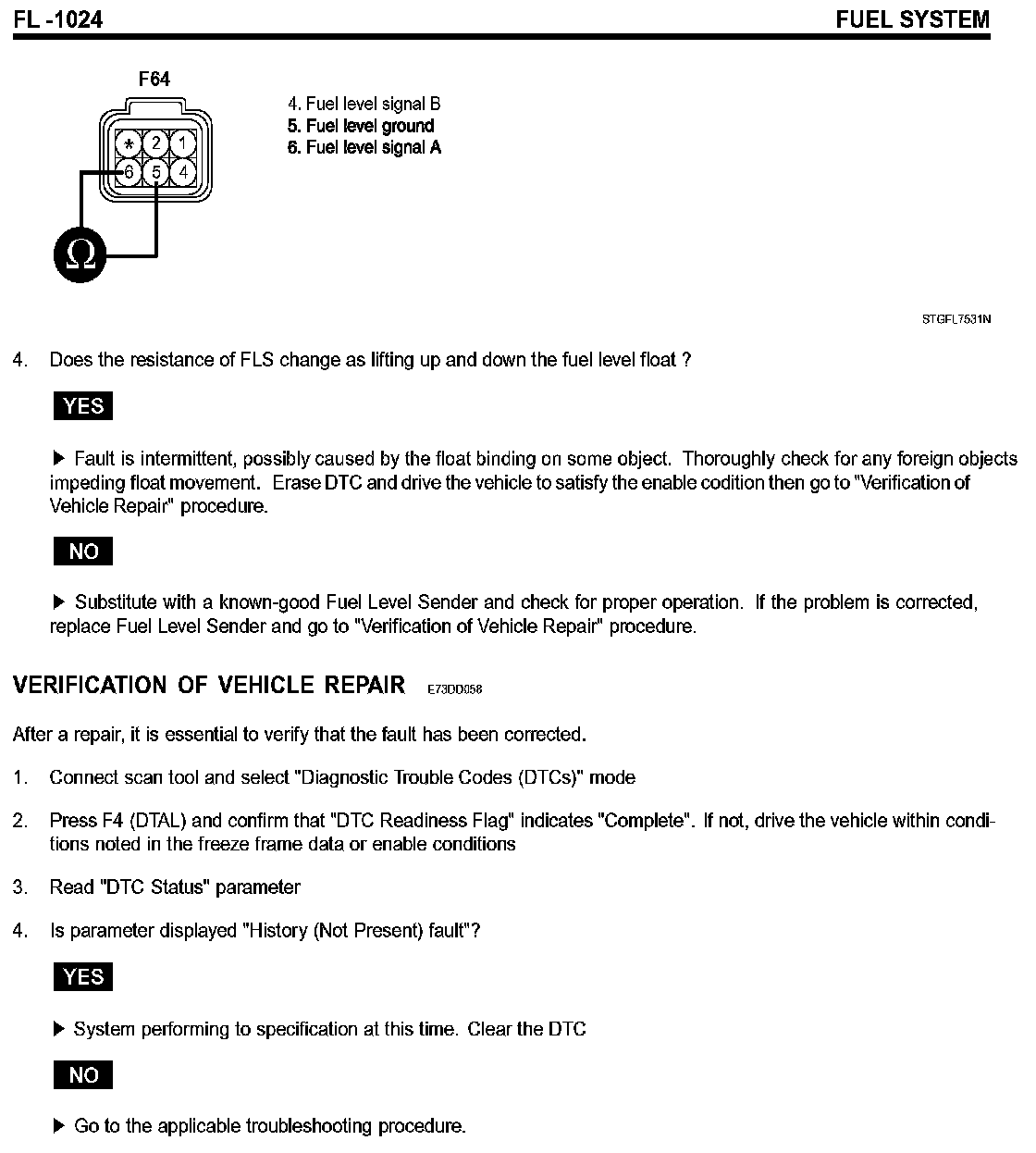

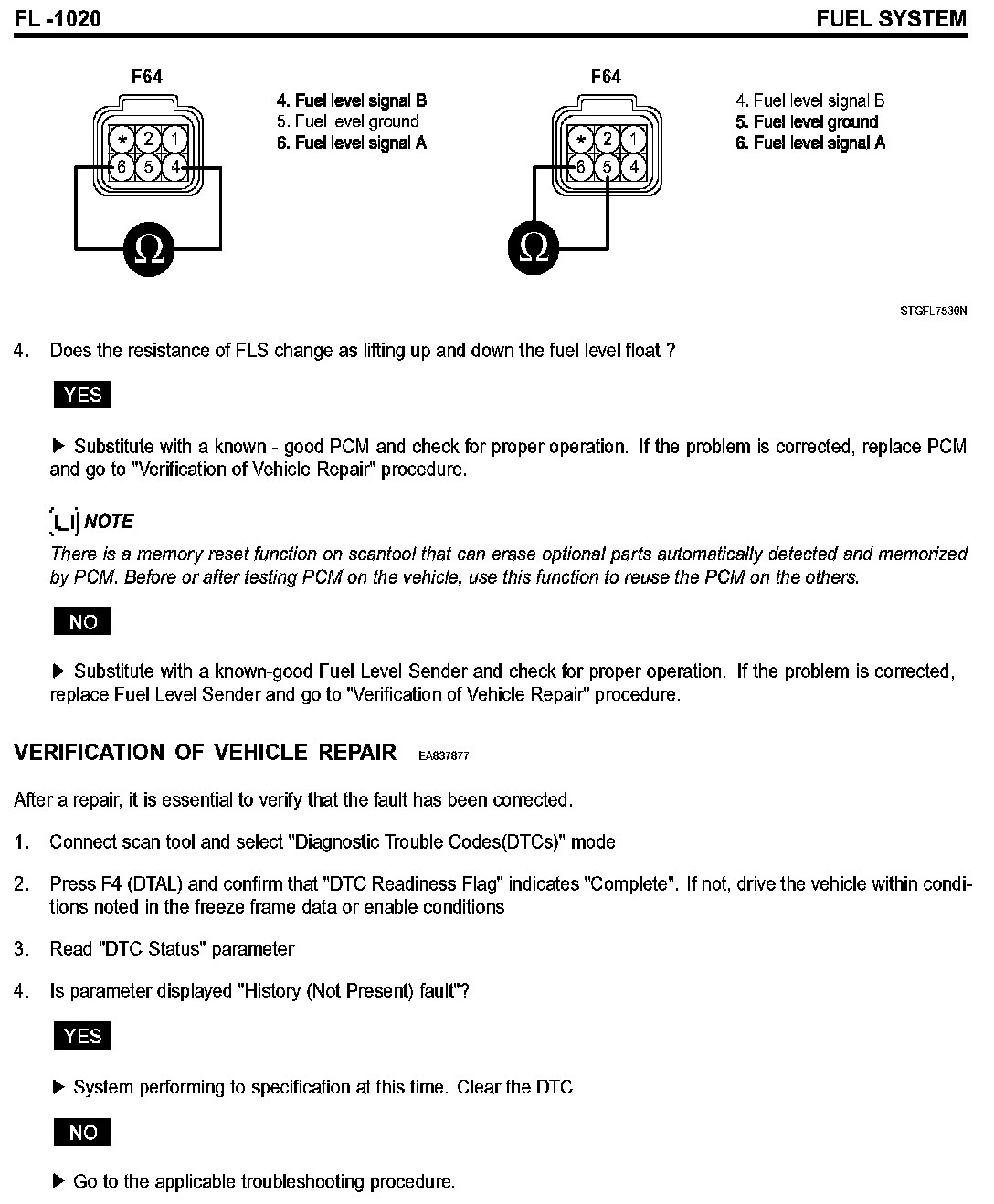

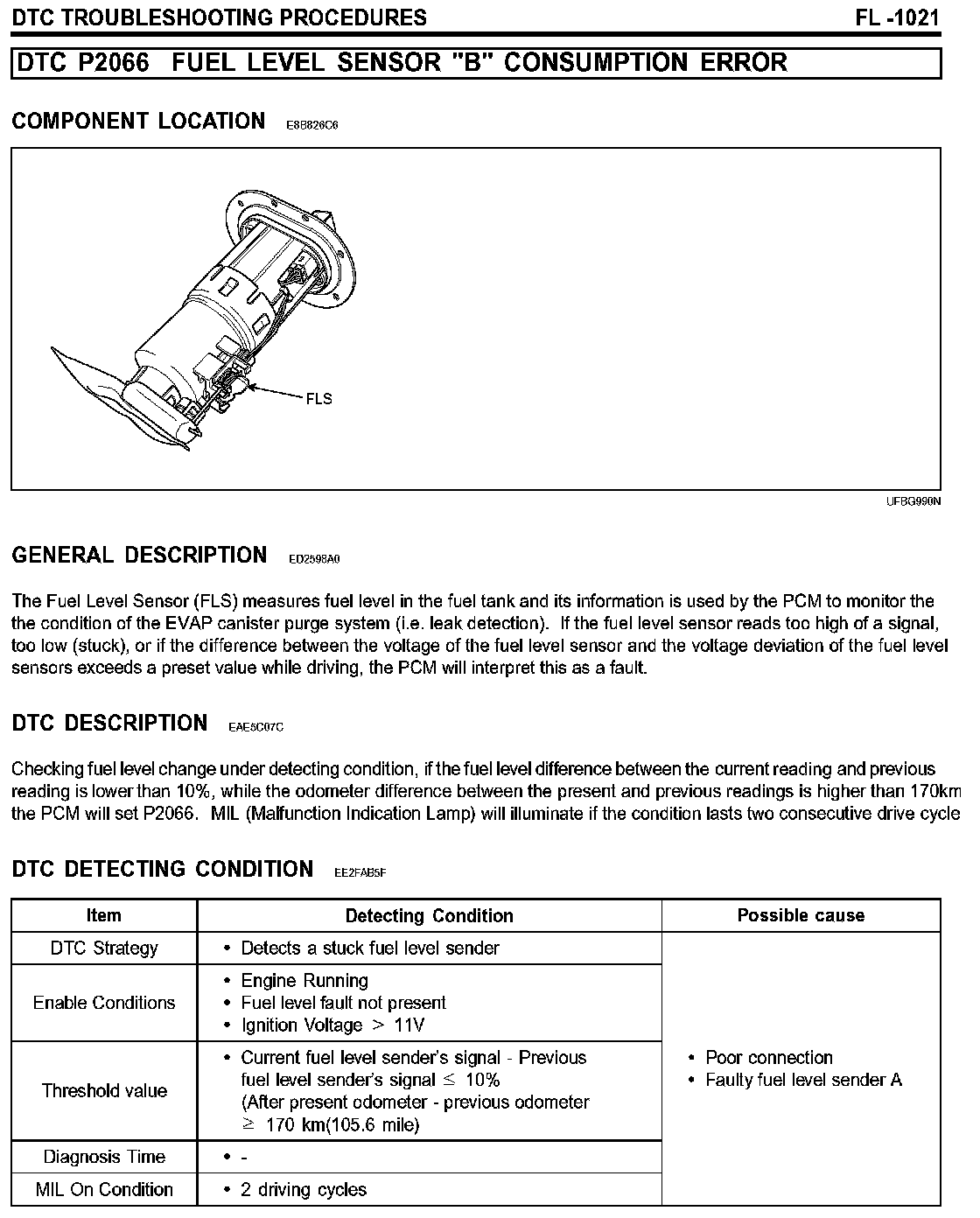

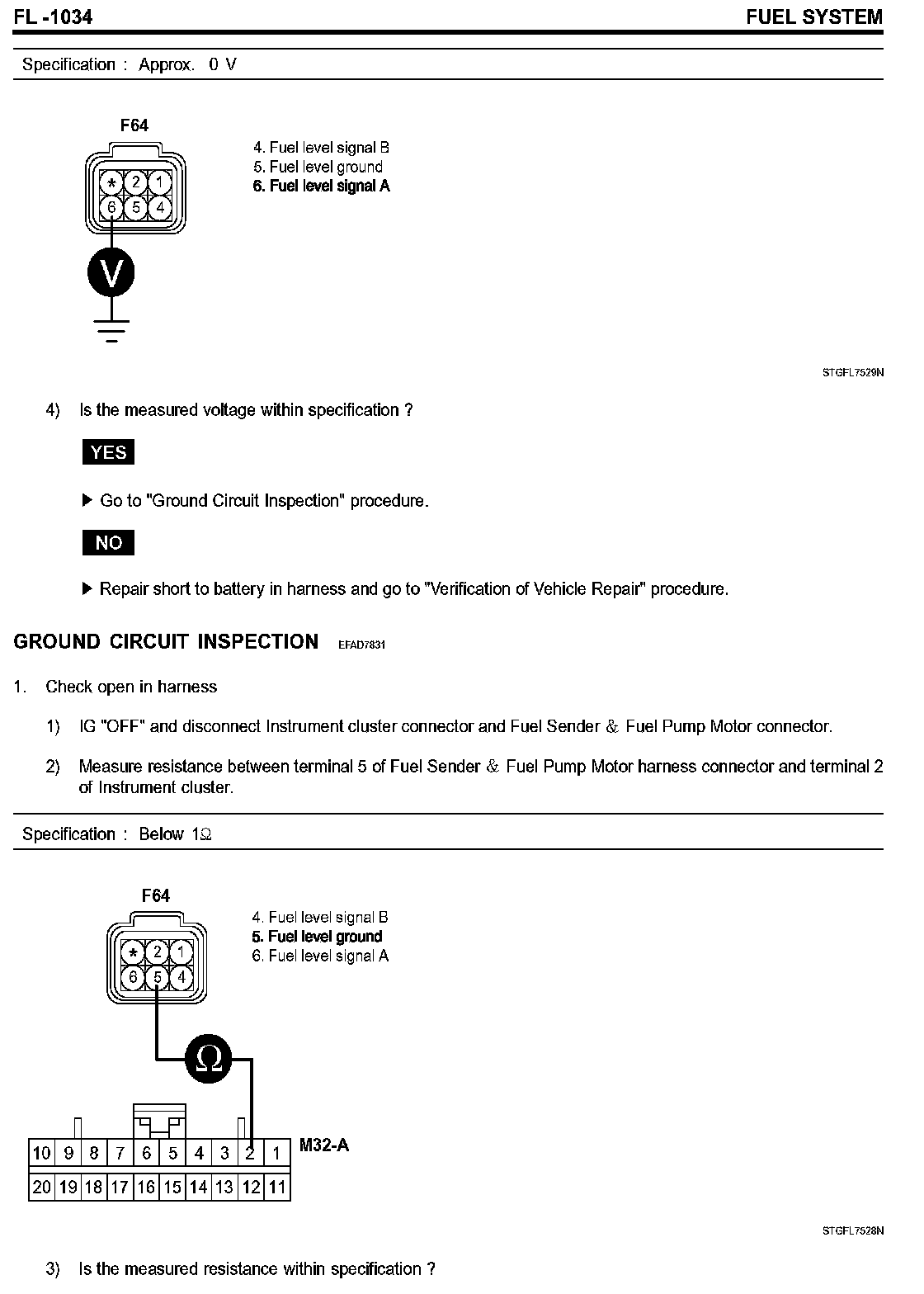

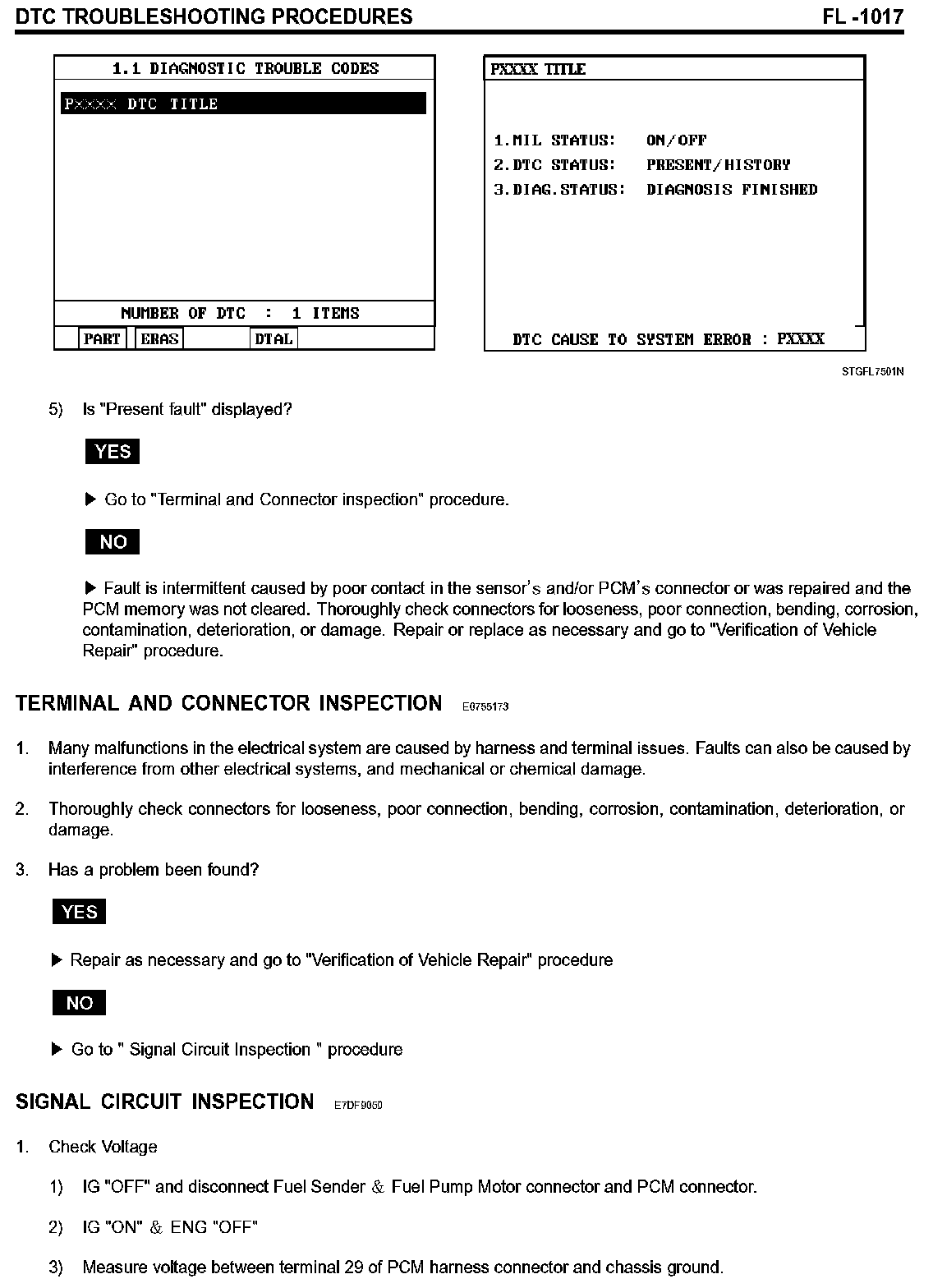

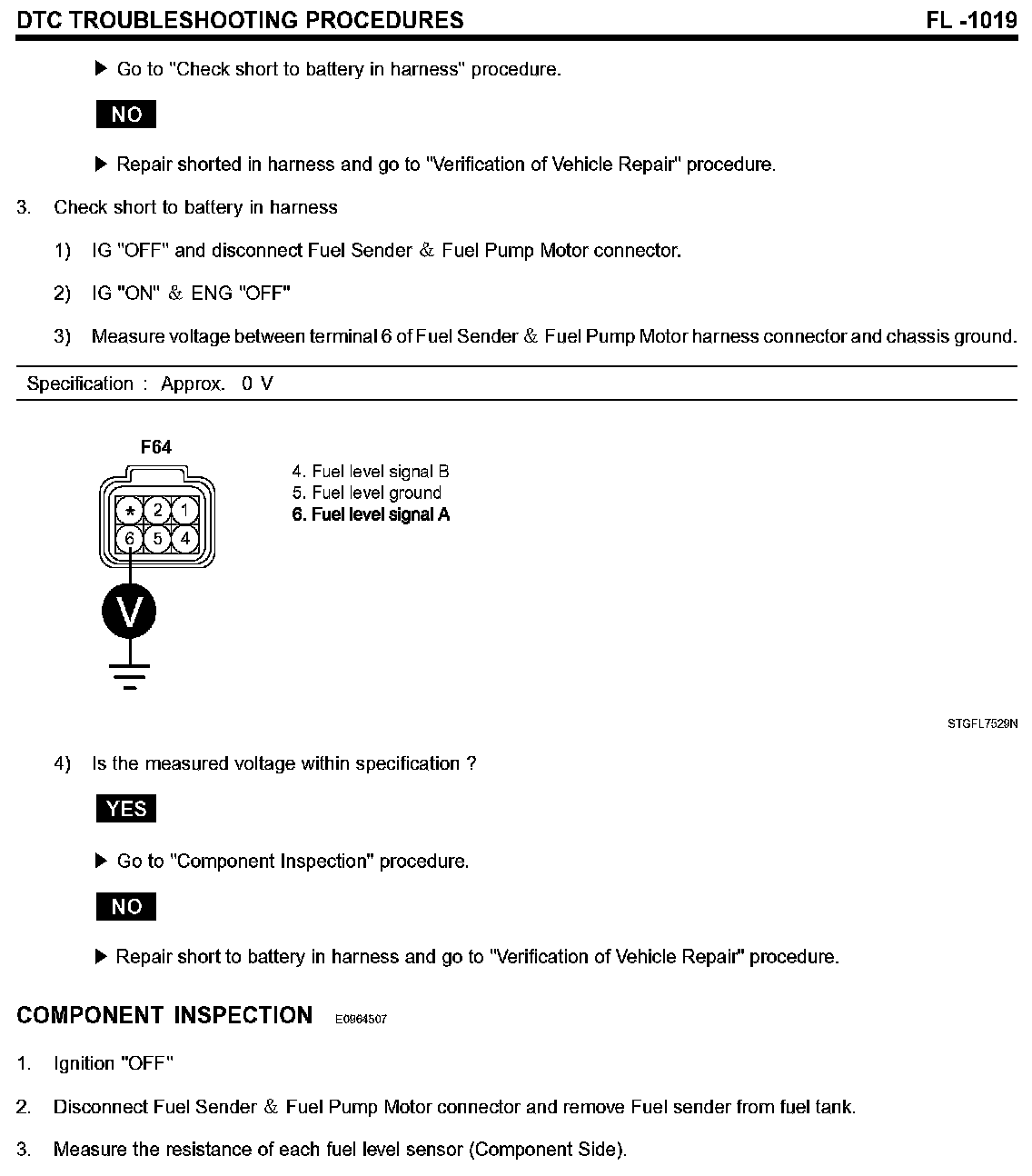

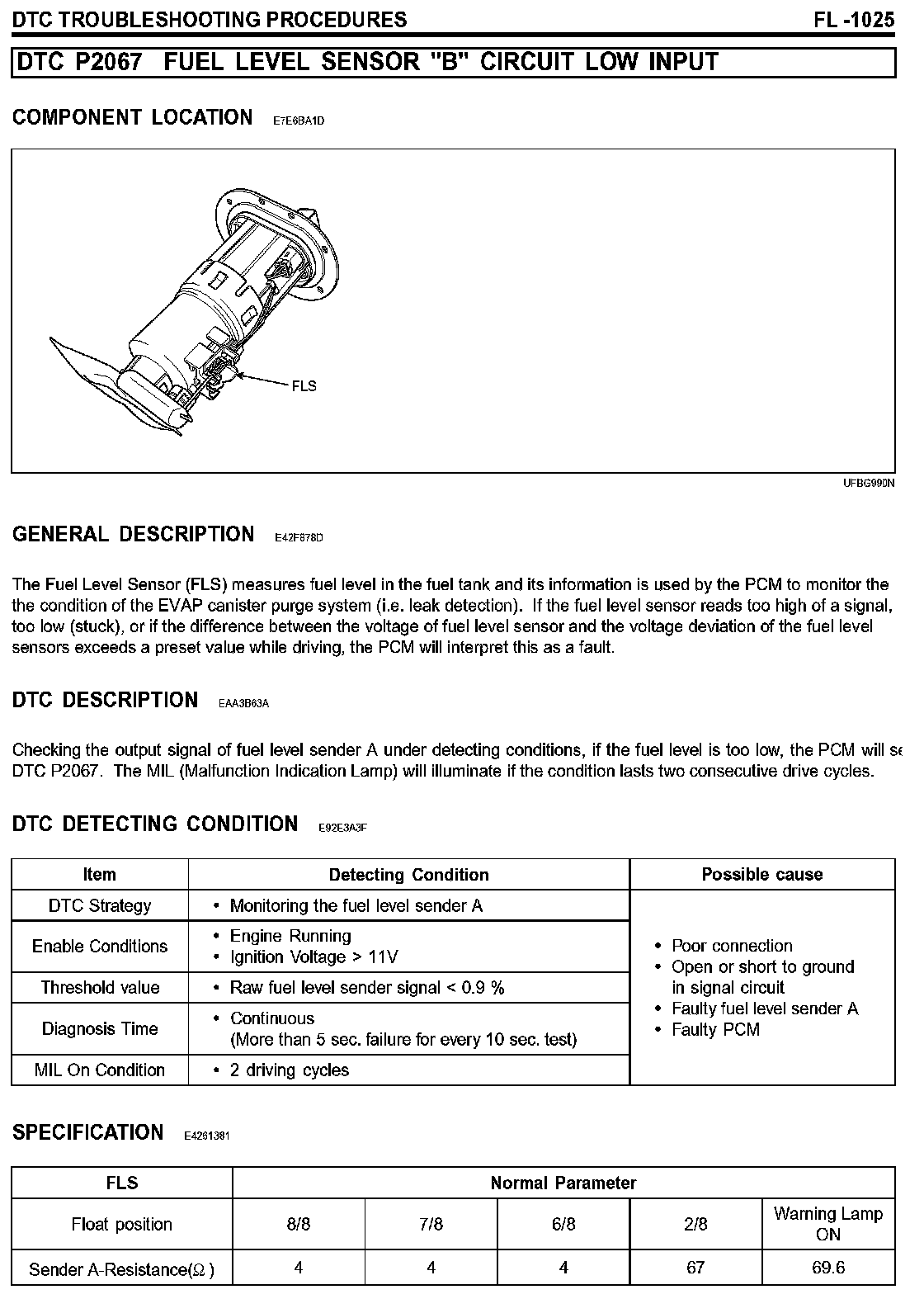

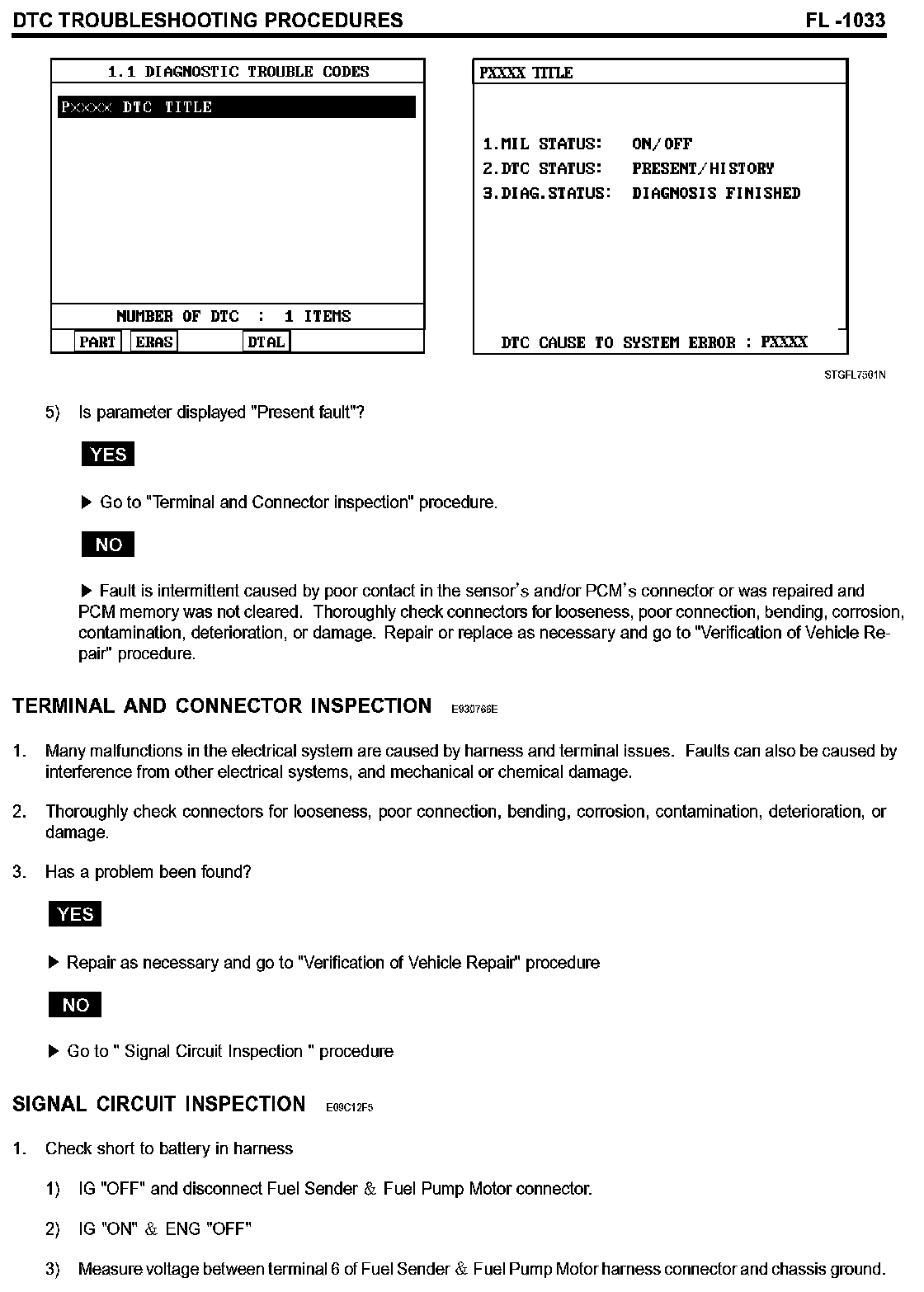

The dual fuel level sender diagnostic trouble codes P2065, P2066, P2067, and P2068 were inadvertently omitted from the 2006 Azera Shop manual. Each code's related set criteria and diagnostic procedure is provided below.




















P2065 - FUEL LEVEL SENSOR "B" CIRCUIT SHORTED














P2066 - FUEL LEVEL SENSOR "B" CONSUMPTION ERROR




















P2067 - FUEL LEVEL SENSOR "B" CIRCUIT LOW INPUT




















P2068 - FUEL LEVEL SENSOR "B" CIRCUIT HIGH INPUT





Affected Shop Manual

PROCEDURE

Please refer to the Shop Manual Pages shown above when servicing is necessary.

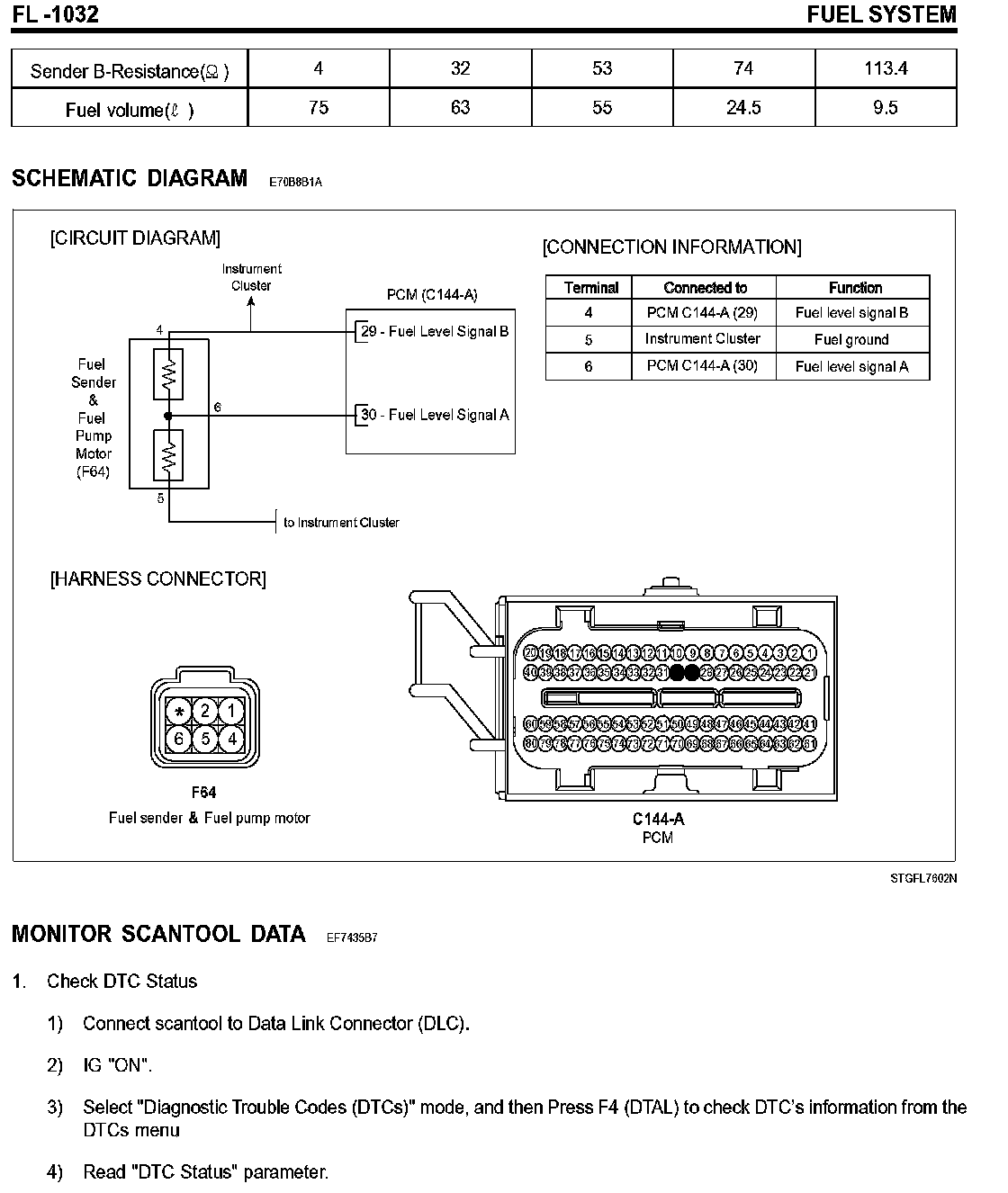

Additional wiring schematic information for the dual fuel level sender system can be obtained from TSB 06-90-018.

WARRANTY INFORMATION

This TSB is a Shop Manual supplement and is provided for information only. Normal warranty applies.
