Body - Remote Trunk Release Operation

Group:
ELECTRICAL

Number:
06-90-002

Date:
JANUARY, 2006

Model:
AZERA

Subject:
TRUNK LID CONTROL BUTTON IN GLOVE BOX

DESCRIPTION:

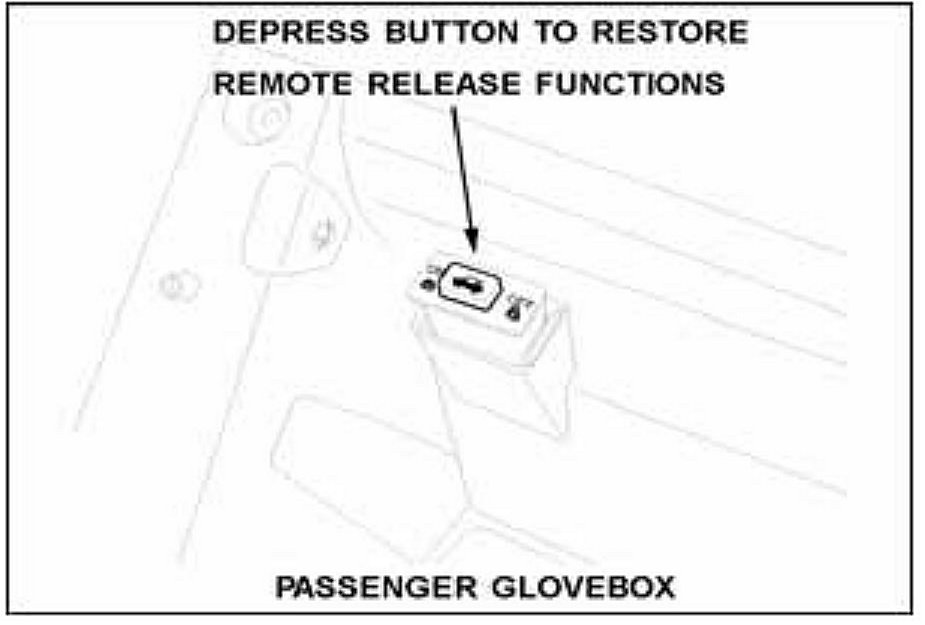

The Azera is equipped with a Trunk Lid Control Button. The button is located in the glove box. When the button is in the "OFF" position, the trunk cannot be opened from the door-mounted trunk release lever or remote transmitter. For security purposes, when this switch is in the "OFF" position, only the master key will open the trunk.

If you are diagnosing a vehicle with an inoperative trunk release lever or inoperative remote transmitter trunk button, verify the Trunk Lid Control Button is in the "ON" position.

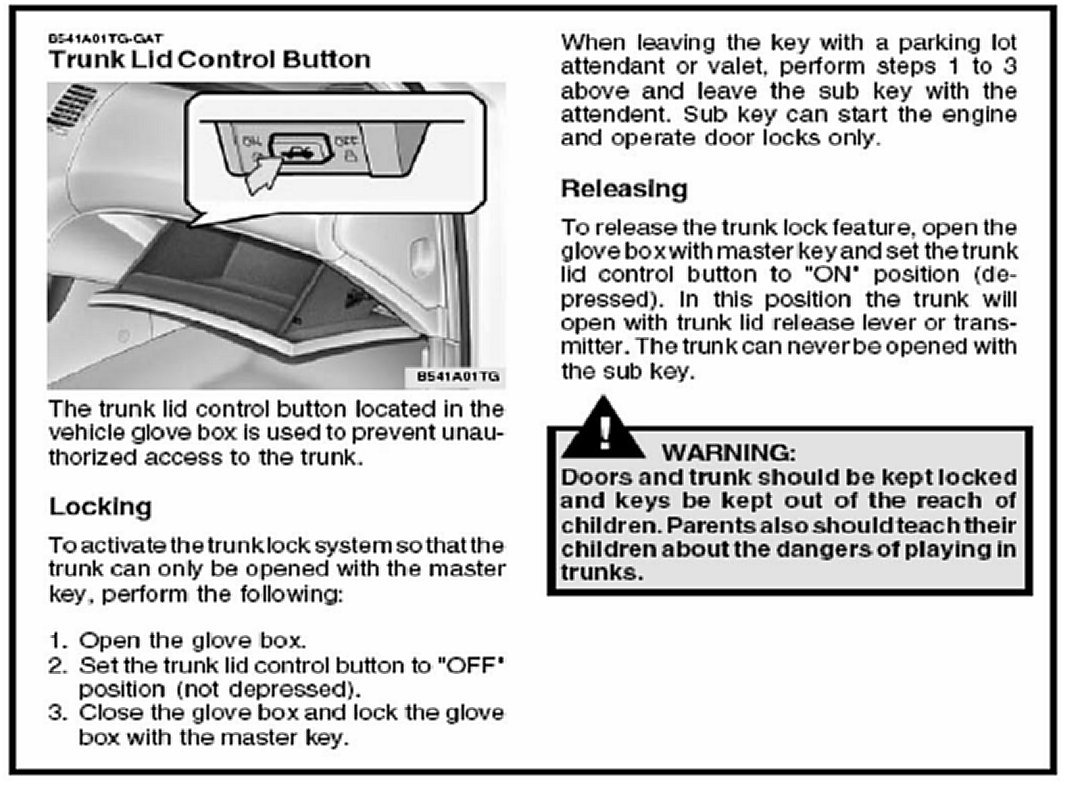

Additional information on the main trunk lid switch operation can be found in the Owner's Manual, Shop Manual, and the Quick Reference Guide.
