Removal and Replacement

Automatic Transaxle Control System

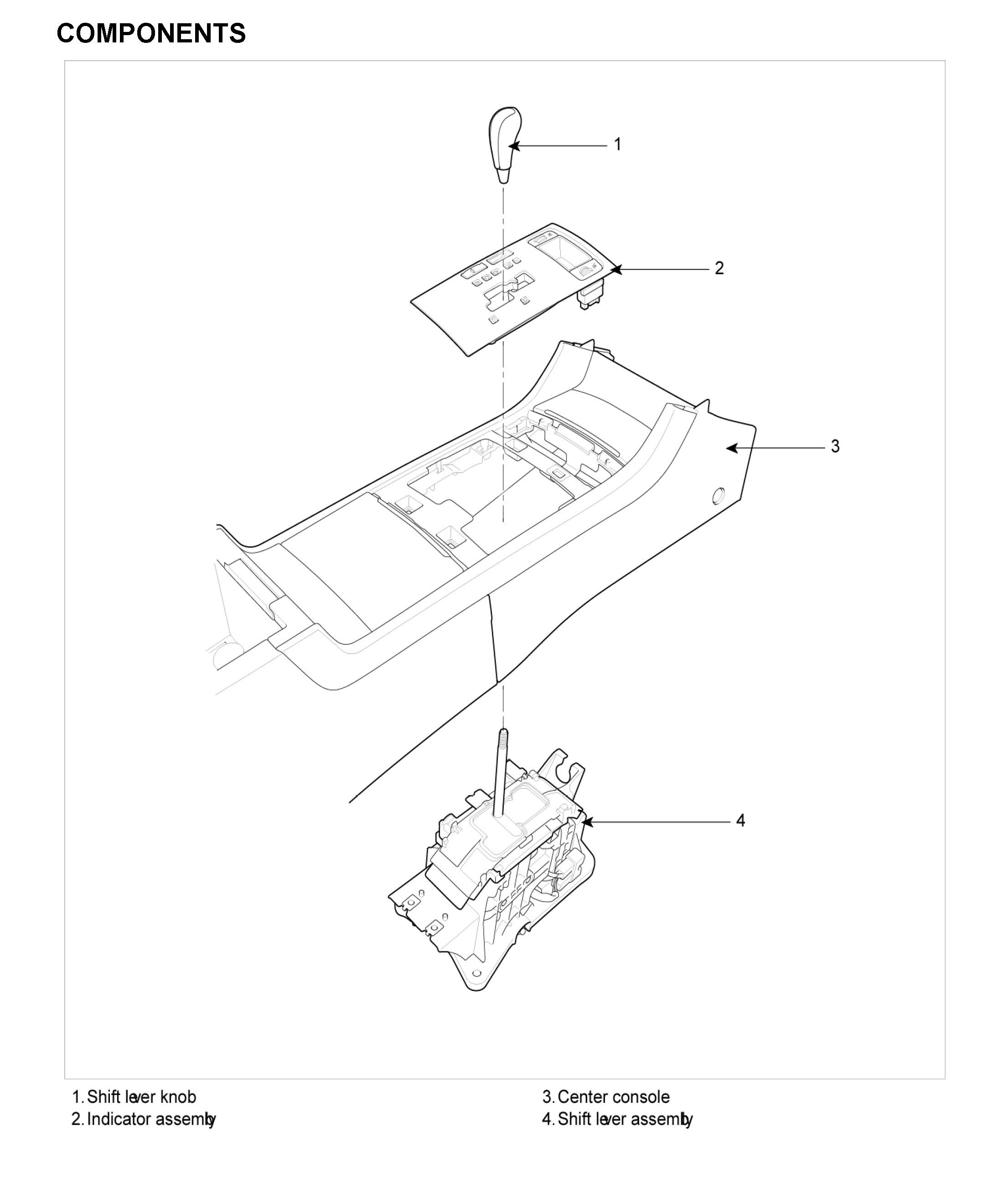

COMPONENTS:





REMOVAL

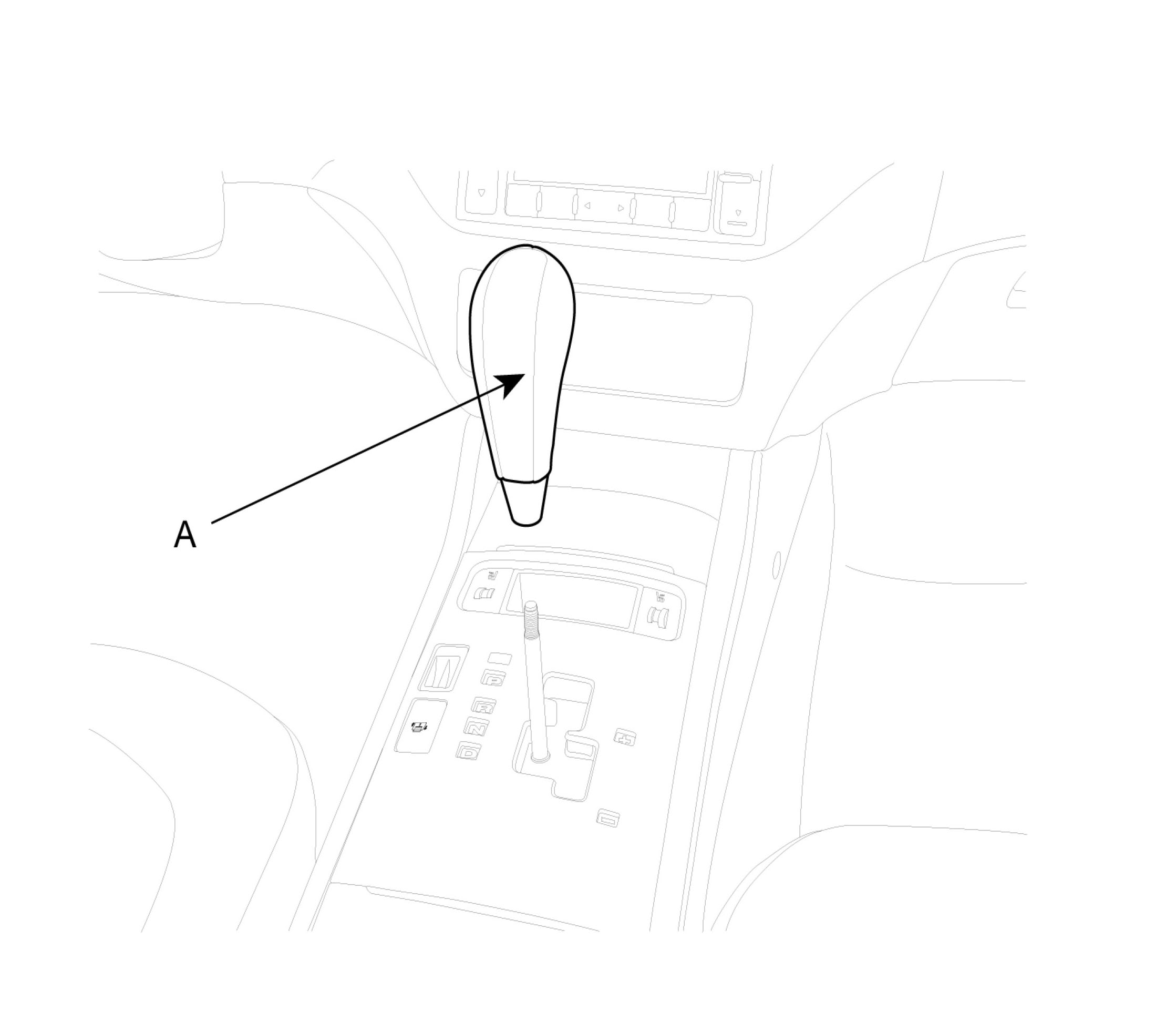

1. Remove the shift lever knob (A).

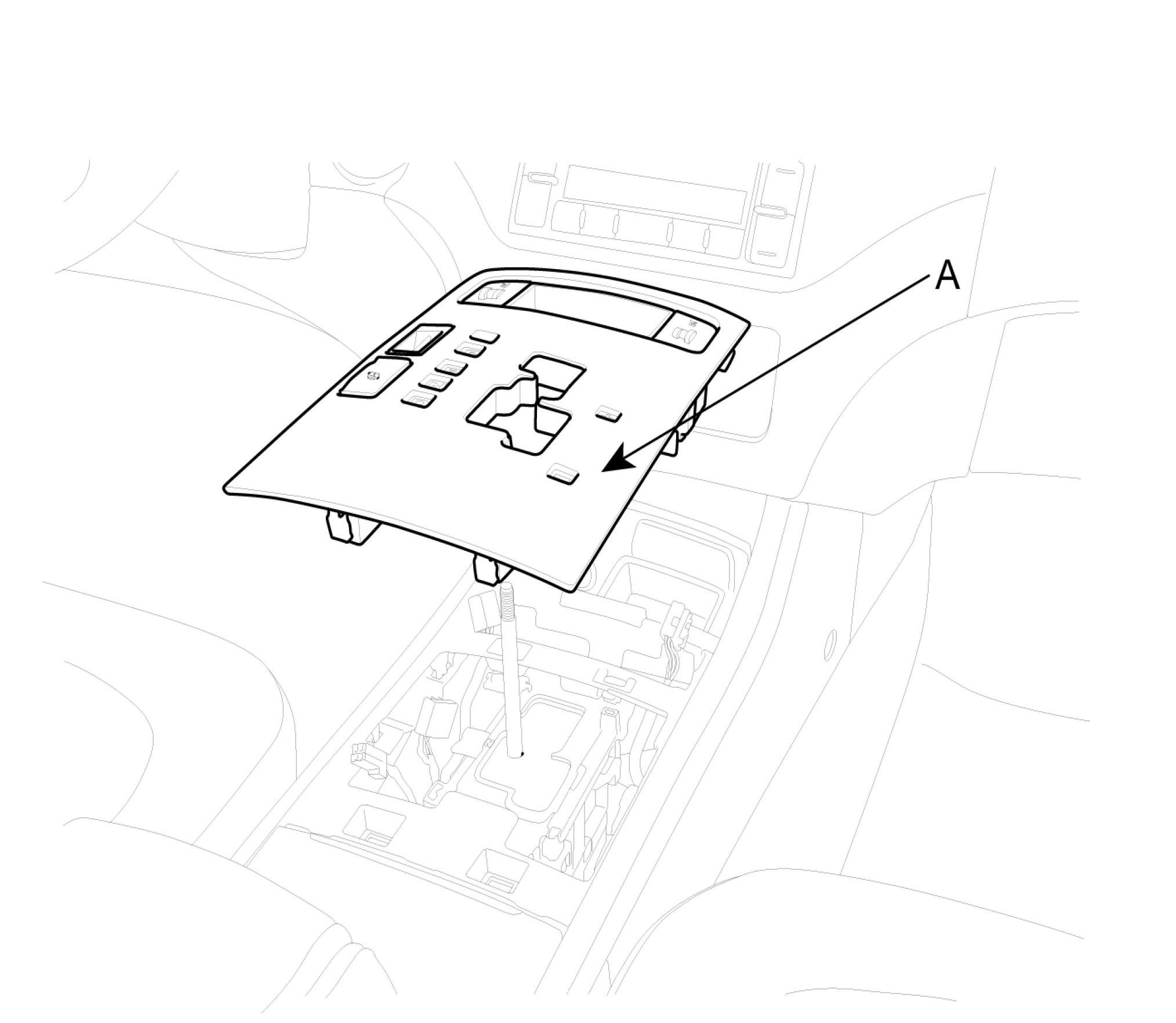

2. Remove the indicator assembly (A).

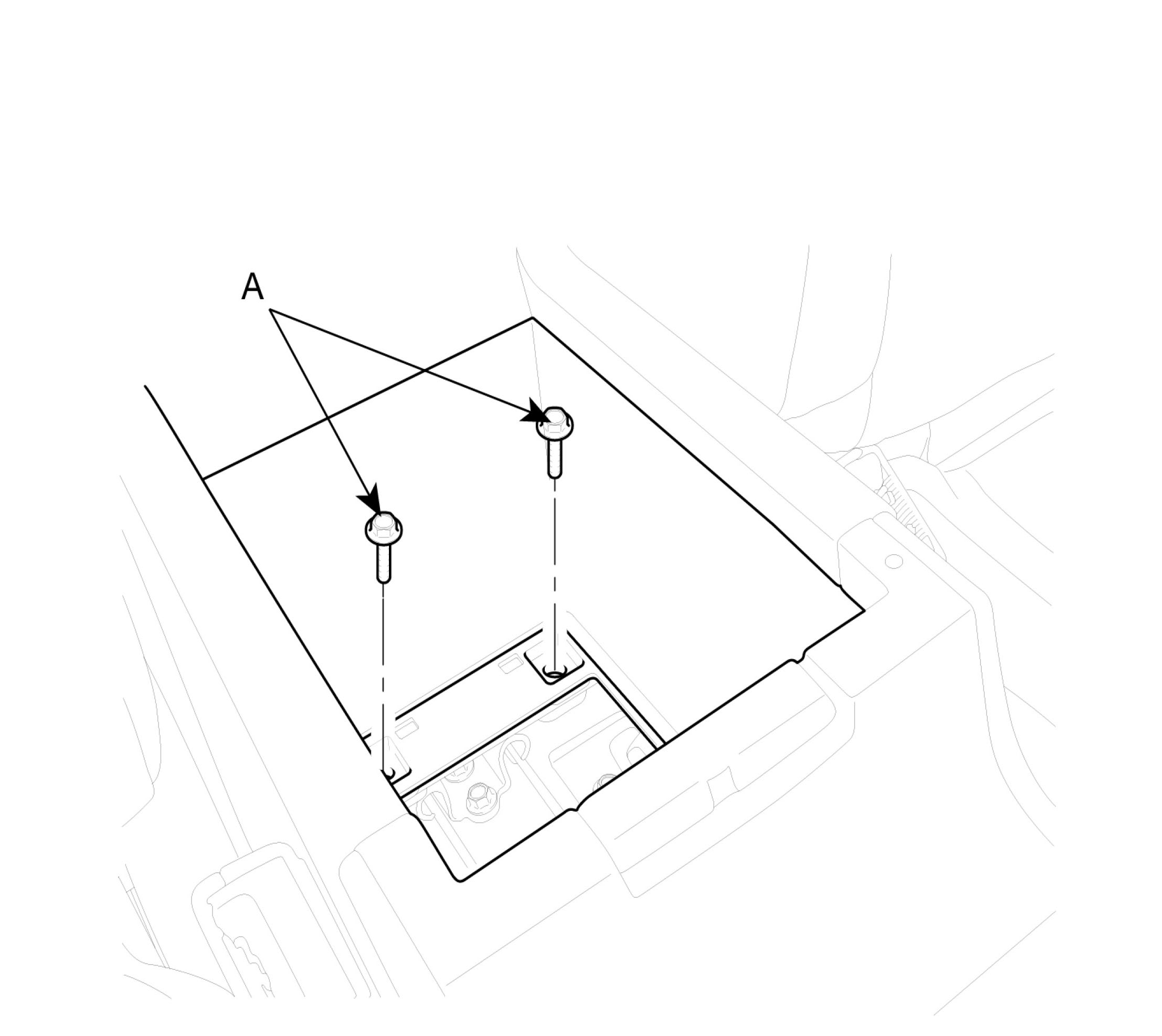

3. Remove the two bolts (A) in the console box.

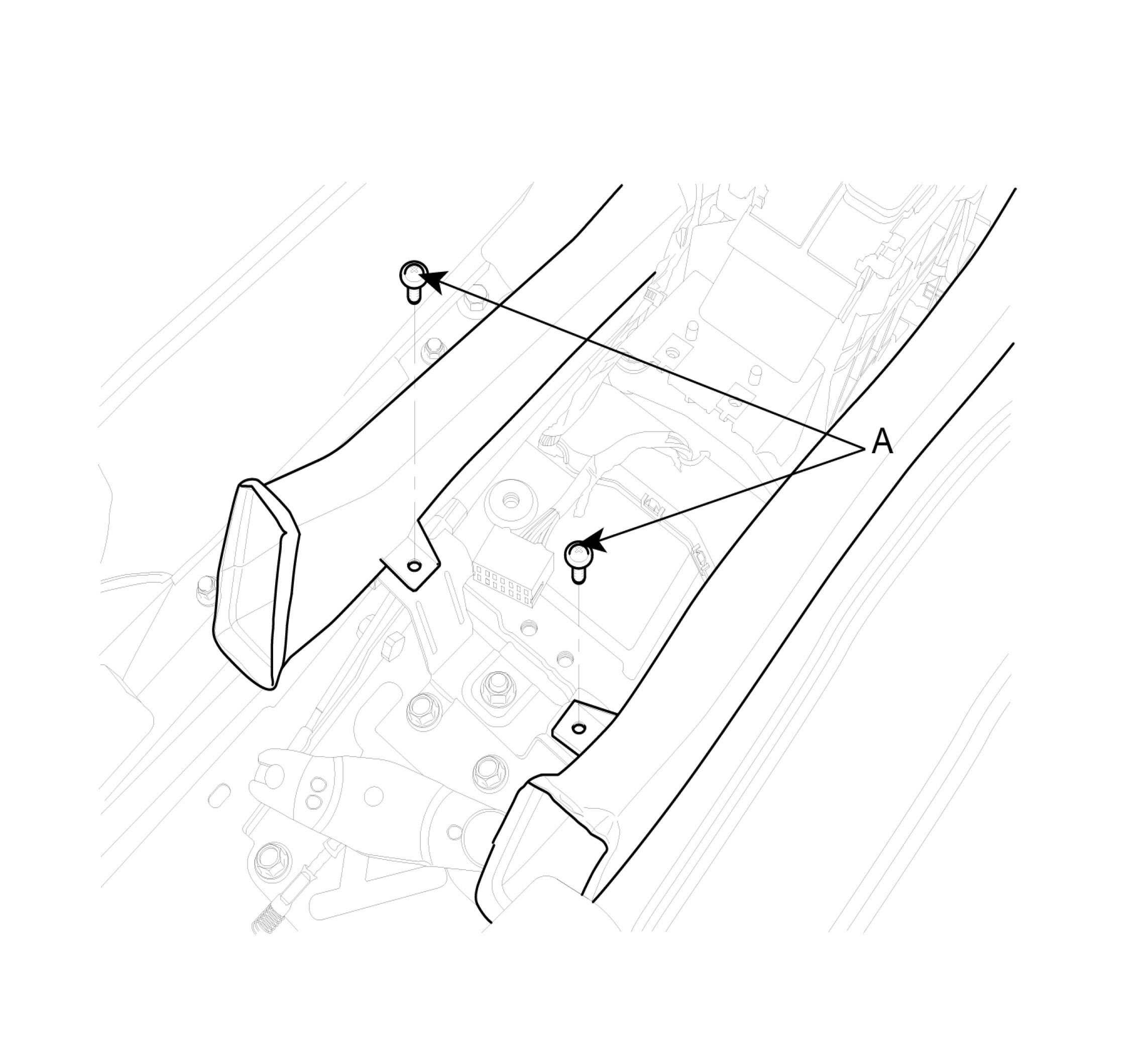

4. Remove the two screws (A) mounting floor air duct.

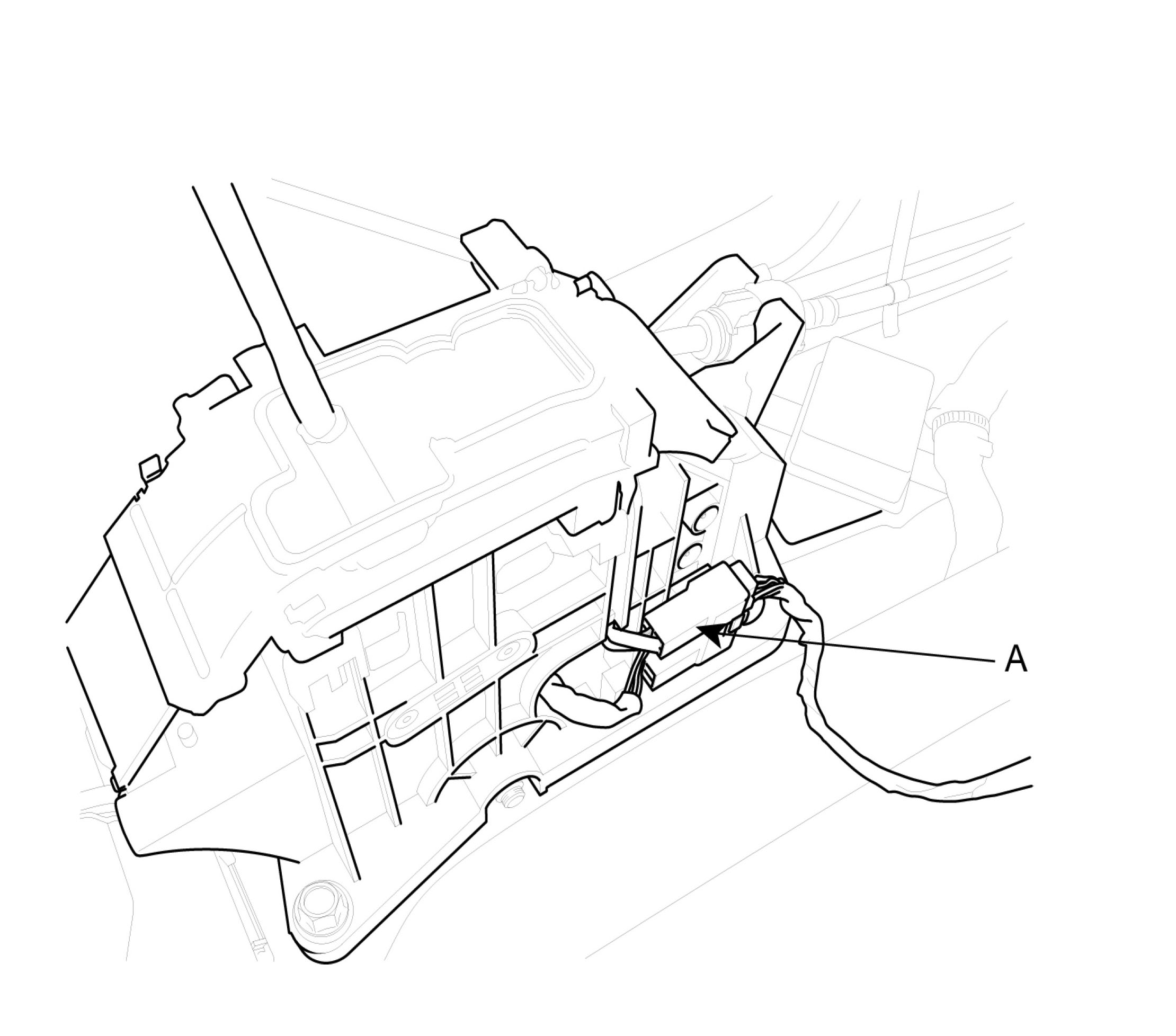

5. Disconnect the interlock connector (A).

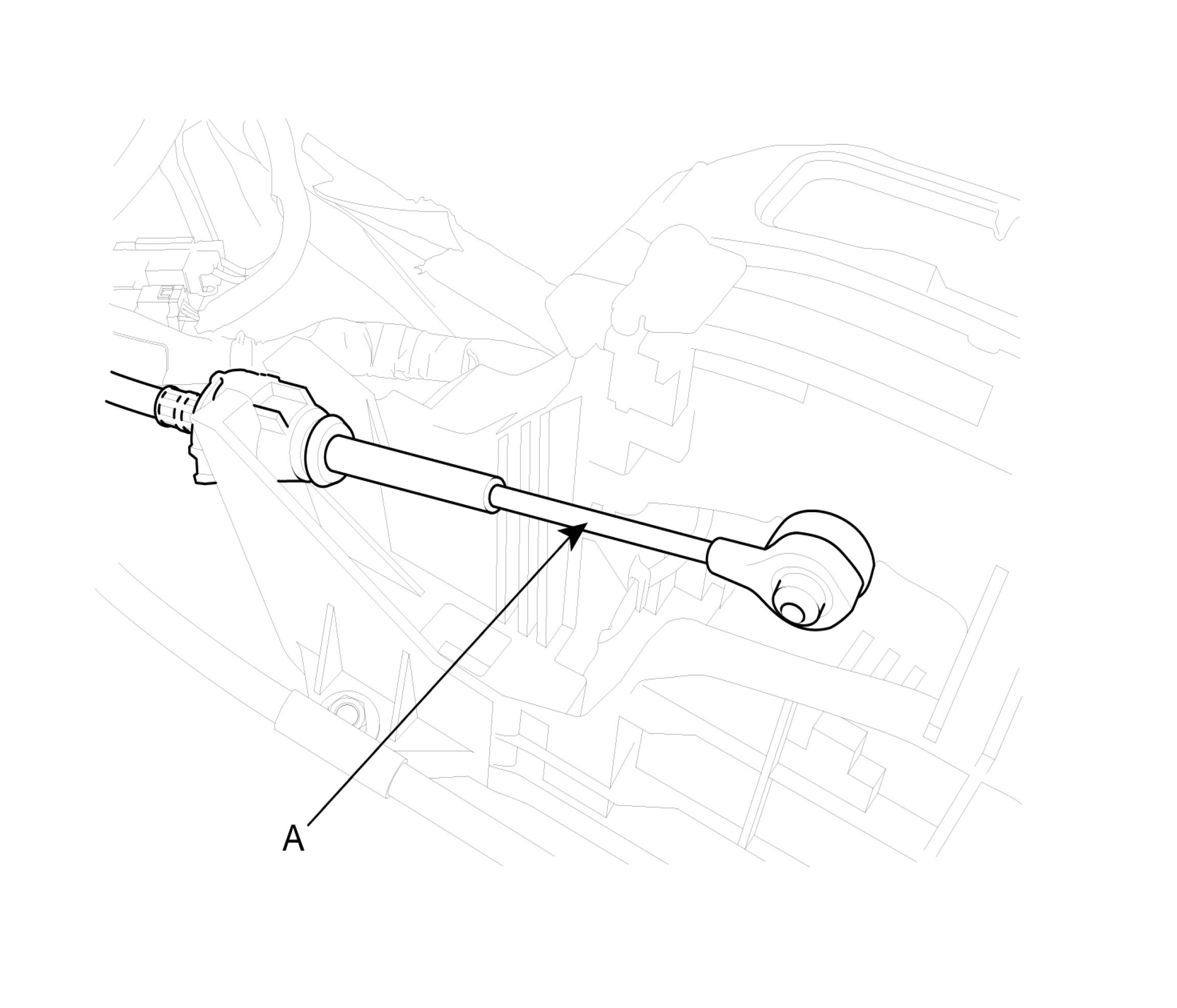

6. Disconnect the control cable (A).

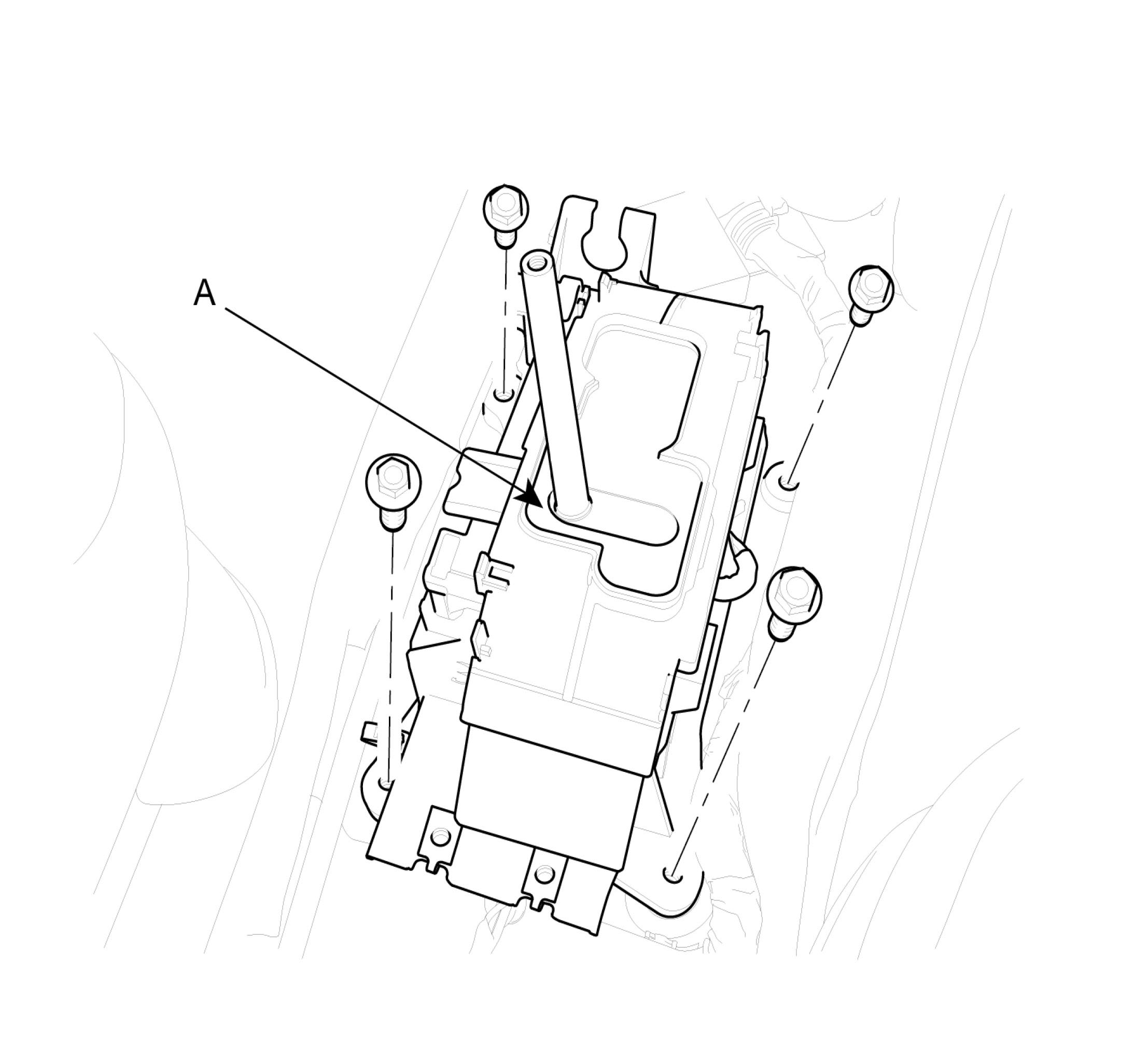

7. Remove the shift lever assembly (A). (Bolt: 4EA)





INSTALLATION
1. Installation is the reverse of removal.
