Inside Rearview Mirror Replacement

INSIDE REARVIEW MIRROR REPLACEMENT

CAUTION: When prying with a flat-tip screwdriver, wrap it with a shop towel to prevent damage.

NOTE: Take care not to scratch the cover or tear the head-liner.

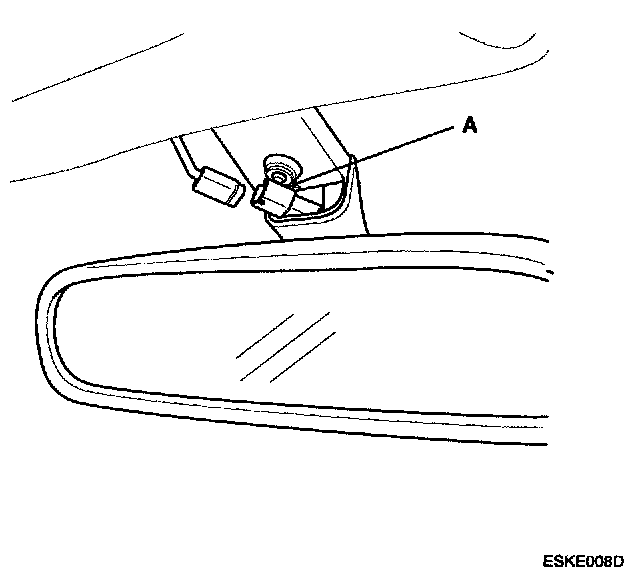

1. Remove the cover using the end of a flat-tip screwdriver, and disconnect the connector (A). (If electronic mirror is installed).

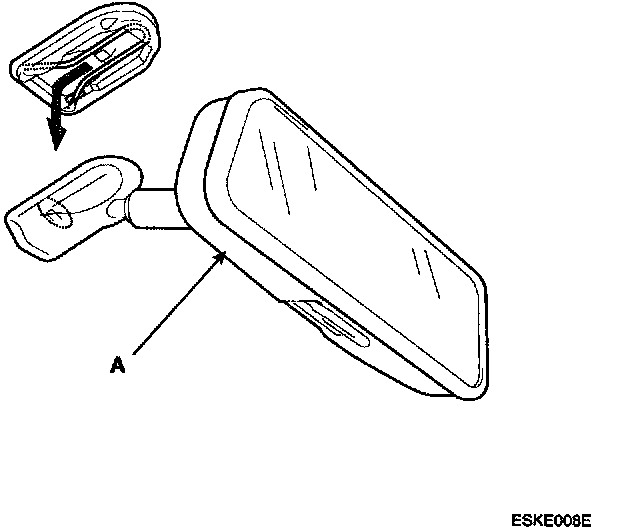

2. Remove the rearview mirror (A).

3. Installation is the reverse of removal.
