Leak Detection Valve: Testing and Inspection

CANISTER CLOSE VALVE

DESCRIPTION
The canister close valve is an ON/OFF type which controls the inner pressure of fuel tank caused by fuel evaporation.
It is used to close the evaporative system and to observe tank pressure respectively with the fuel tank pressure sensor.

Circuit Diagram (CCV):

Harness Connector:

Troubleshooting Procedures:

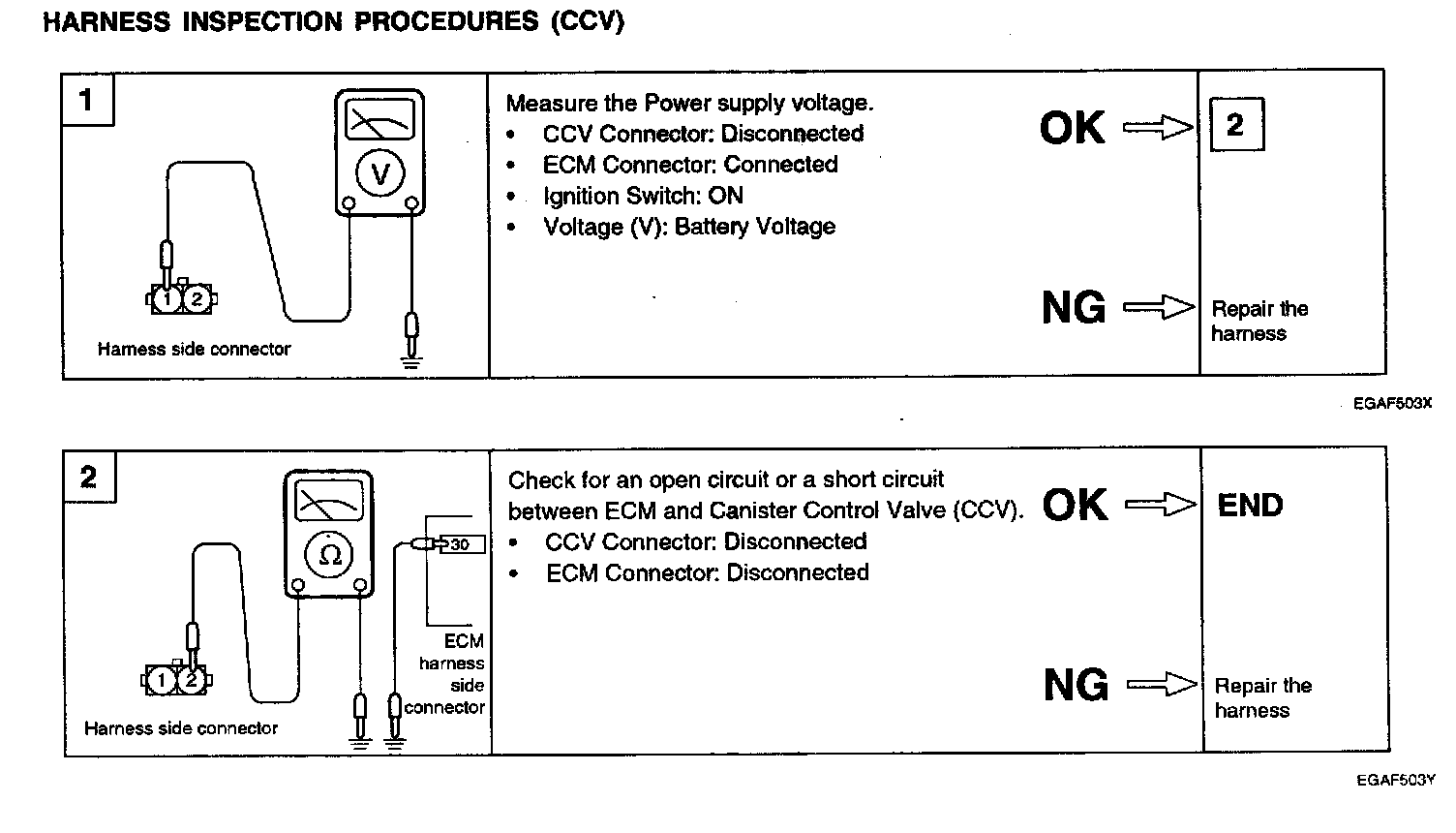

Step 1 - 2:

HARNESS INSPECTION PROCEDURES (CCV)
