Leak Detection Valve: Testing and Inspection
CANISTER CLOSE VALVEThe Canister Close Valve (CCV) is for monitoring of evaporative leakage detection.
While the leakage monitoring is operated, the CCV becomes closed but it is normally open.

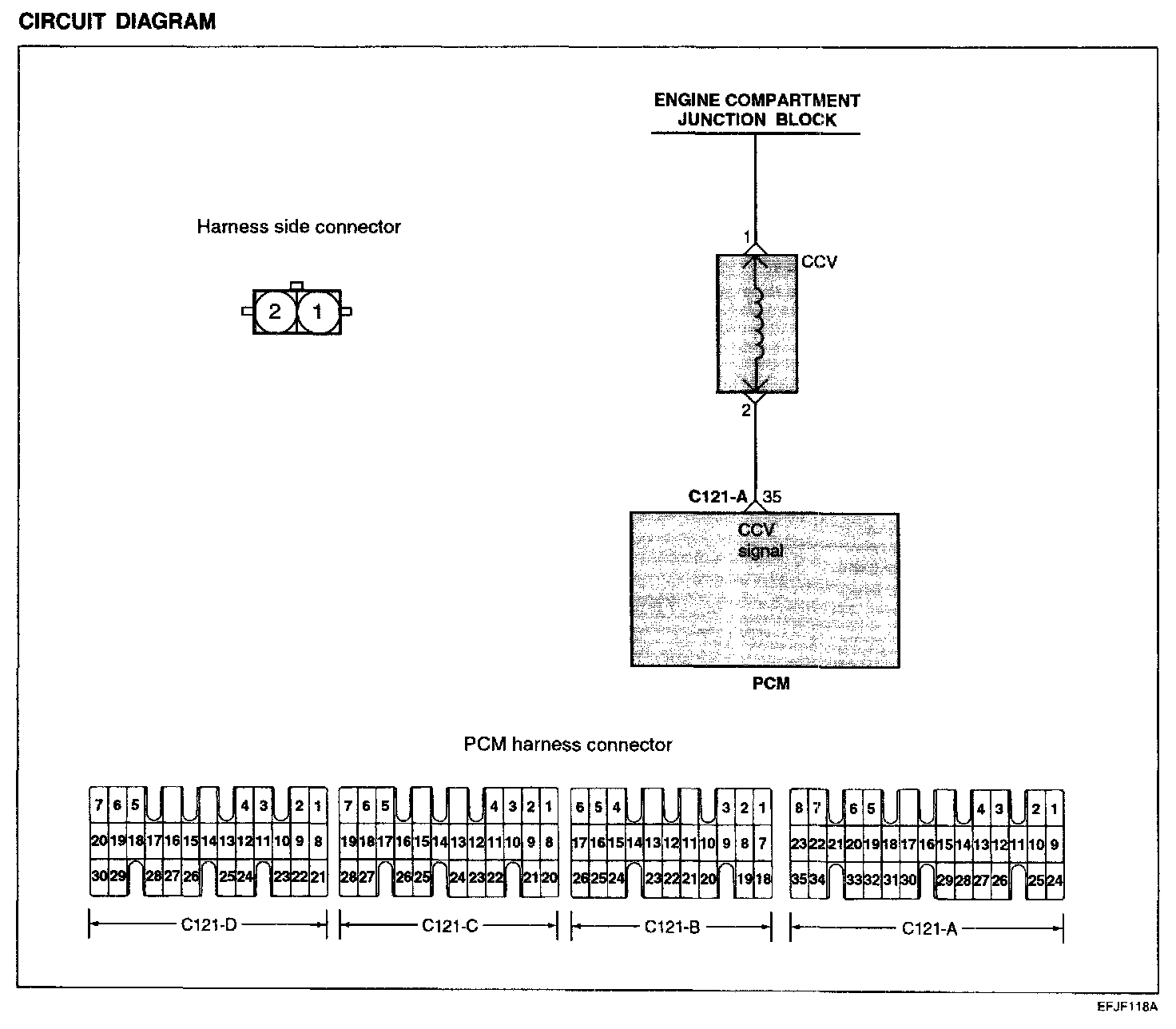

Circuit Diagram:

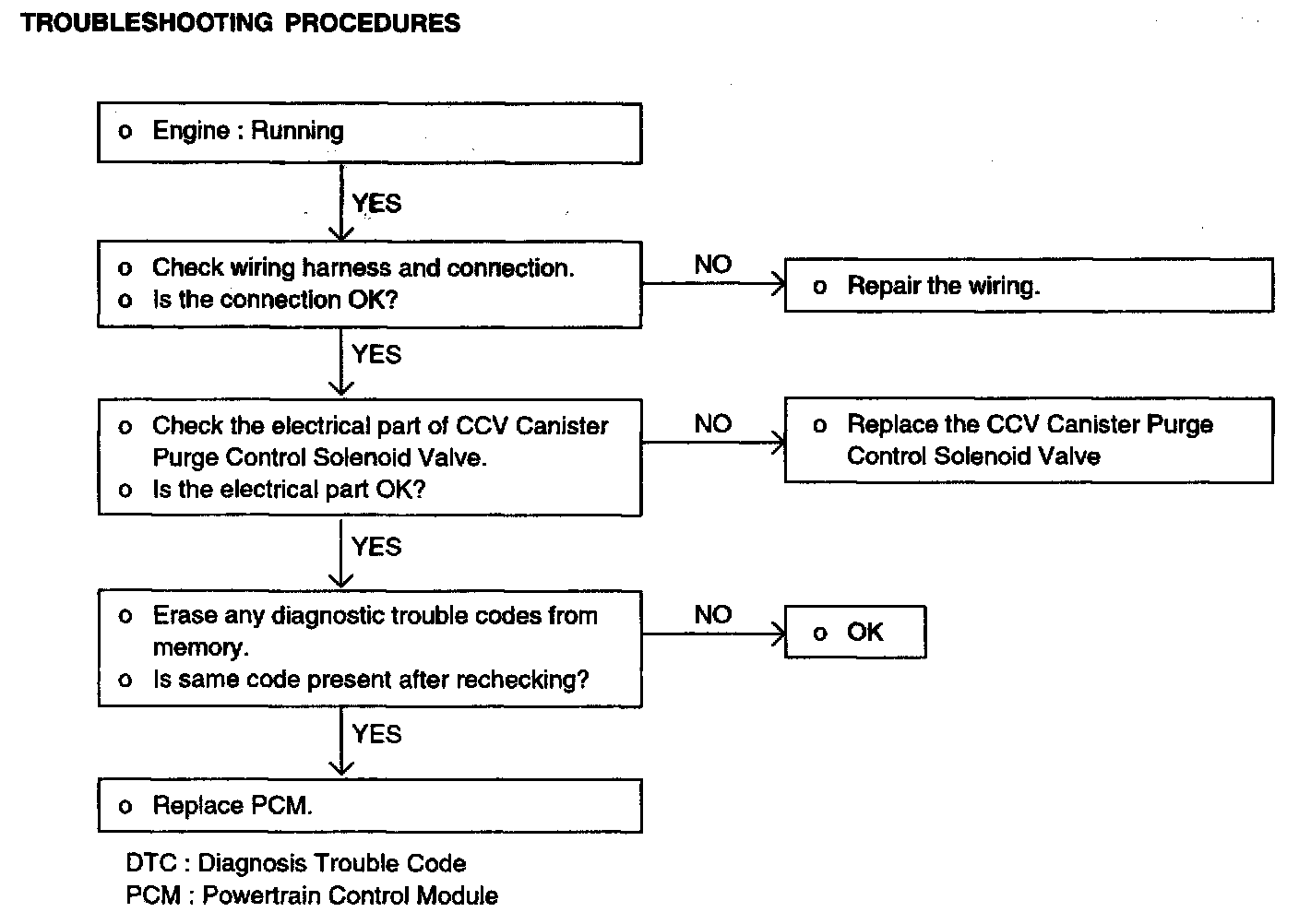

Troubleshooting Procedures:
TERMINAL INSPECTION PROCEDURESRefer to P0447, P0448 DTC inspection procedures.
