Rear Wheel Alignment
REAR WHEEL ALIGNMENT TOE-IN NOTE: ^

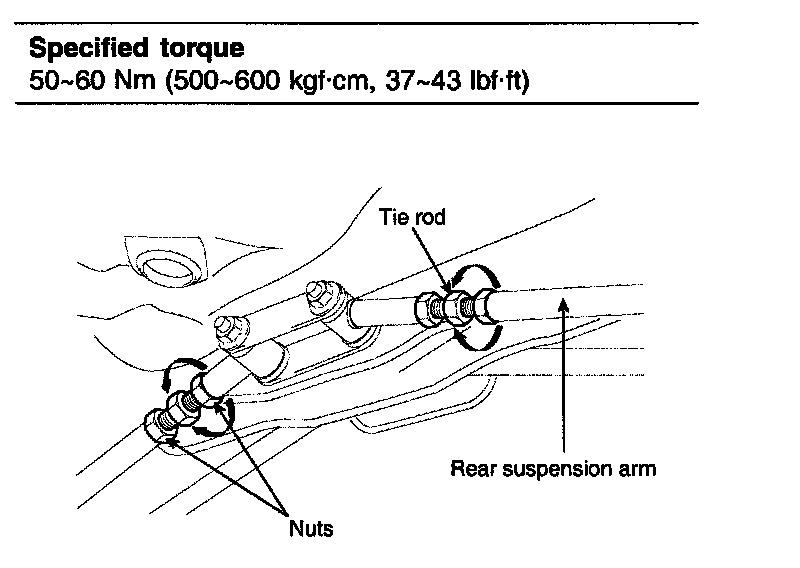

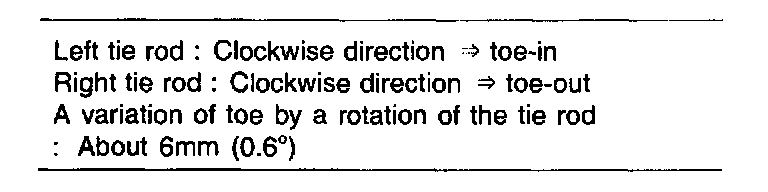

Adjust the toe-in by fuming the tie rod end of the rear suspension arm.
^
The cam bolt should be adjusted to a maximum of 90° leg or right from the center position.
CAUTION: After adjusting the tie rod, tighten both nuts to the specified torque.
