Impact Sensor: Service and Repair

SRS CONTROL SYSTEM

SIDE IMPACT SENSOR (SIS)

REMOVAL

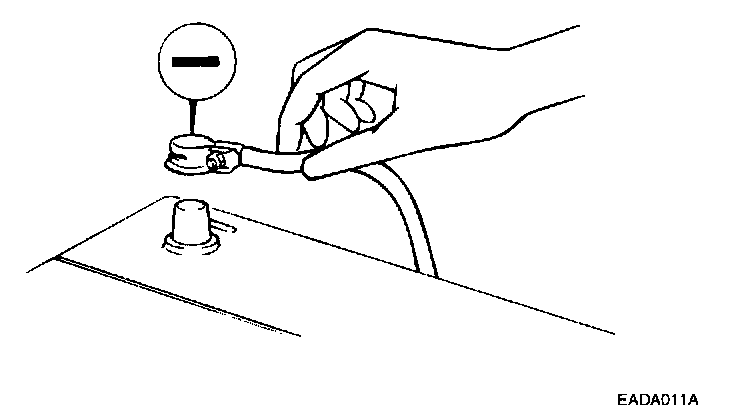

1. Disconnect the negative battery cable and keep secure from battery.

CAUTION: Wait at least 3 minutes alter disconnecting the battery cable before doing any further work.

2. Remove the front seat.

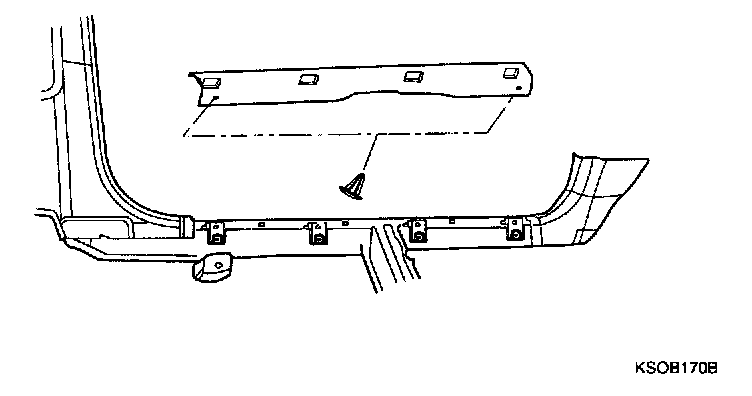

3. Remove the door scuff trim.

4. Remove the quarter trim. After removing seat belt lower anchor bolt.
5. Remove the floor carpet.

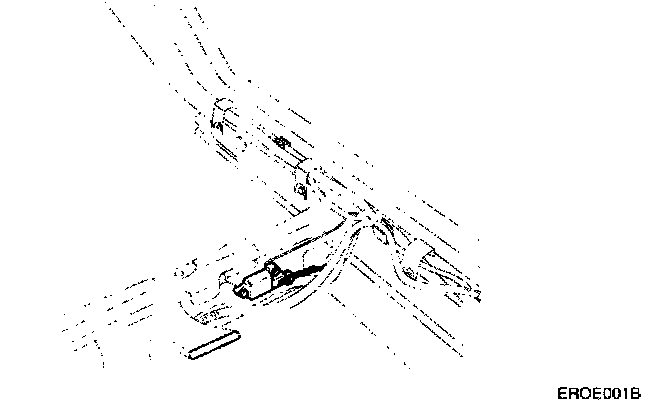

6. Disconnect the SIS connector and remove the SIS.
