Oil Pan, Engine

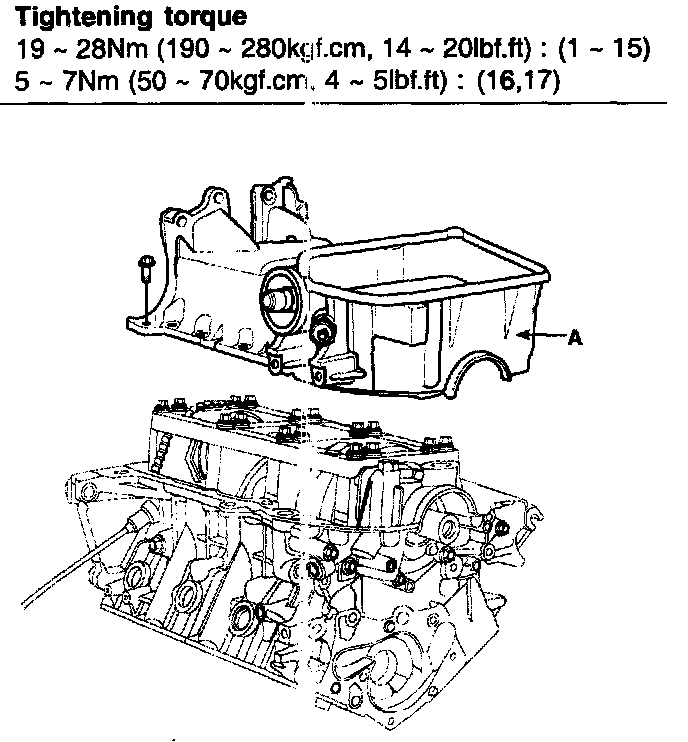

Install the

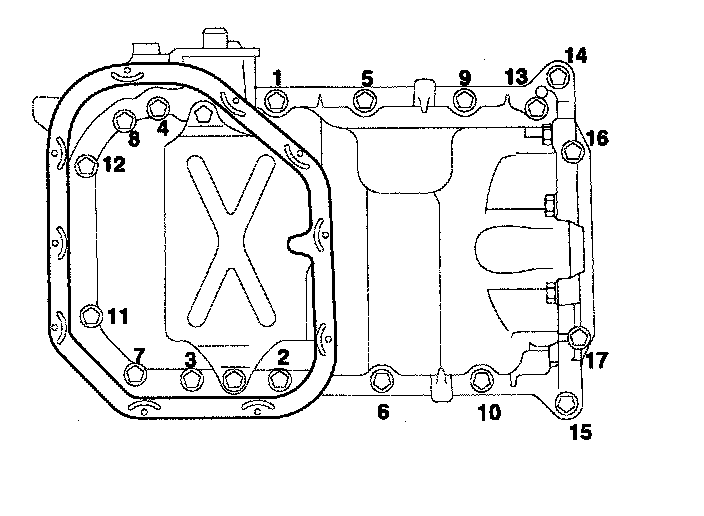

oil pan (A) with the 17 bolts. Uniformly tighten the bolts in several passes.

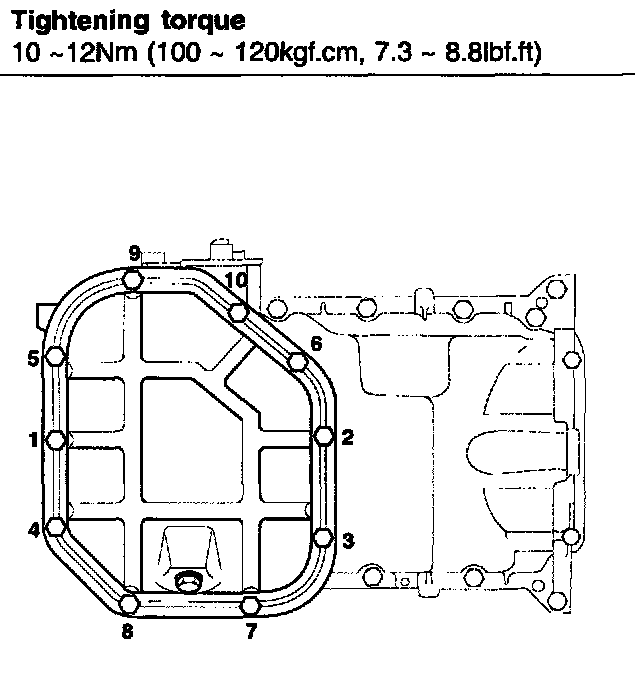

Install the lower
oil pan 1O bolts.
Uniformly tighten the bolts several passes
Tightening torque
10 - 12 Nm (100 - 120 kgf-cm, 7.3 - 8.8 ft. lbs.)
