Seat Temperature Switch: Testing and Inspection

SEAT WARMER SWITCH

INSPECTION
1. Disconnect the negative (-) battery terminal.




2. Remove the seat warmer switch from the floor console upper cover.

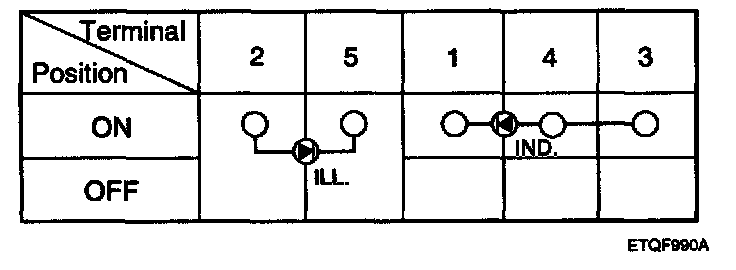

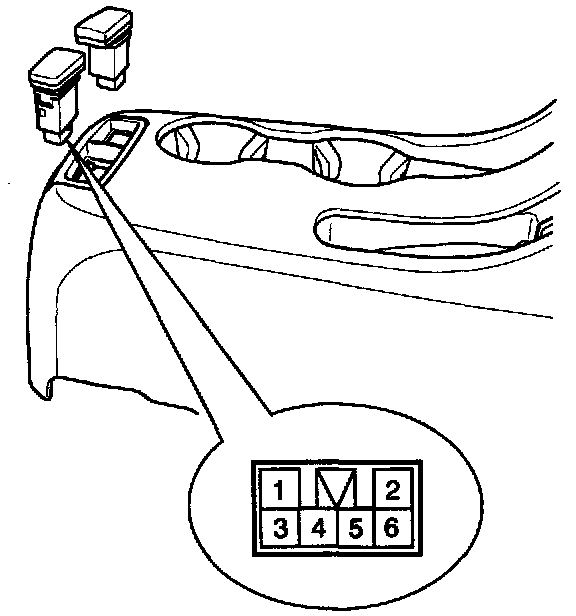

3. Check for continuity between the terminals.

SEAT WARMER INSPECTION




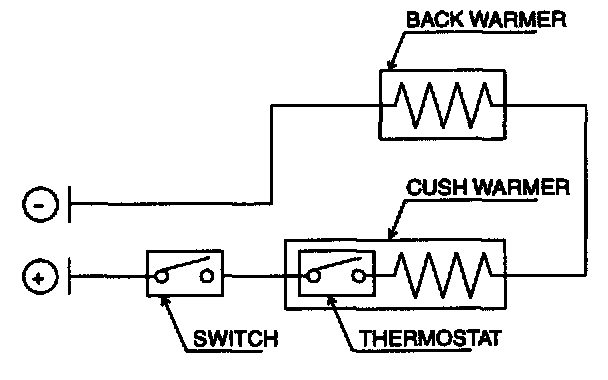

1. Check for continuity and measure the resistance between the terminals.

Standard value : 2.6 Ohms ± 10%

2. Operate the seat warmer after connecting the 2P connector and then check for the thermostat by measuring the temperature of seat surface.
3. Check for continuity between the terminals after disconnecting the 2P connector.

Thermostat settings standard value
28 ± 3.5 degrees C (Continuity) : Turn ON
37 ± 3.0 degrees C (Short): Turn OFF
