Restraints - SRS DTC B1495 Service Manual Addition

Group:
ELECTRICAL

Number:
06-90-013

Date:
MARCH, 2006

Model:
TUCSON

Subject:
SRS DIAGNOSTIC TROUBLE CODE B1495 OMITTED FROM 2006 TUCSON SHOP MANUAL

DESCRIPTION:

The SRS diagnostic trouble code B1495 was inadvertently omitted from the 2006 Tucson Shop manual. This code's related set criteria and diagnostic procedure is provided in this bulletin.





Affected Shop Manual

PROCEDURE:

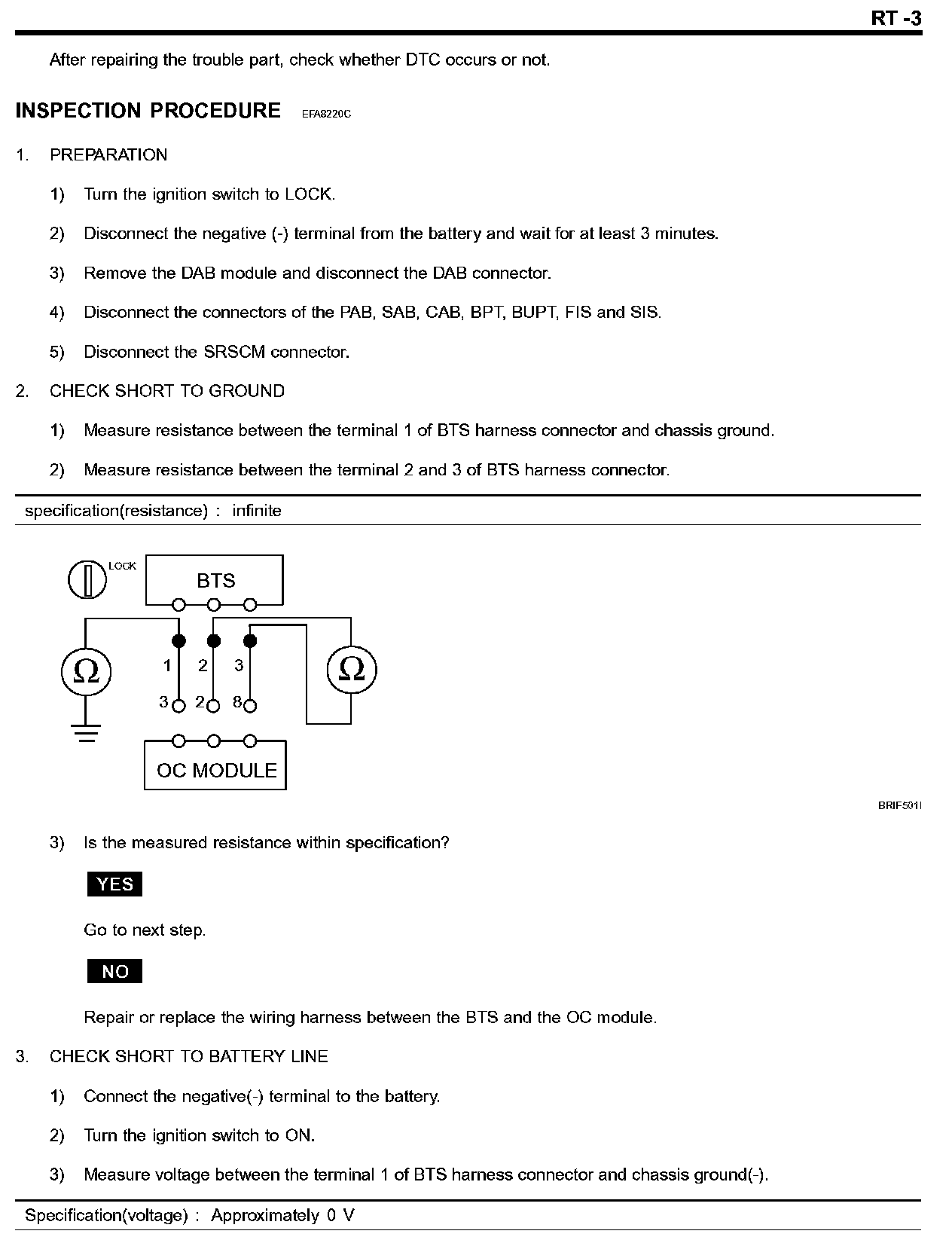

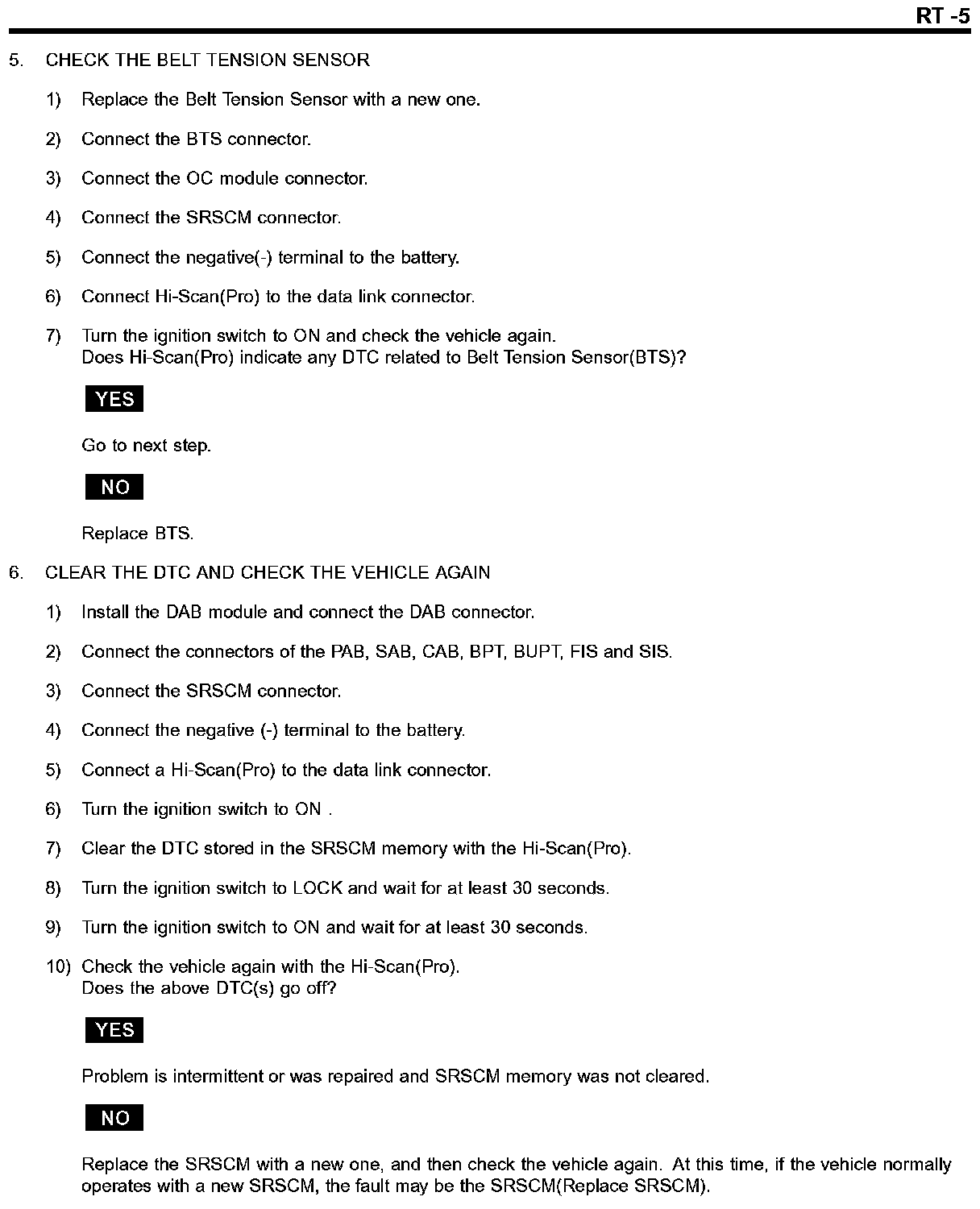

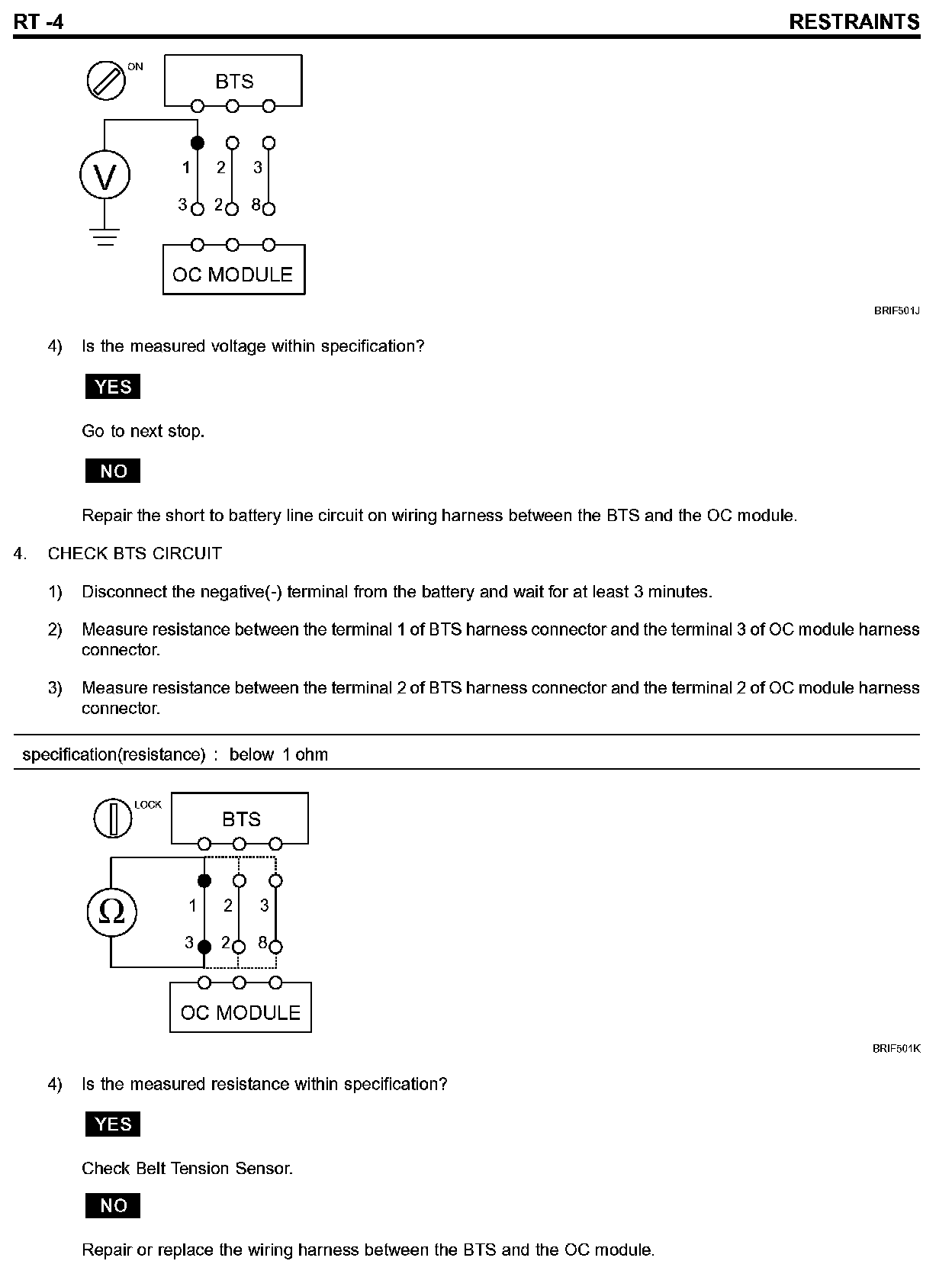

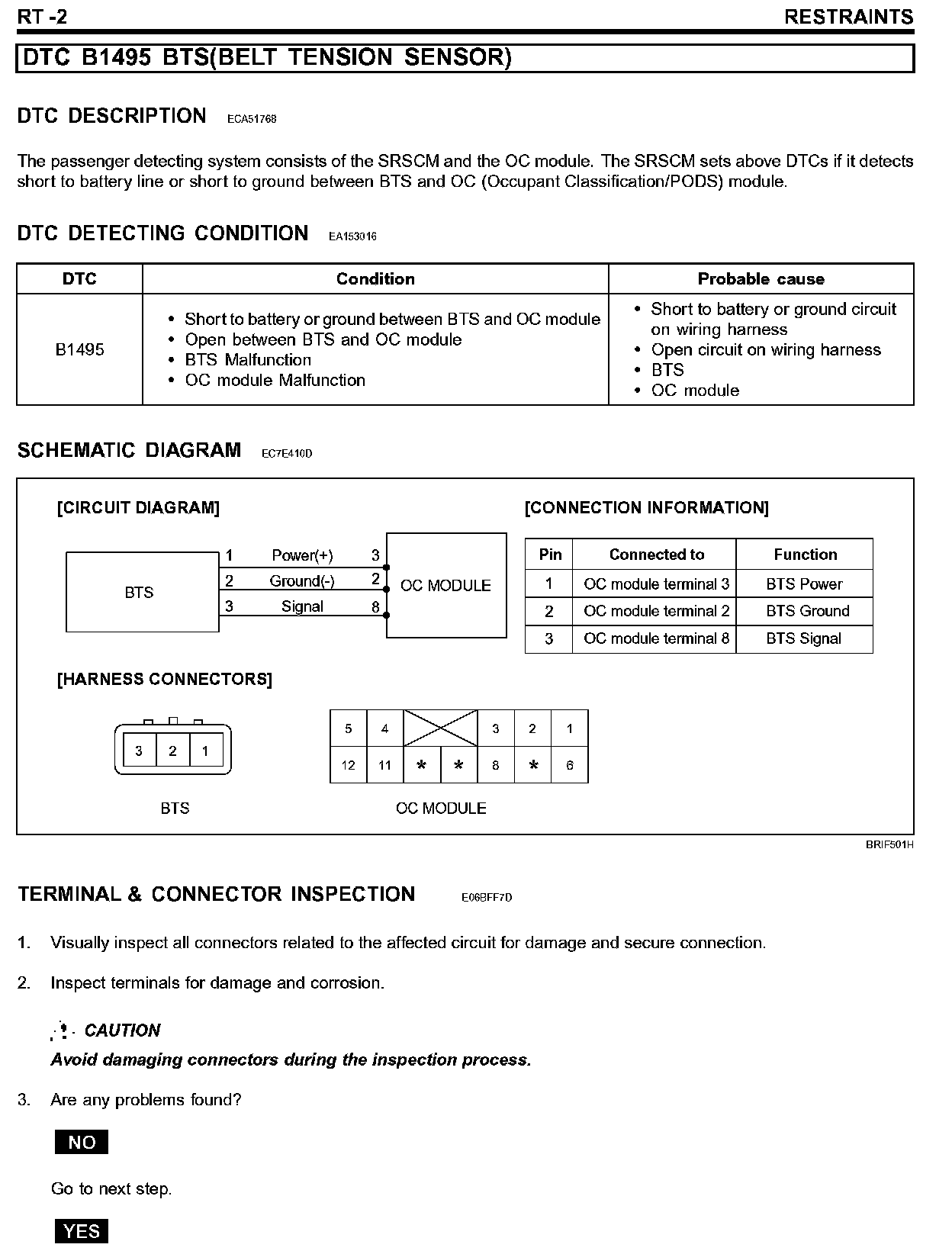

Please refer to the attachment shown when servicing is necessary.

WARRANTY INFORMATION:

This procedure is not a warranty repair.
