Rear

REAR WIPER MOTOR

REMOVAL

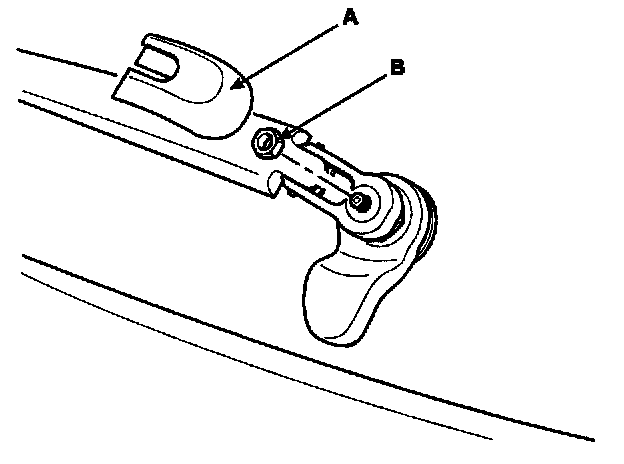

1. Detach the wiper cap(A), then remove the rear wiper arm after removing a nut(B).

Tightening torque
Nut(B): 14-17 Nm (140-170 kgfcm, 10.1-12.3 lbf.ft)

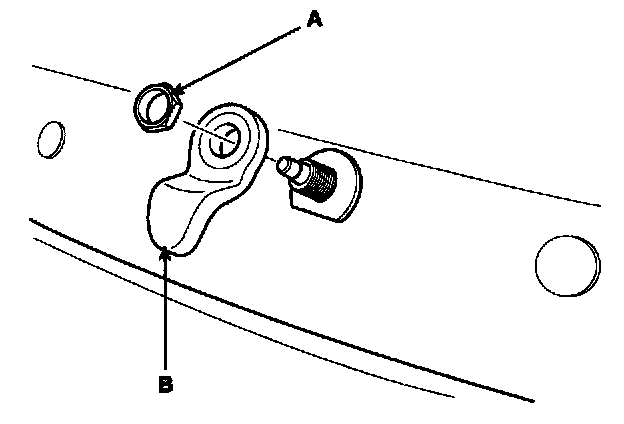

2. Remove the handle(B) after removing a nut(A).

Tightening torque
Nut(A): 10-13 Nm (100-130 kgfcm, 7.2-9.4 lbf.ft)

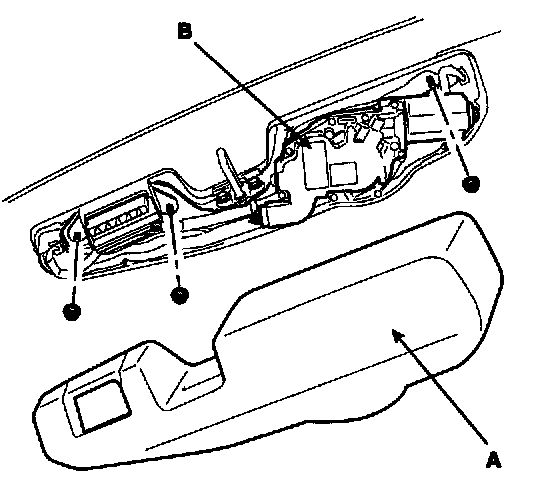

3. Open the tailgate glass then remove the rear wiper motor cover(A).




4. Disconnect the rear wiper motor connector then remove the rear wiper motor(B) after removing 3 nuts.

Tightening torque
Nut: 14-17 Nm (140-170 kgfcm, 10.1-12.3 lbf.ft)

5. Installation is the reverse of removal.

INSTALLATION

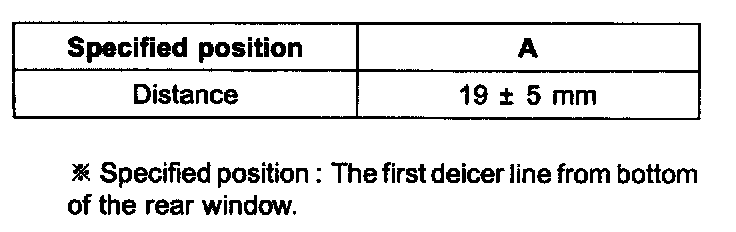

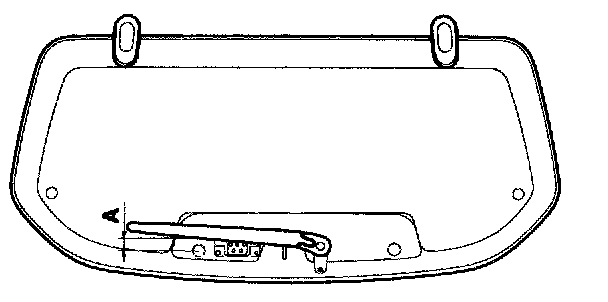

1. Install the rear wiper arm and blade to the specified position.




2. Set the rear washer nozzle on the specified spray position.
