Blower and A/C Controls (Automatic)

BLOWER AND A/C CONTROLS (AUTOMATIC)

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

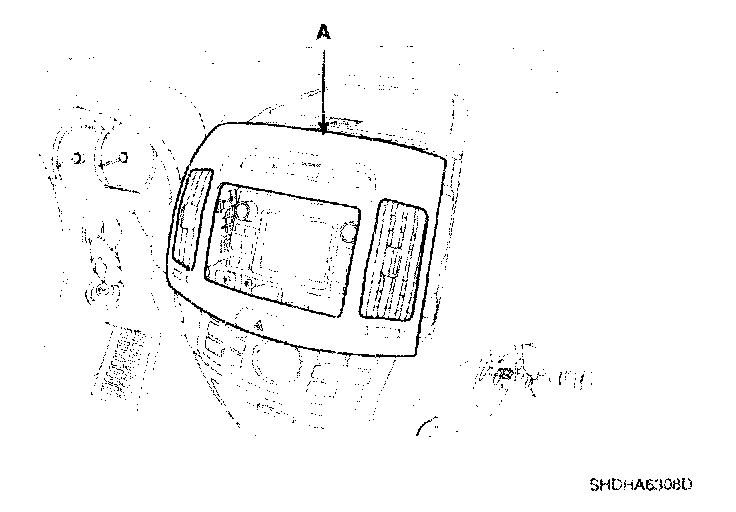

2. After disconnect the mounting clip, remove the center facia panel (A).

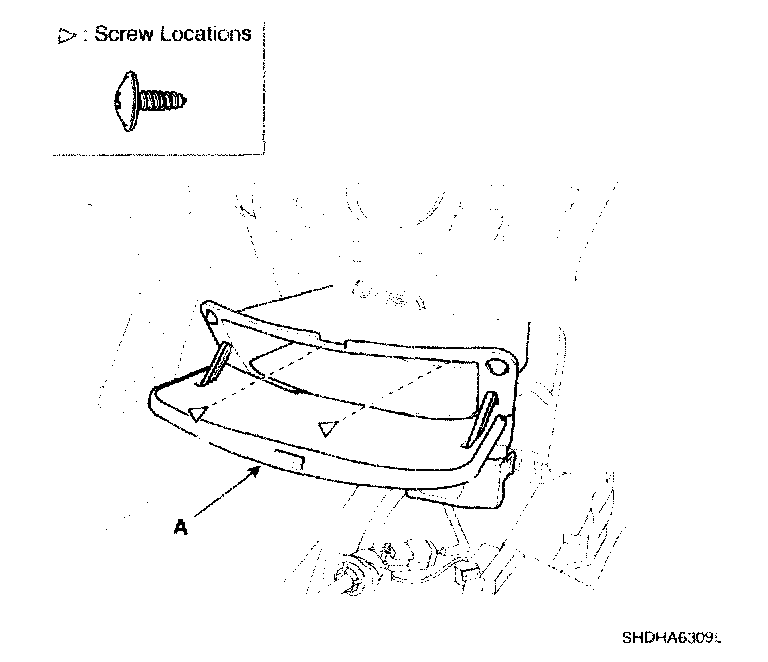

3. After loosening the mounting screw. remove the center facia lower panel (A).

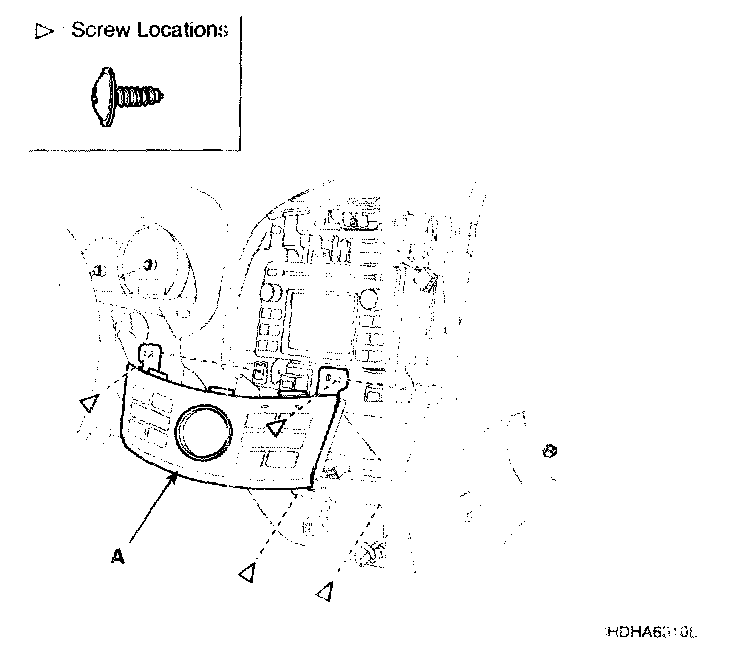

4. Remove the heater & A/C controller (A) after loosening 4 screws.

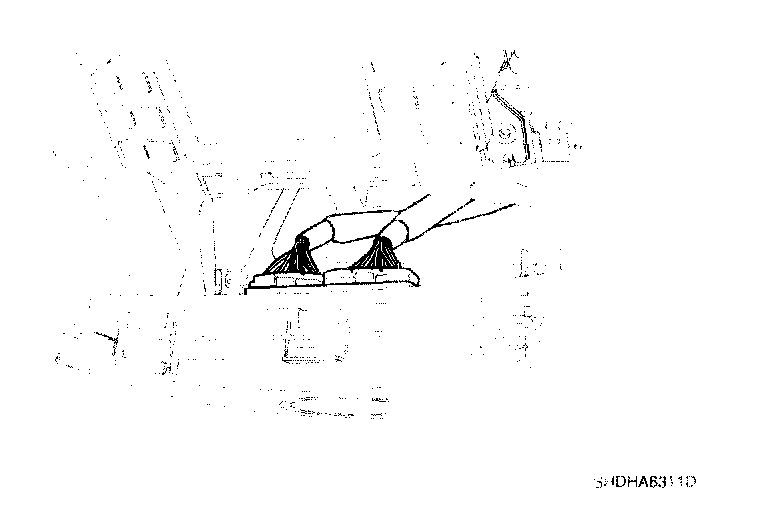

5. Disconnect the connectors (A) from the center facia.
6. Installation is the reverse order of removal.
