Body Control Module: Description and Operation

BODY CONTROL MODULE




DESCRIPTION

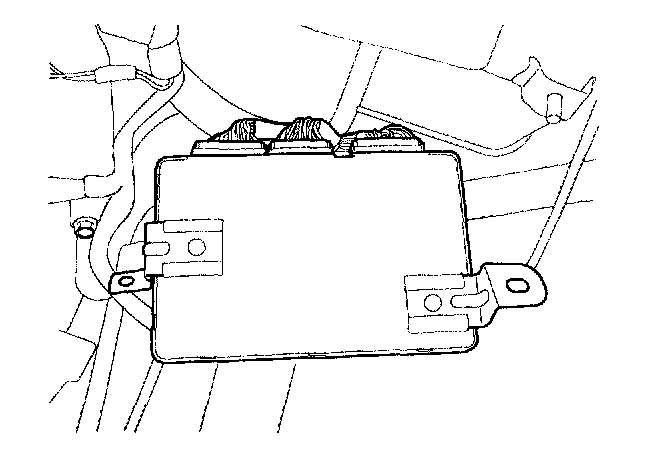

Body control module (A) receives various input switch signals controlling time and alarm functions for tail lamp, rear fog lamp, wiper control, buzzer warning, front deicer timer, tail lamp auto cut, central door lock, seat belt warning, key operated warning, over speed warning, ignition key hole illumination, room lamp control, power window timer, keyless entry control, burglar alarm control, crash door unlock, key reminder.
