C1237

DTC C1237 PRESSURE SENSOR-OTHER

COMPONENT LOCATION
Refer to DTC C1235. C1235

GENERAL DESCRIPTION
Refer to DTC C1235. C1235

DTC DESCRIPTION
With the driver torque demand and the lateral acceleration a driver braking demand is calculated. Unless the pump motor is operating or there is a brake signal, The offset compensation is executed. A failure is detected if offset value exceeded ±15 bar.

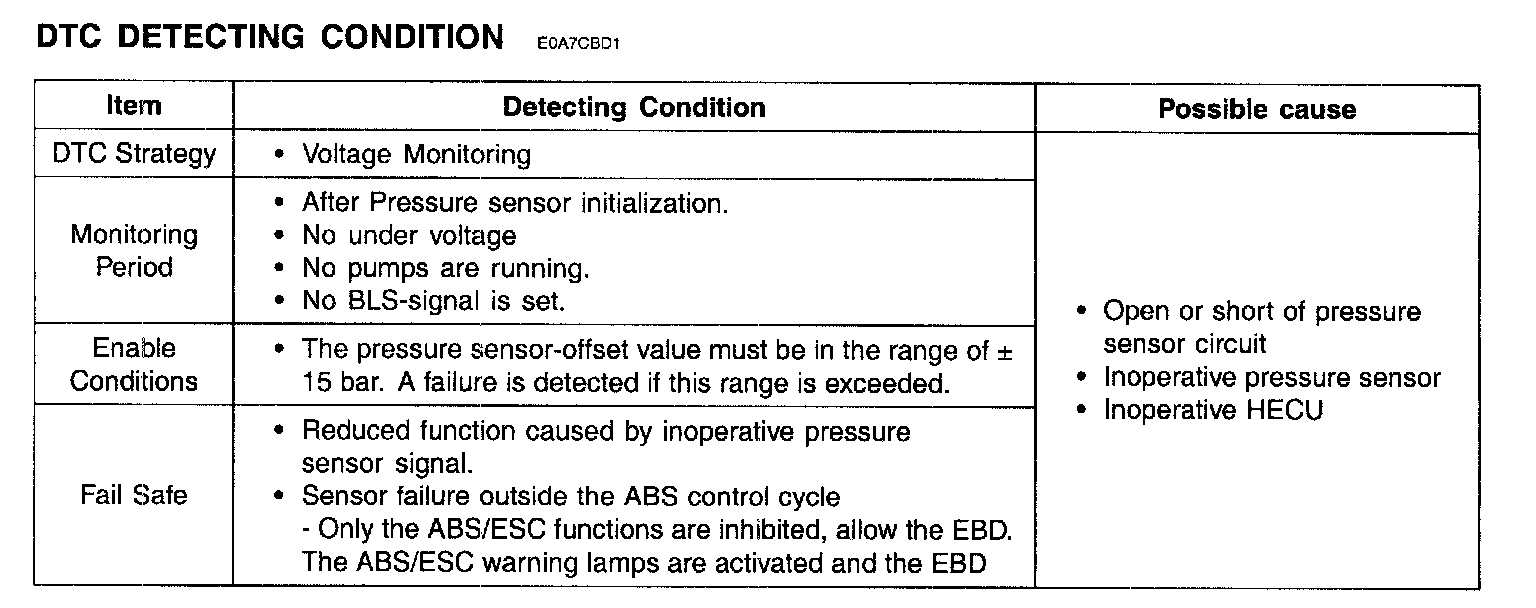

DTC DETECTING CONDITION:

MONITOR SCANTOOL DATA
Refer to DTC C1235. C1235

COMPONENT INSPECTION
Refer to DTC C1235. C1235

VERIFICATION OF VEHICLE REPAIR
Refer to DTC C1101. C1101
