Body Control Systems

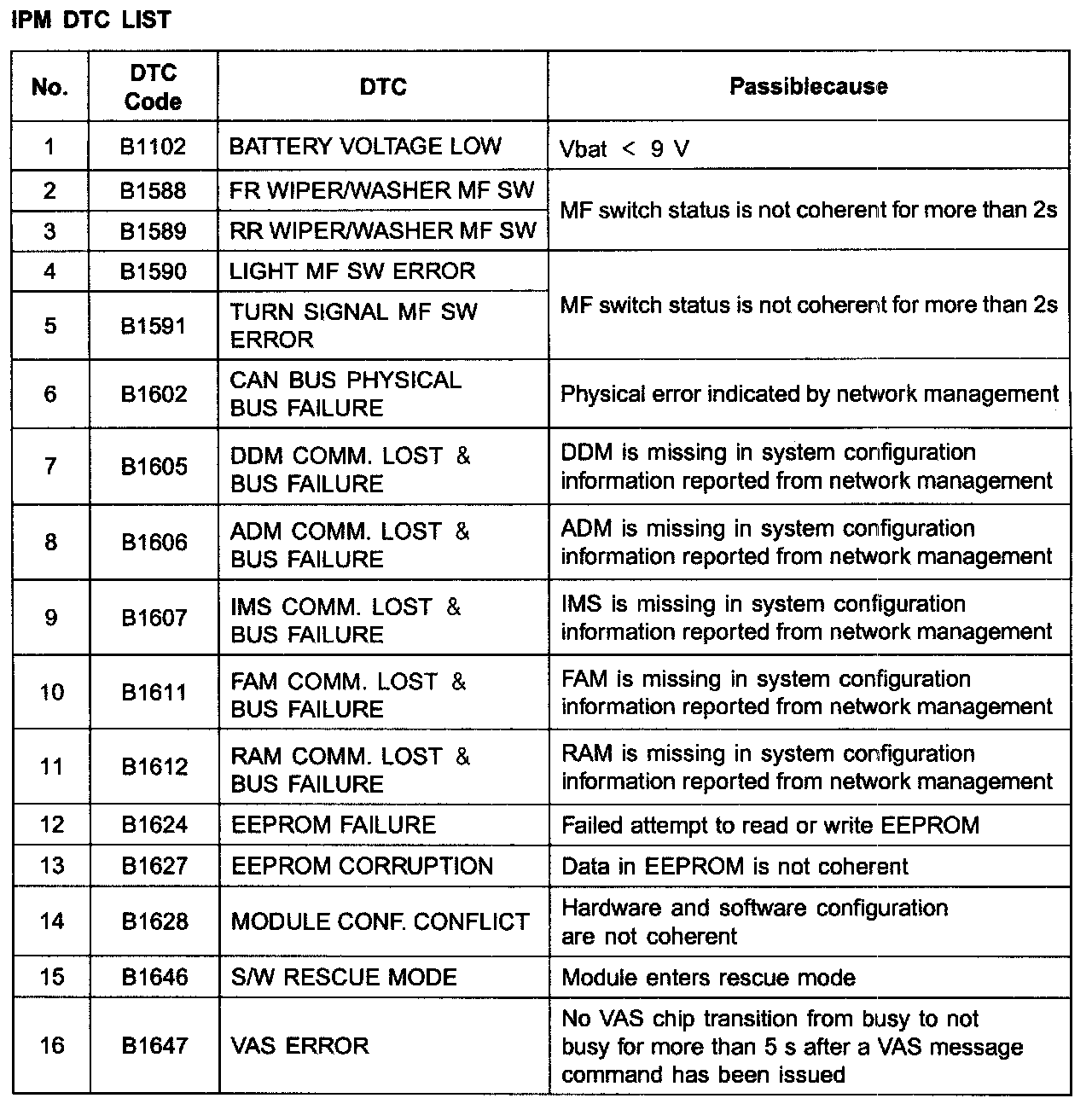

IPM DTC List (B1102 - B1647):

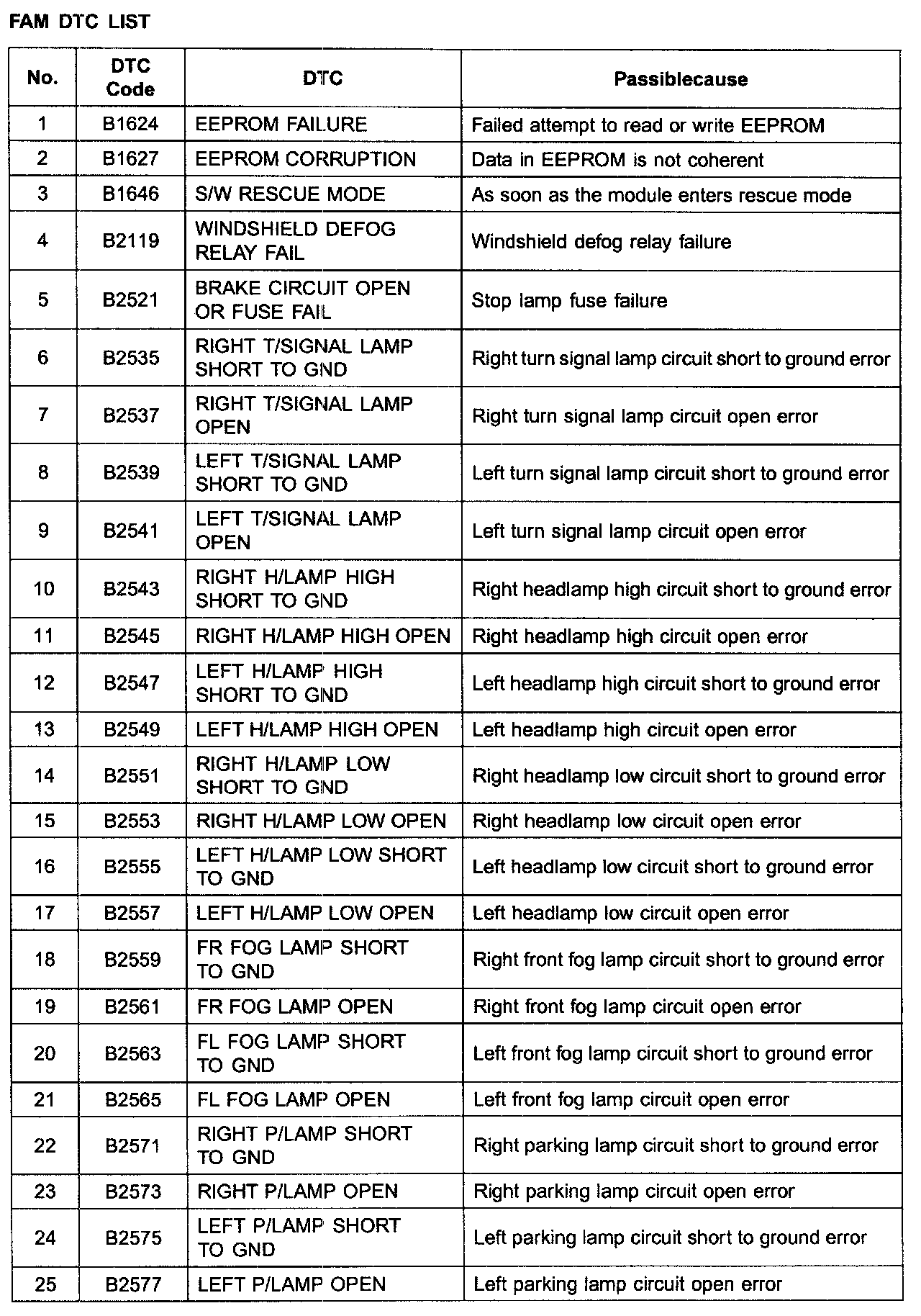

FAM DTC List (B1624 - B2577):

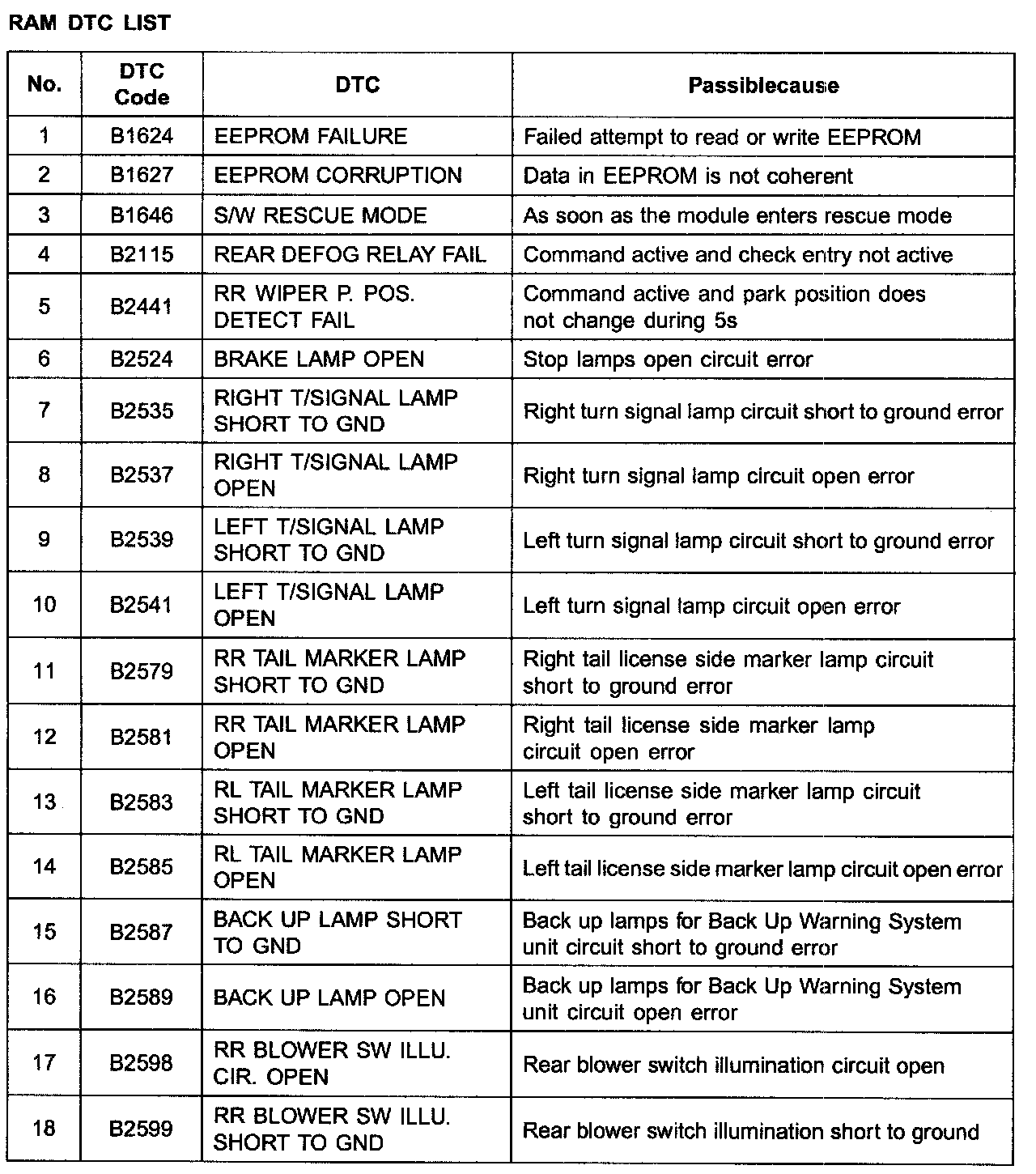

RAM DTC List (B1624 - B2599):

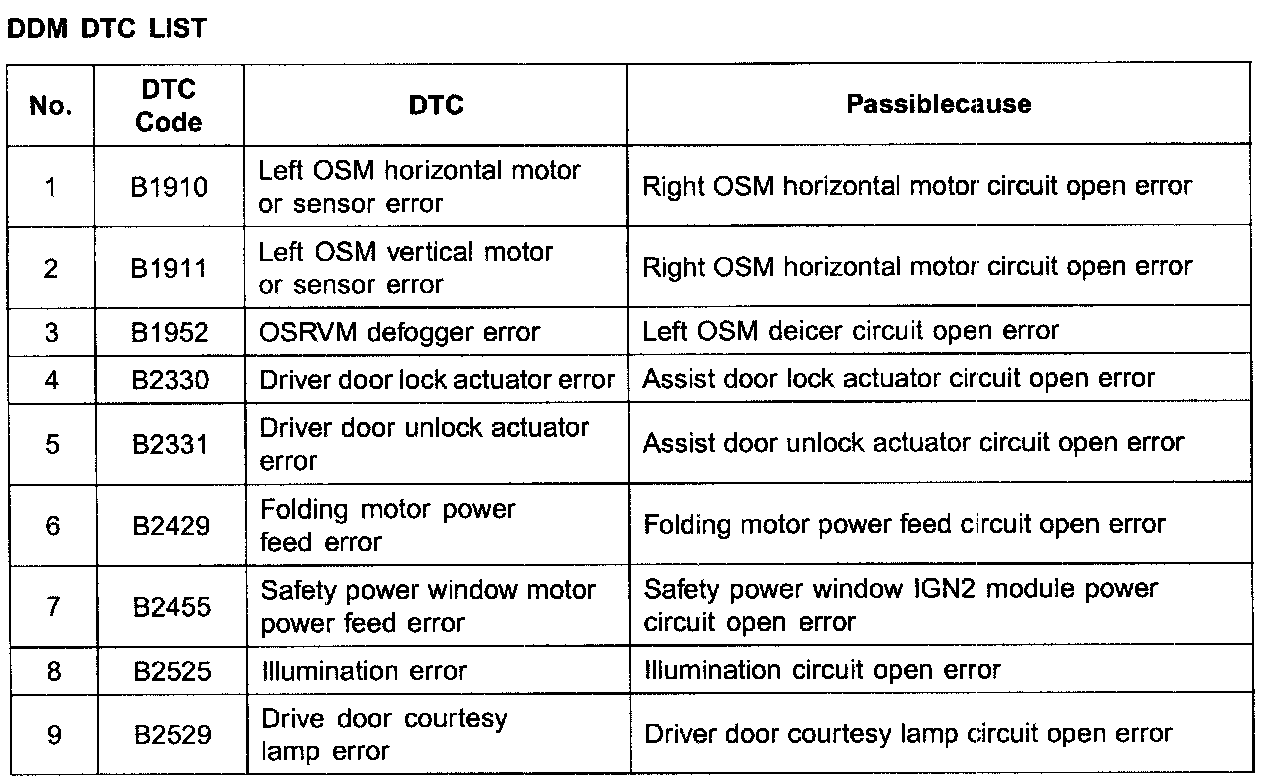

DDM DTC List (B1910 - B2529):

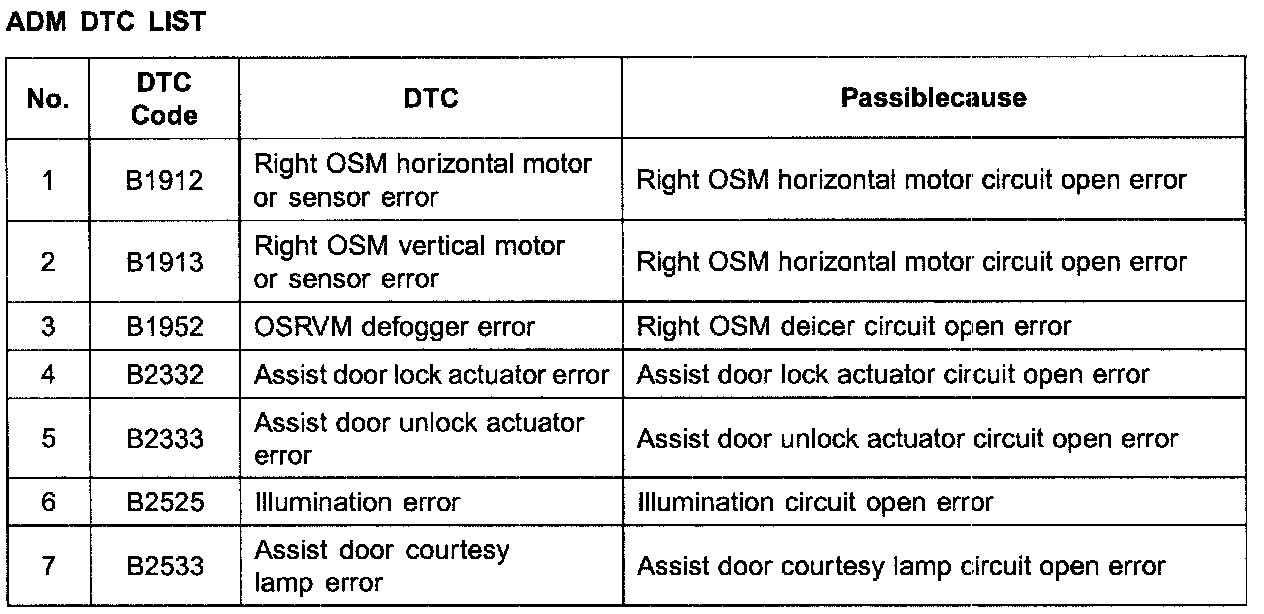

ADM DTC List (B1912 - B2533):

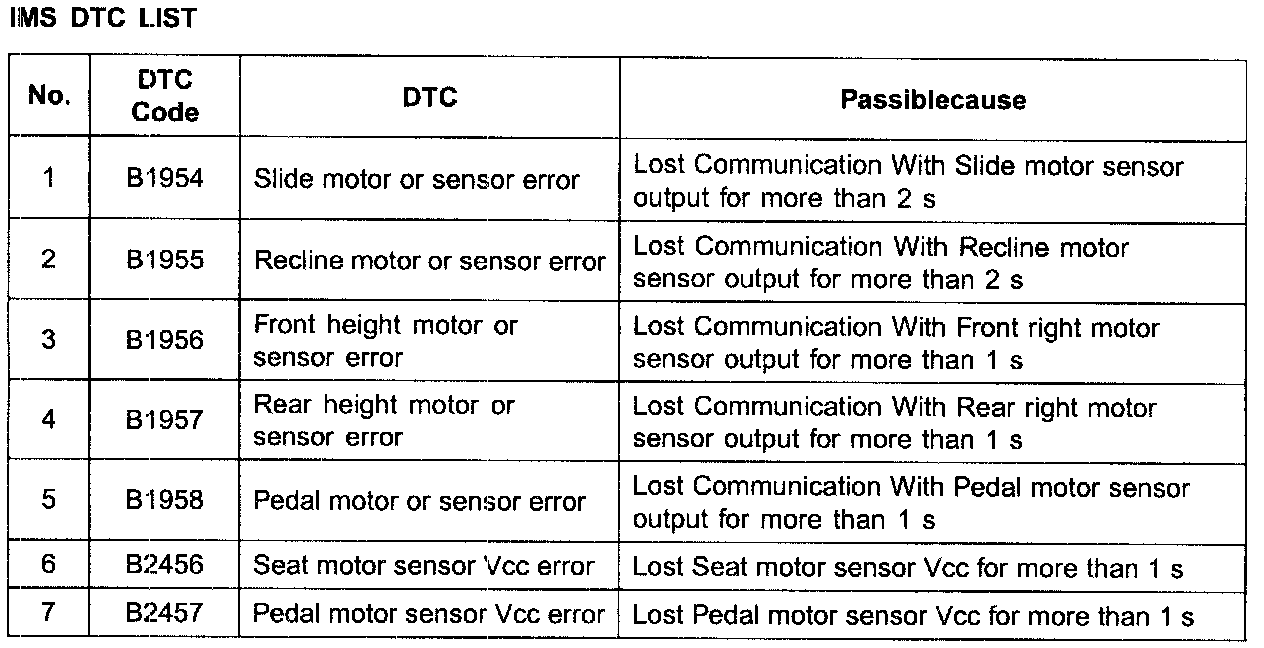

IMS DTC List (B1954 - B2457):

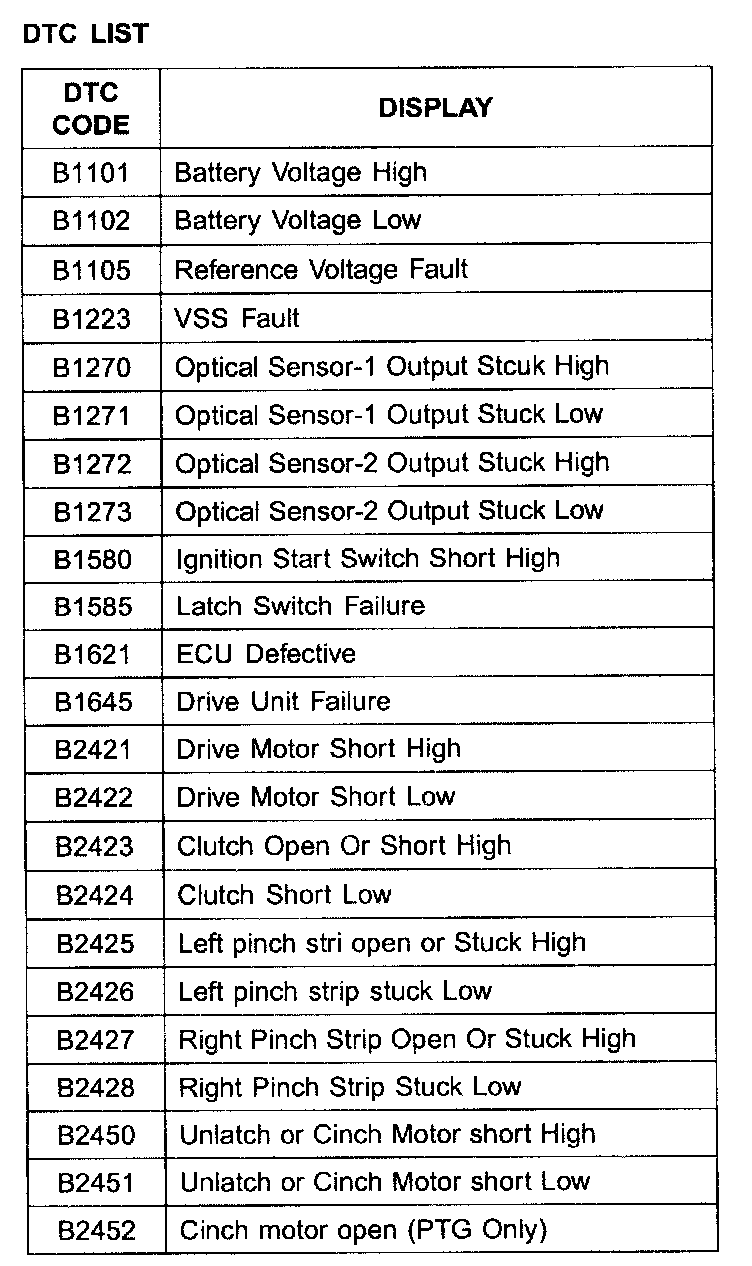

B1101 - B2451 Sliding Door DTC List:

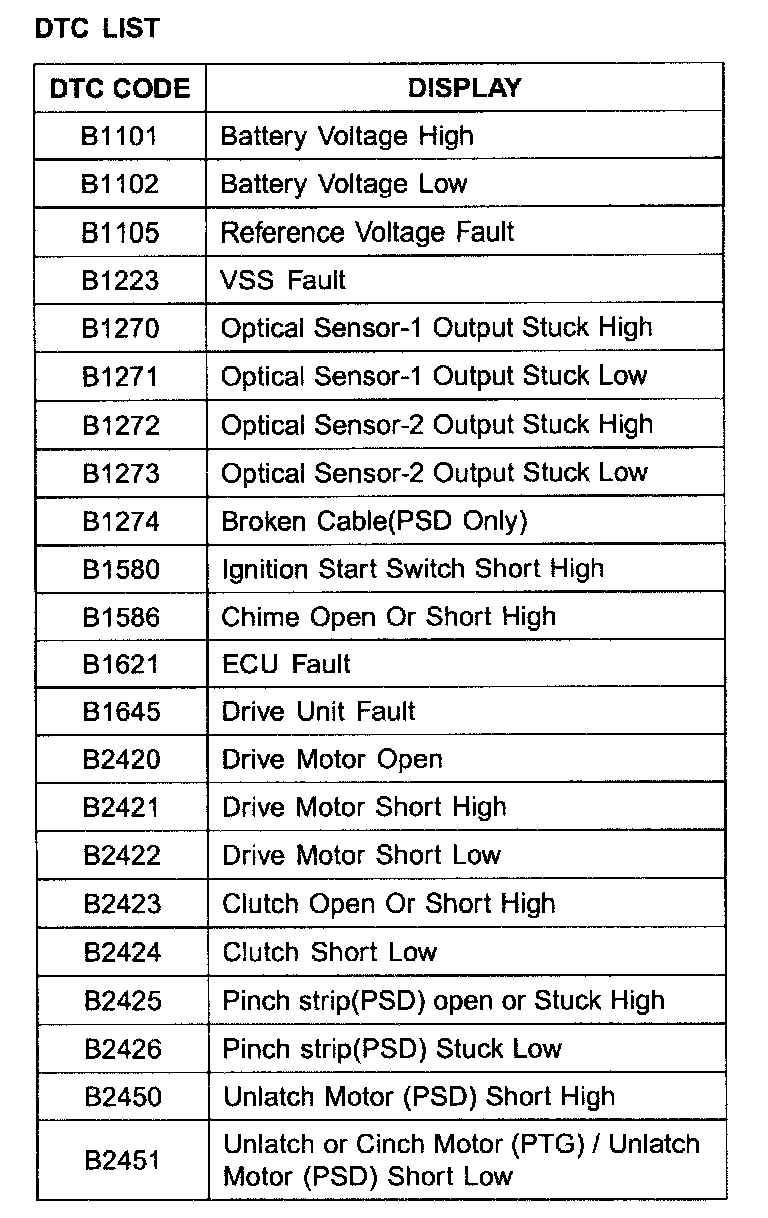

B1101 - B2452:
