Input/Output Monitoring

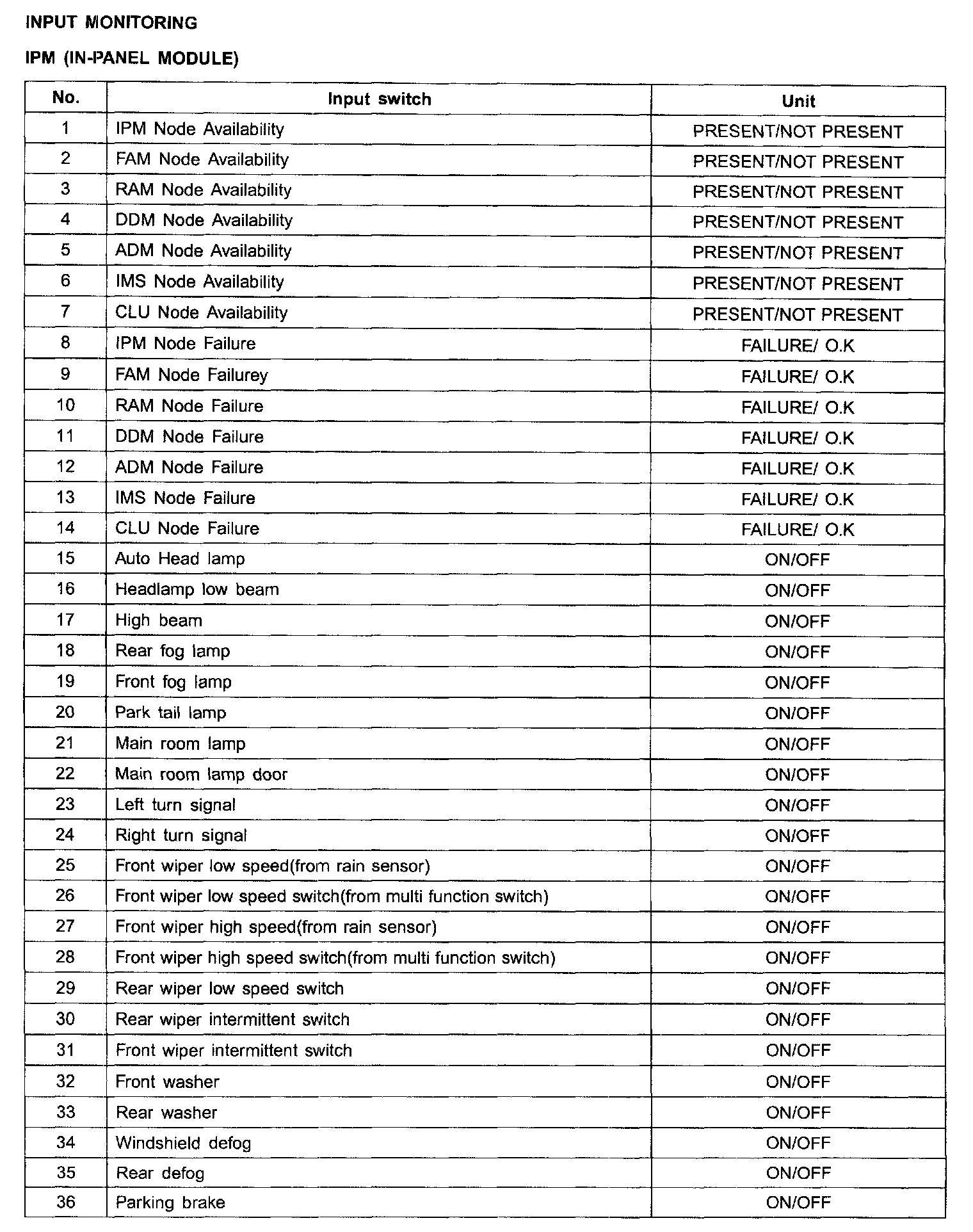

IPM (In-Panel Module) Part 1:

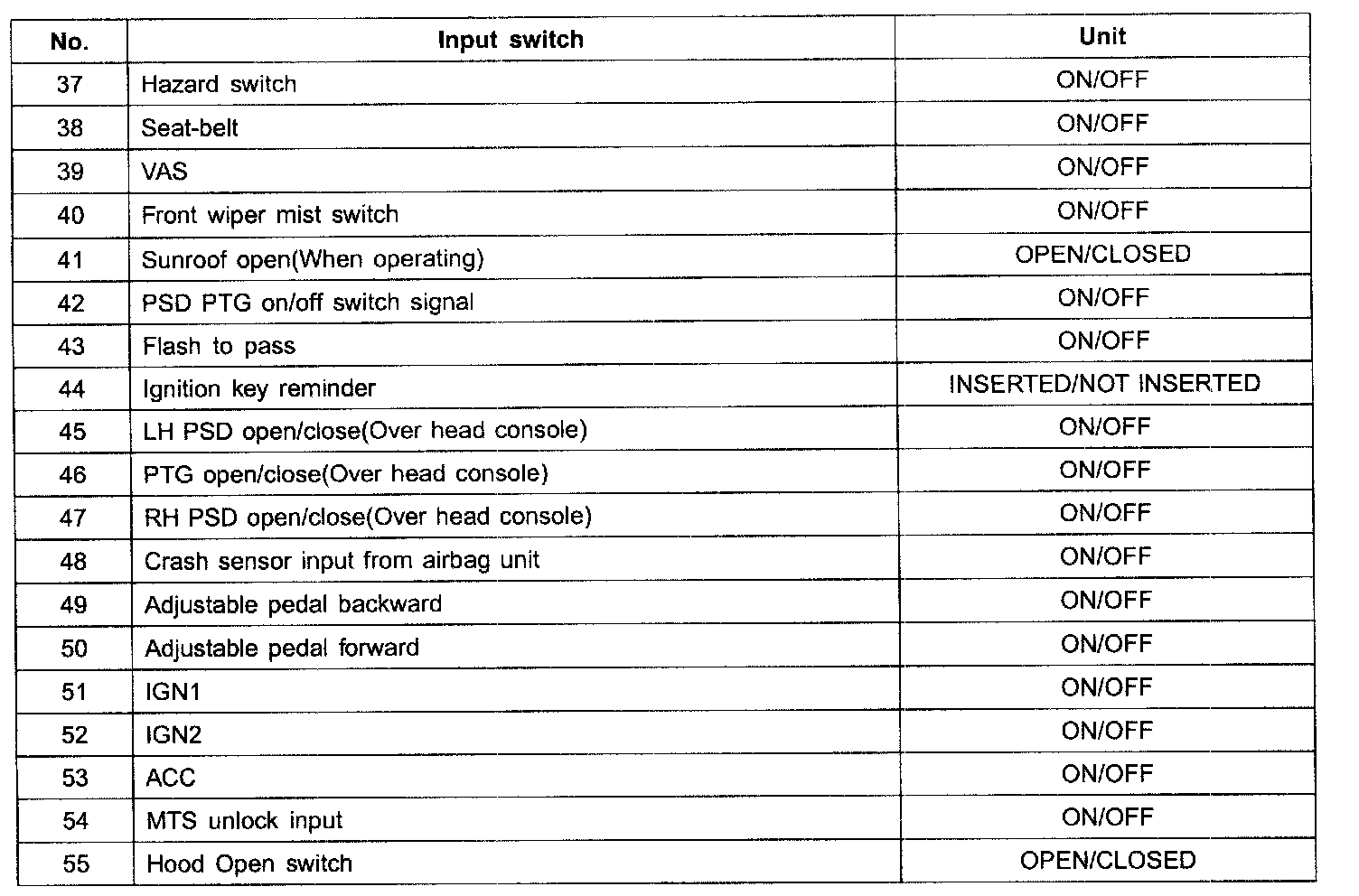

IPM (In-Panel Module) Part 2:

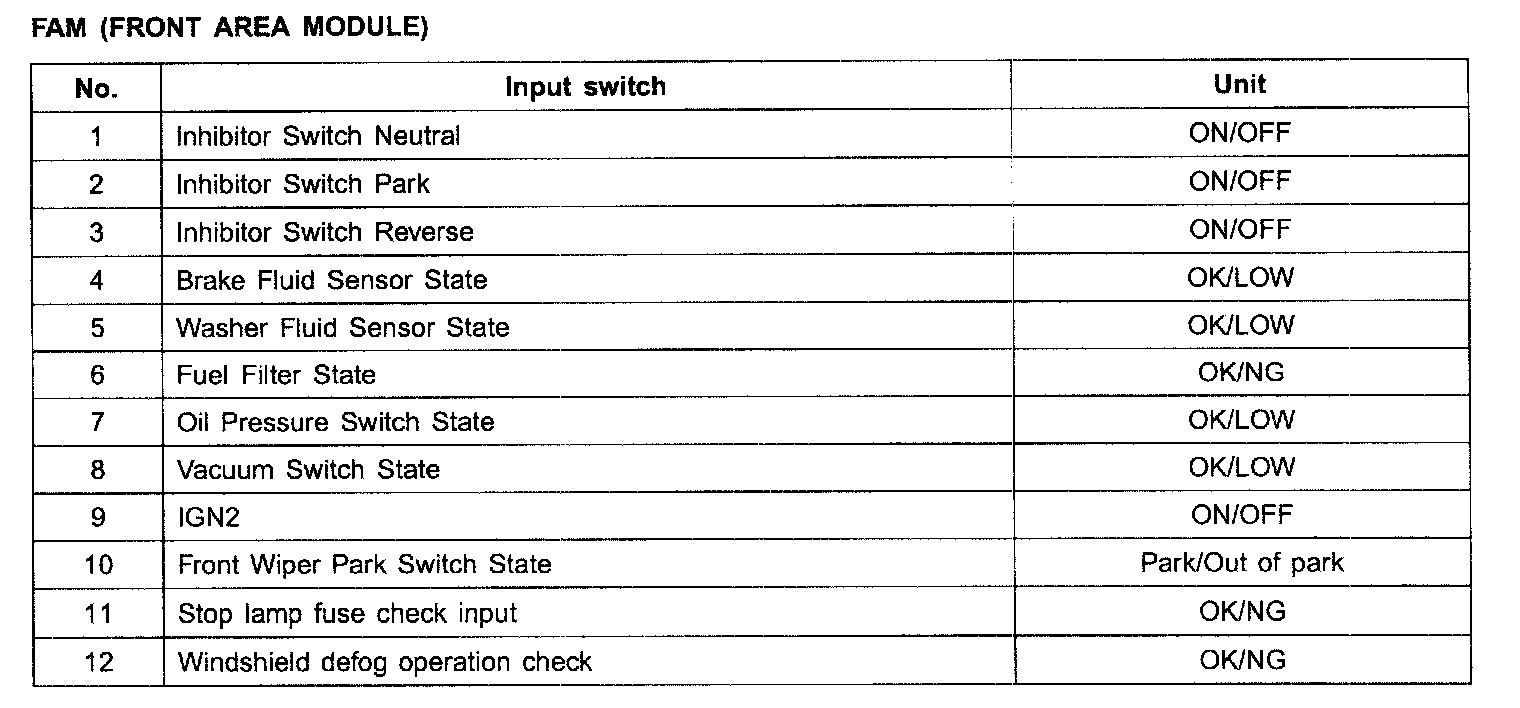

FAM (Front Area Module):

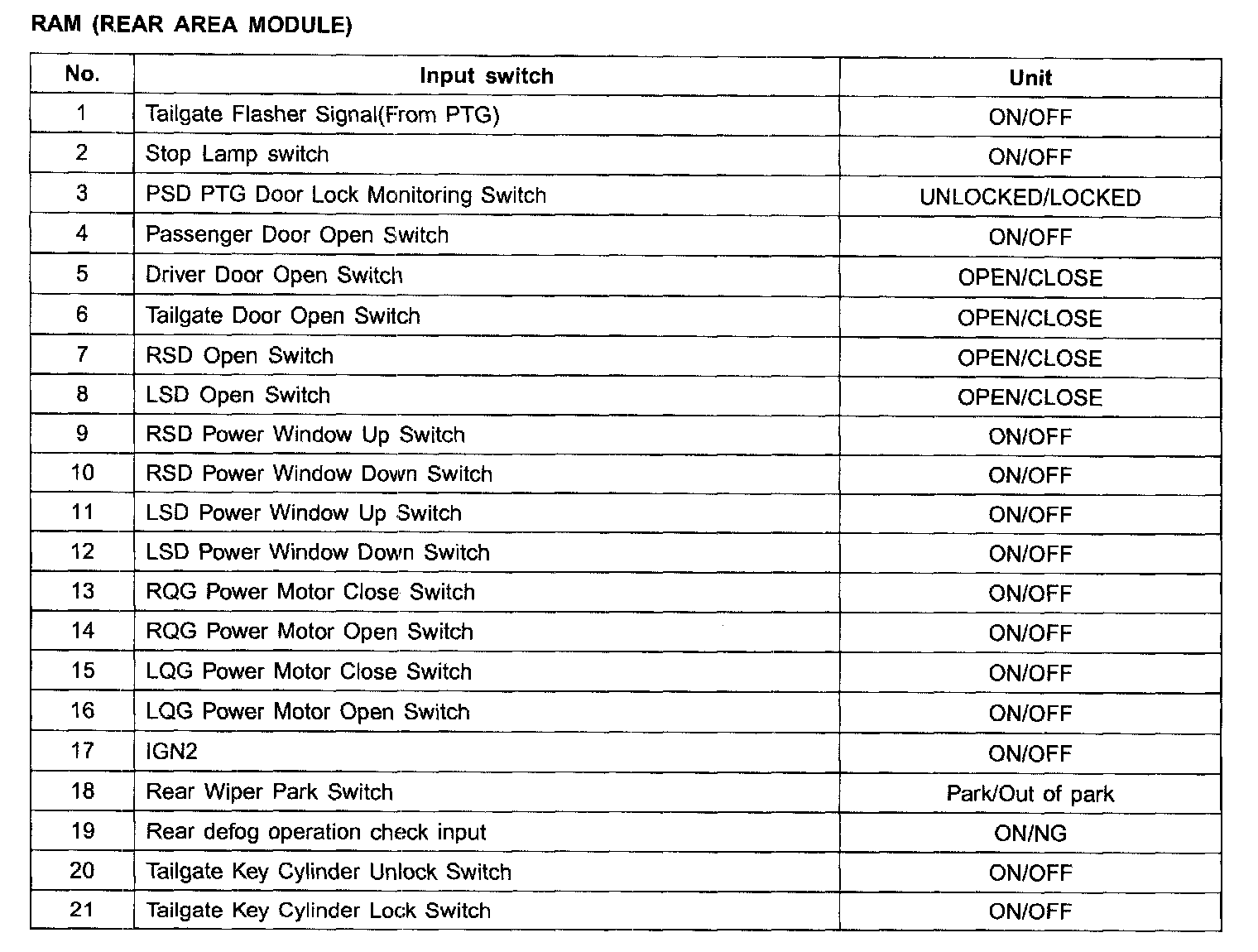

RAM (Rear Area Module):

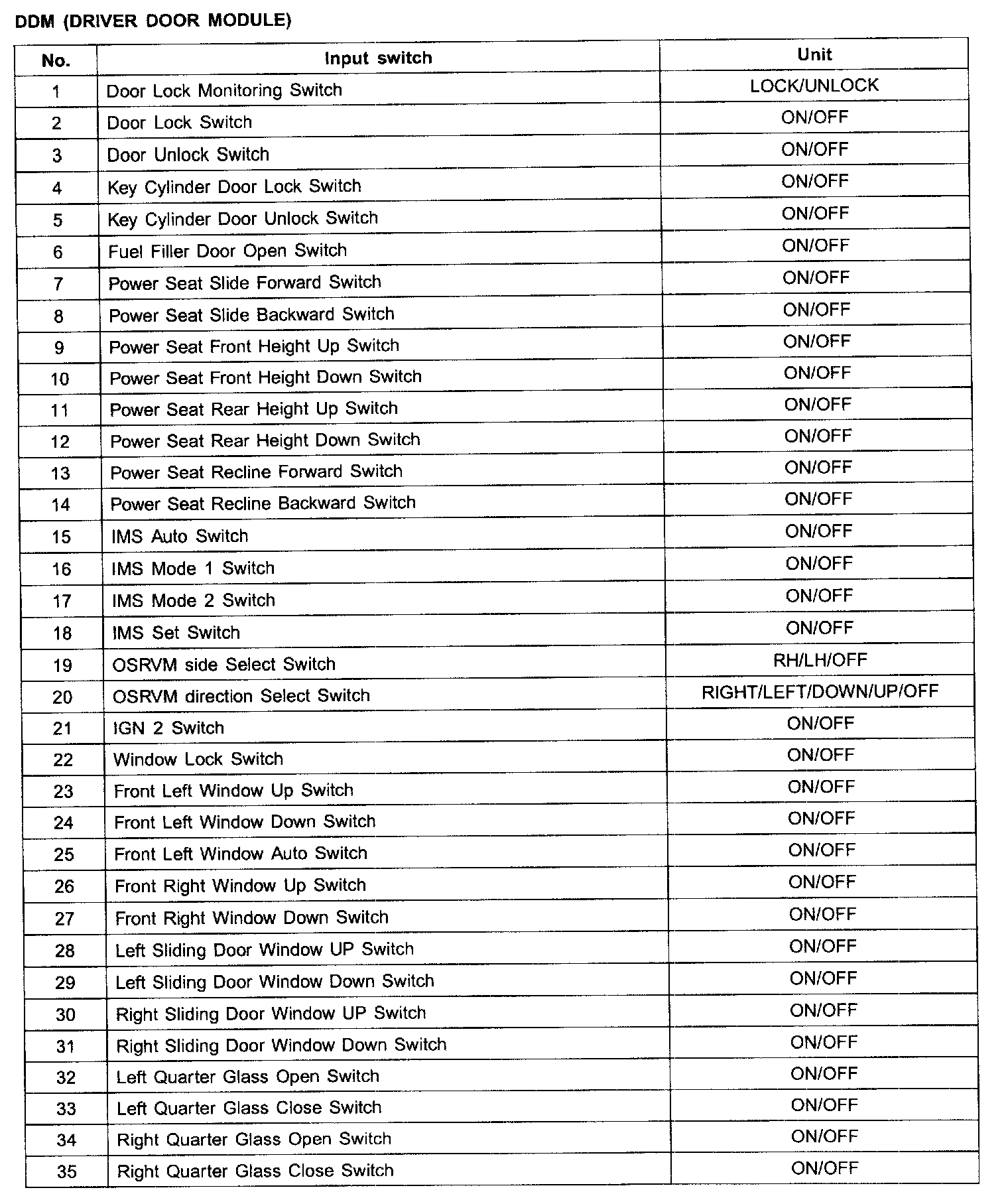

DDM (Driver Door Module):

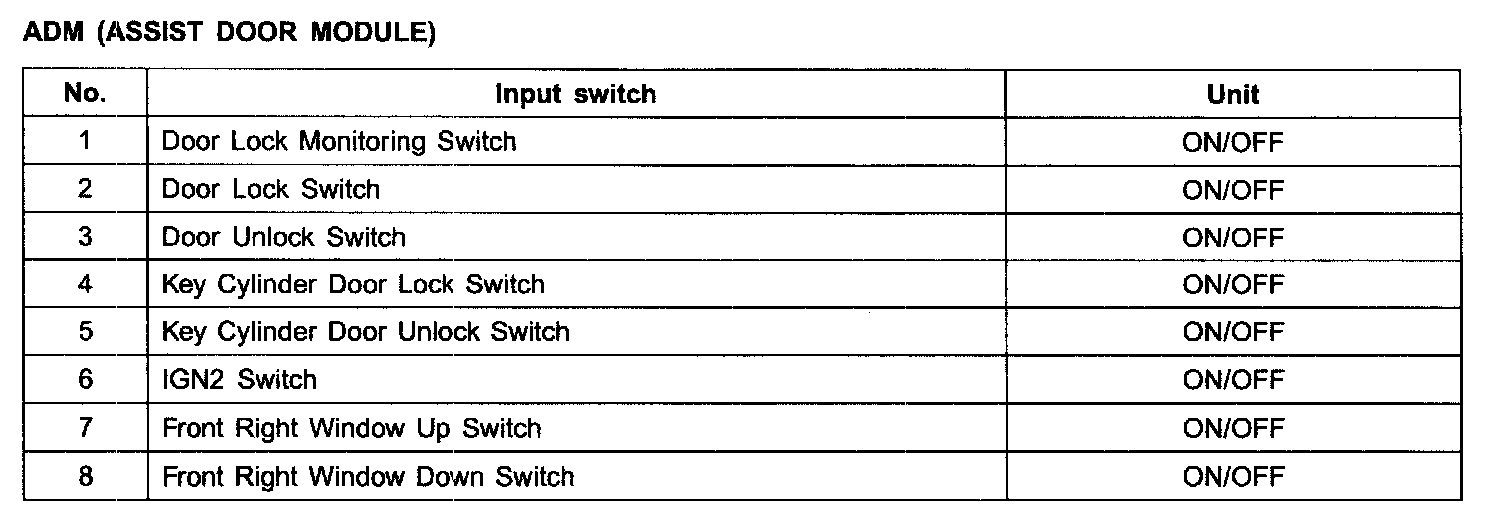

ADM (Assist Door Module):

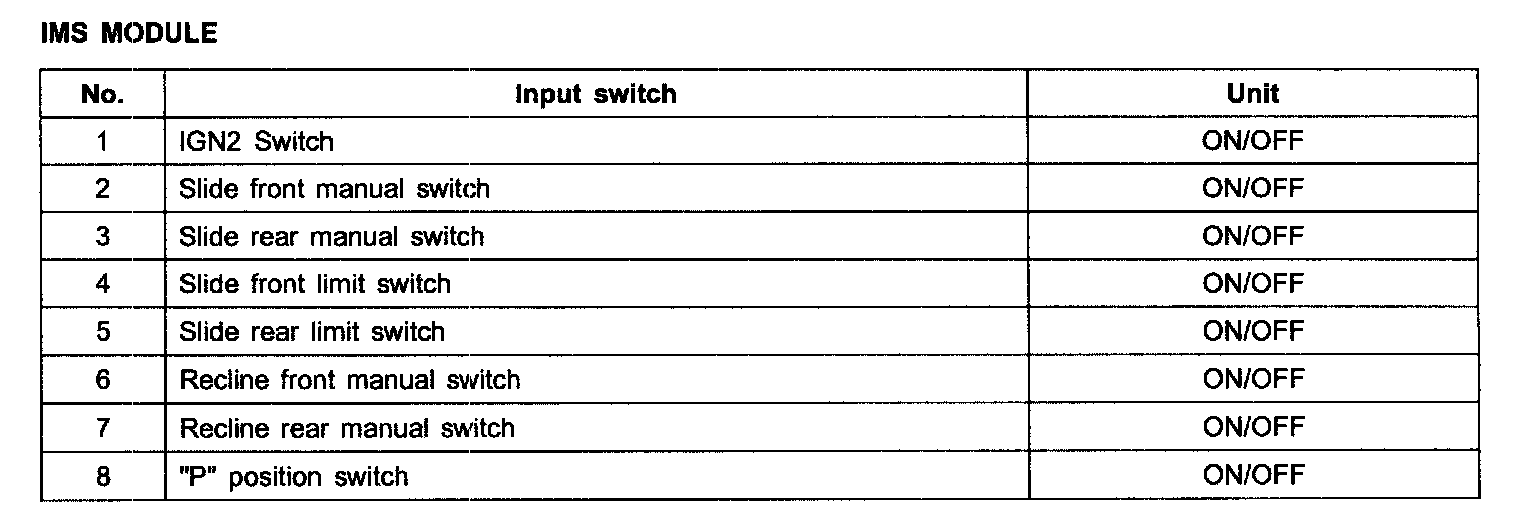

IMS Module:
