Outside Handle Replacement
OUTSIDE HANDLE REPLACEMENT 1.
Remove the
tailgate trim.
2.
After loosening the mounting bolt and nuts, then remove the
tailgate garnish (A).
3.

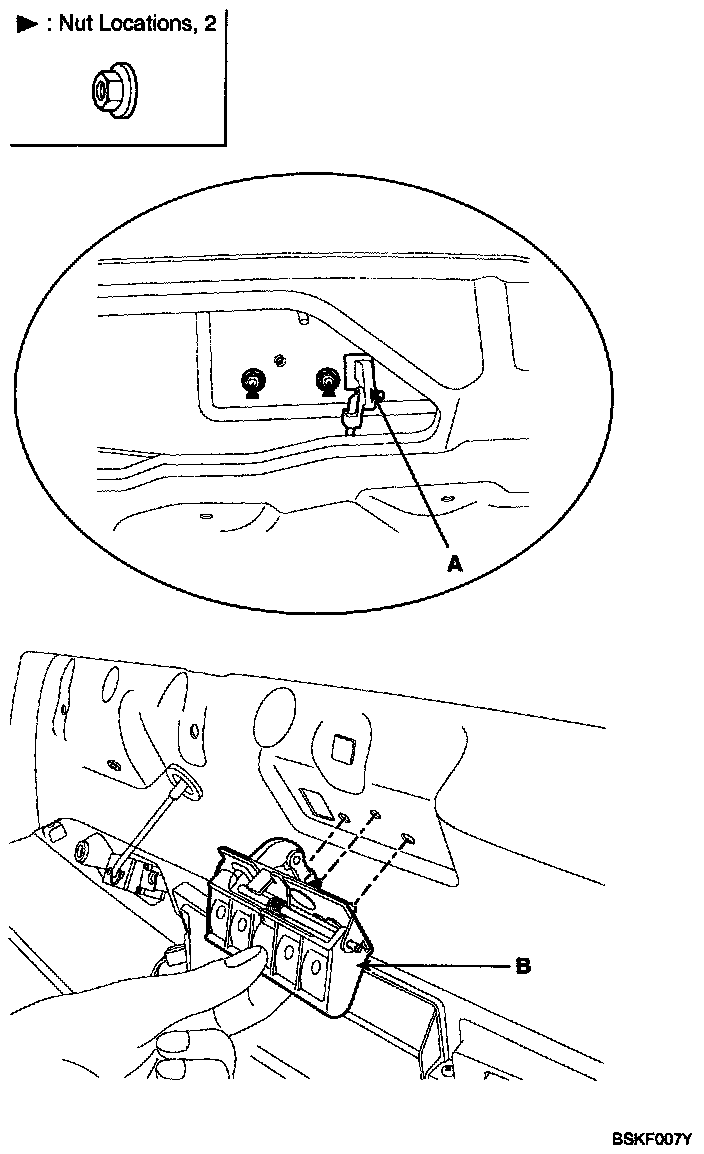

Disconnect the outside handle rod (A).
4.
Loosen the outside handle (B) mounting bolts.
5.
Installation is the reverse of removal.
NOTE: Make sure the
tailgate opens properly and locks securely.
