Power Tailgate Motor Assembly Replacement

POWER TAILGATE MOTOR ASSEMBLY REPLACEMENT

1. Remove the rear seat assembly.
2. Remove the luggage trim.
3. Disconnect the clip (A), remove the tailgate lifter (B).

4. Disconnect the connector.

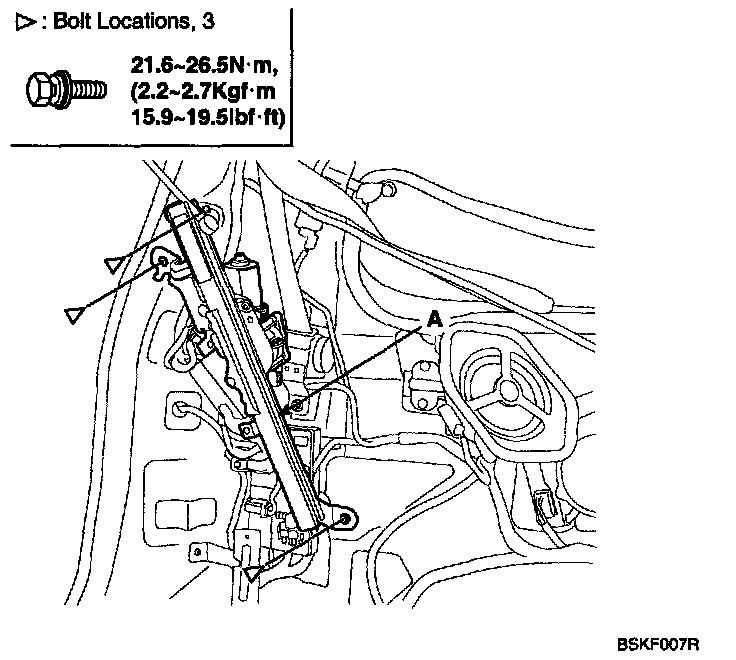

5. After loosening the mounting bolts, then remove the tailgate motor assembly (A).

6. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
- Make sure the tailgate opens properly and locks securely.
