Power Door Lock Actuator: Testing and Inspection

POWER DOOR LOCK ACTUATORS

INSPECTION

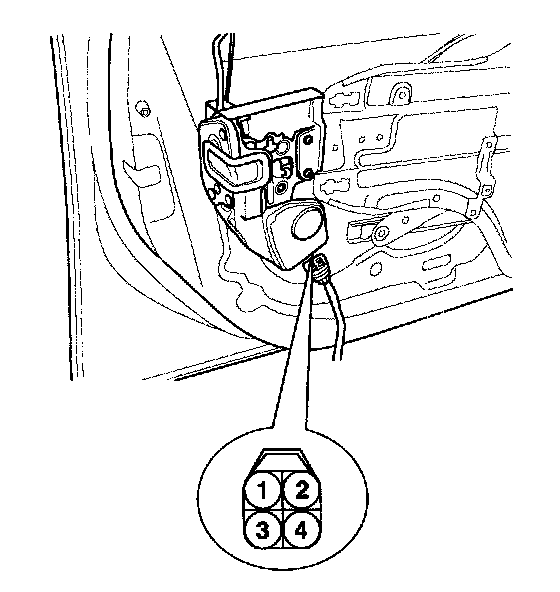

FRONT DOOR LOCK ACTUATOR
1. Remove the front door trim panel.

2. Disconnect the 4P connector from the actuator.

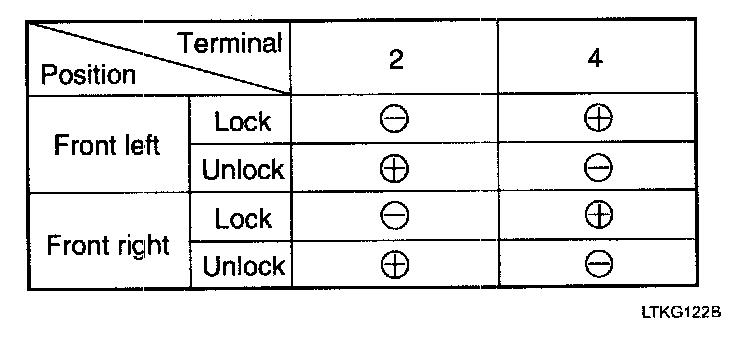

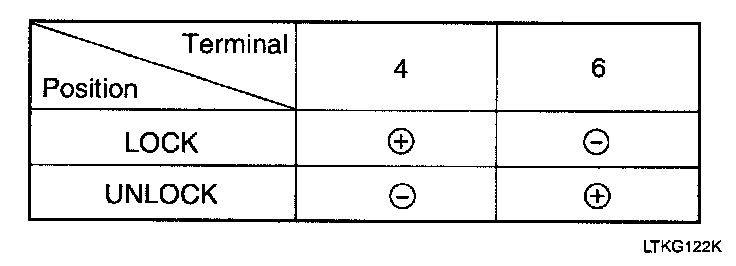

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

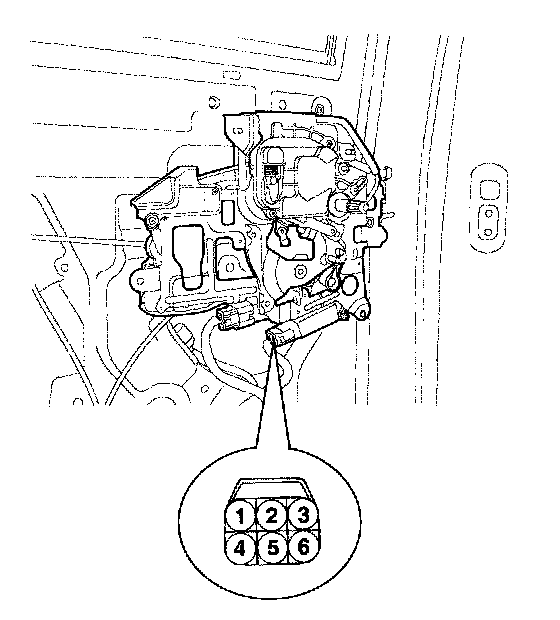

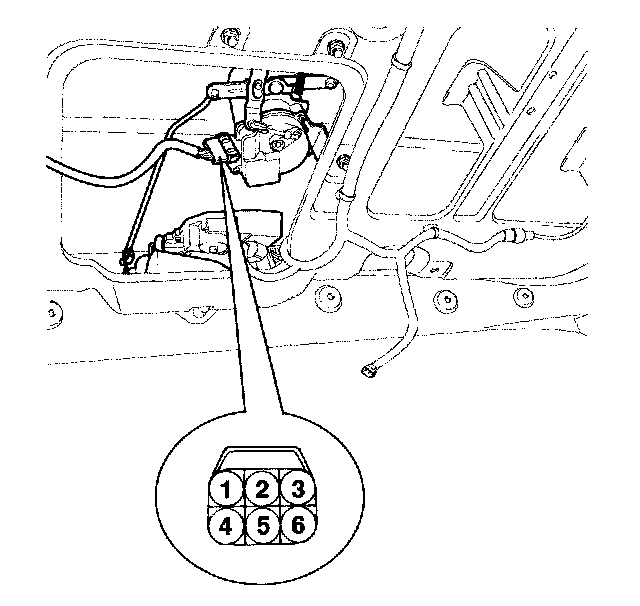

SLIDING DOOR LOCK ACTUATOR
1. Remove the sliding door trim panel.

2. Disconnect the 6P connector from the actuator.

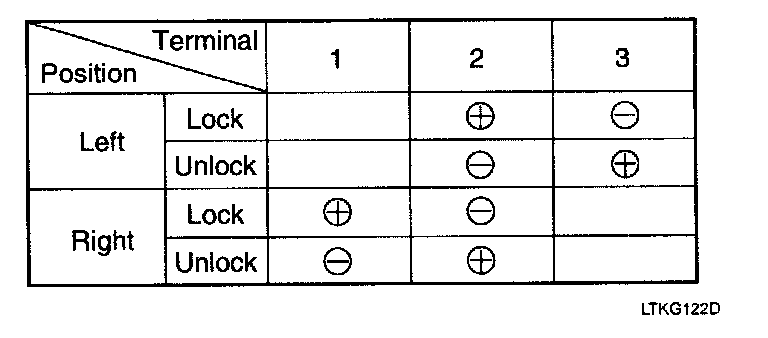

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

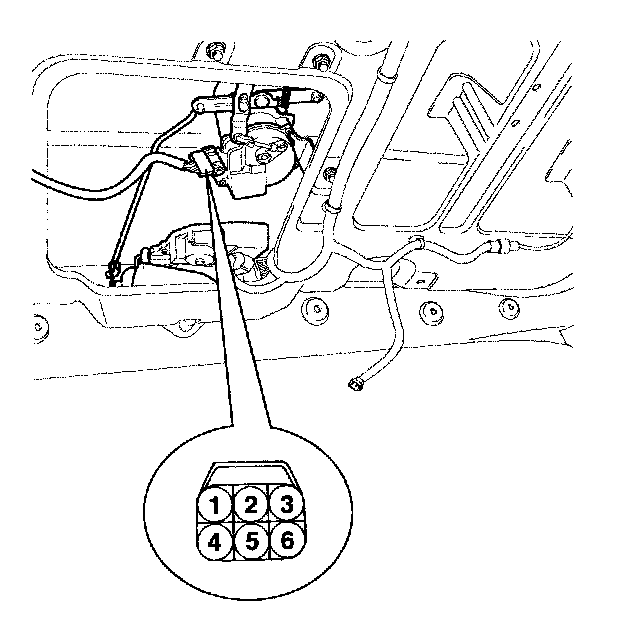

TAILGATE LOCK ACTUATOR
1. Remove the tailgate trim panel.

2. Disconnect the 6P connector from the actuator.

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

FRONT DOOR LOCK SWITCH
1. Remove the front door trim panel.

2. Disconnect the 6P connector from the actuator.

3. Check for continuity between the terminals in each switch position according to the table.

SLIDING DOOR LOCK SWITCH
1. Remove the rear door trim panel.

2. Disconnect the 6P connector from the actuator.

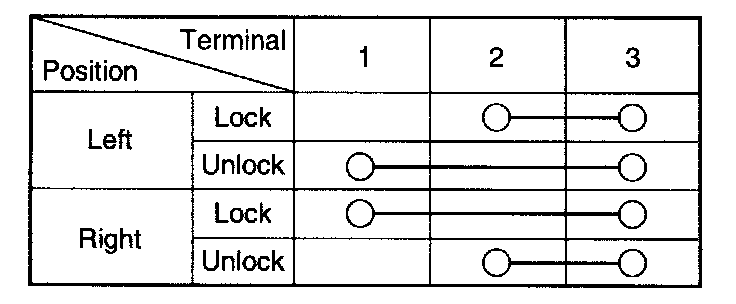

3. Check for continuity between the terminals in each switch position according to the table.

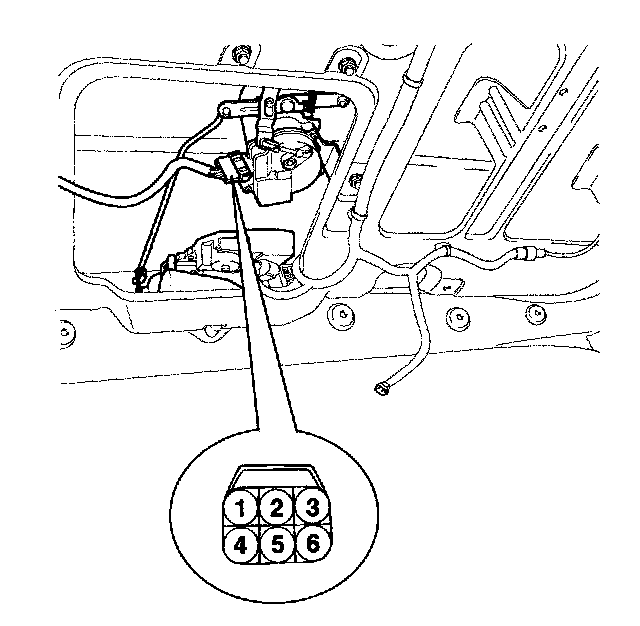

TAILGATE LOCK SWITCH
1. Remove the tailgate trim panel.

2. Disconnect the 6P connector from the actuator.

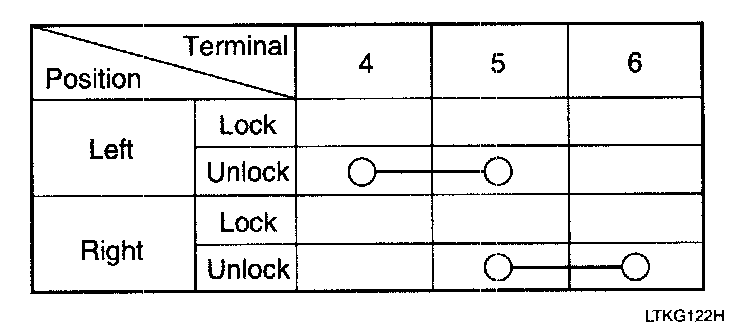

3. Check for continuity between the terminals in each switch position according to the table.

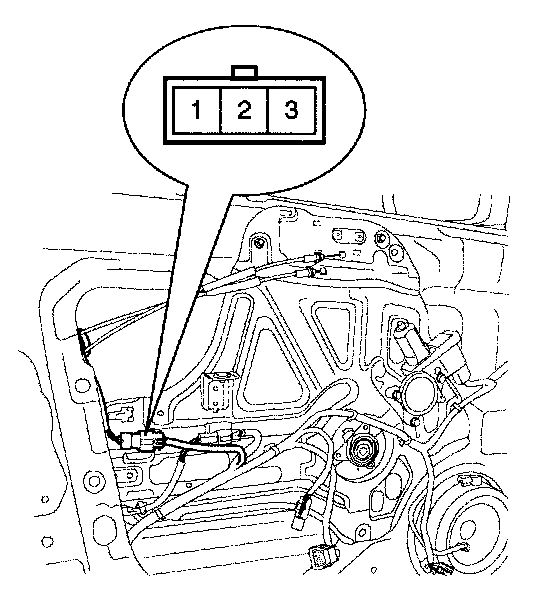

FRONT DOOR KEY SWITCH
1. Remove the front door trim panel.

2. Disconnect the 3P connector from the actuator.

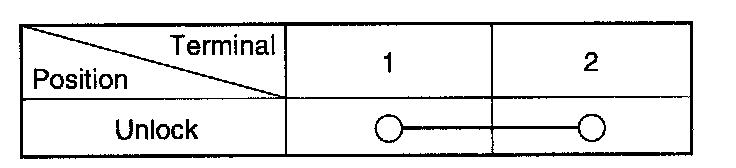

3. Check for continuity between the terminals in each switch position according to the table.

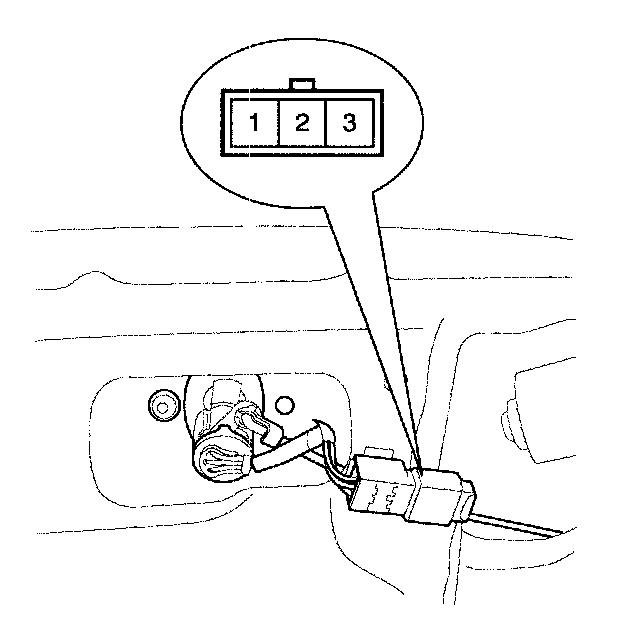

TAILGATE KEY SWITCH
1. Remove the tailgate trim panel.

2. Disconnect the 3P connector from the actuator.

3. Check for continuity between the terminals in each switch position according to the table.
