Recliner Cover Replacement

RECLINER COVER REPLACEMENT

1. Remove the recliner lever (B) and cover (A).

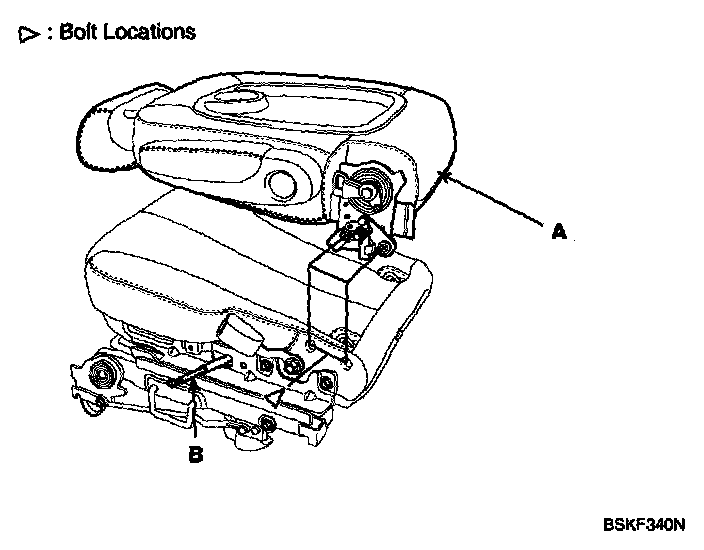

2. Loosen the mounting bolts, then remove the seat back assembly (A).
3. Disconnect the auto tumble cable (B).
