Disassembly

CYLINDER HEAD ASSEMBLY

DISASSEMBLY

NOTE: Identify MLA, valves and valve springs as they are removed so that each item can be reinstalled in its original position.

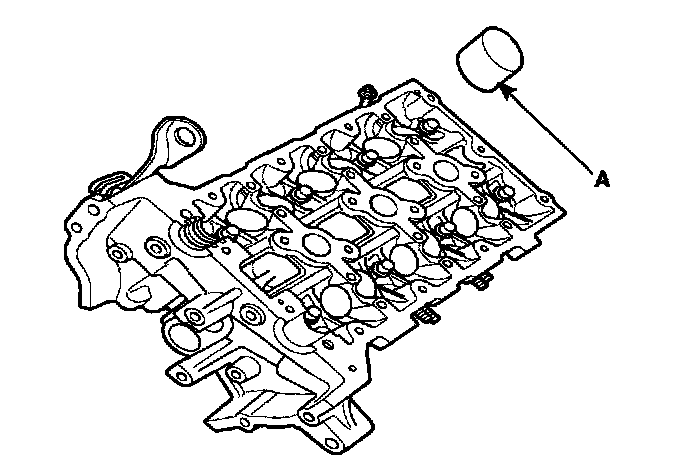

1. Remove MLAs(A).






2. Remove valves.

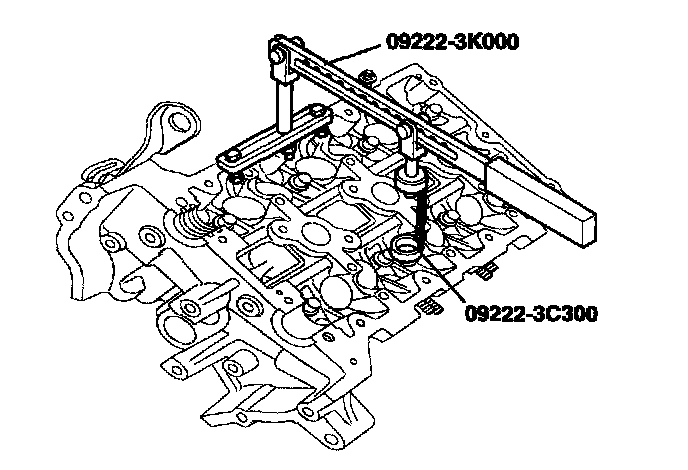

1) Using SST(09222-3K000, 09222-3C300), compress the valve spring and remove retainer lock.






2) Remove the spring retainer.
3) Remove the valve spring.
4) Remove the valve.
5) Using SST(09222-29000), remove the valve stem seal.






NOTE: Do not reuse old valve stem seals.

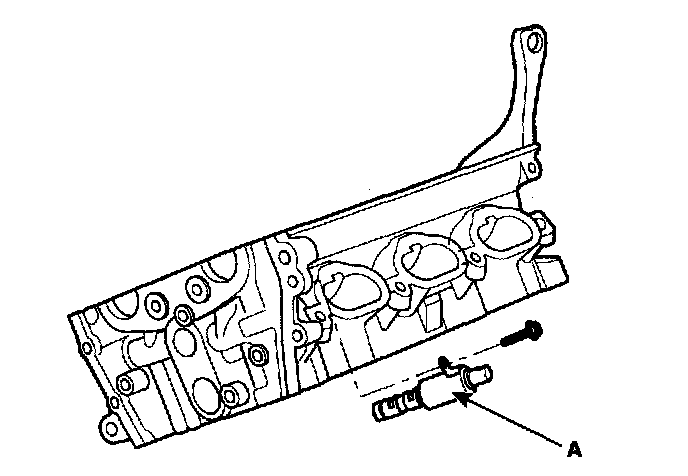

3. Remove OCV(A).
