Refrigerant Pressure Sensor / Switch: Testing and Inspection
APT (A/C PRESSURE TRANSDUCER)INSPECTION 1.

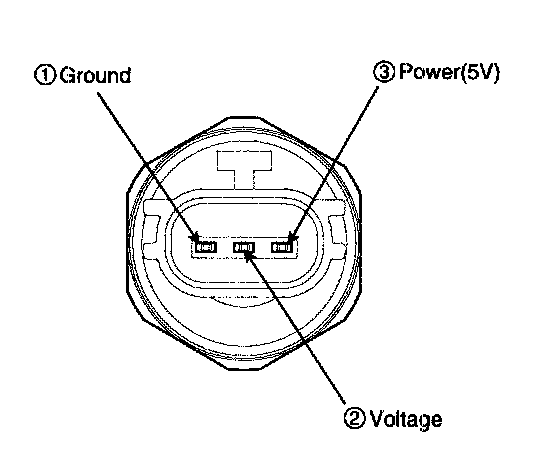

Measure the pressure of high pressure line by measuring voltage output between No. 1 and No. 2 terminals.
2.
Inspect the voltage value whether it is sufficient to be regular value or not.
Voltage = 0.00878835* Pa + 0.37081095 3.
If the measured voltage value is not specification, replace the A/C pressure transducer.
