Front Seat

SEAT FRAME REPLACEMENT

1. Remove the following items.
- Recliner cover.
- Seat back panel.
- Headrest guide.
- Seat back cover.
- Seat cushion cover.

2. Remove the clip.

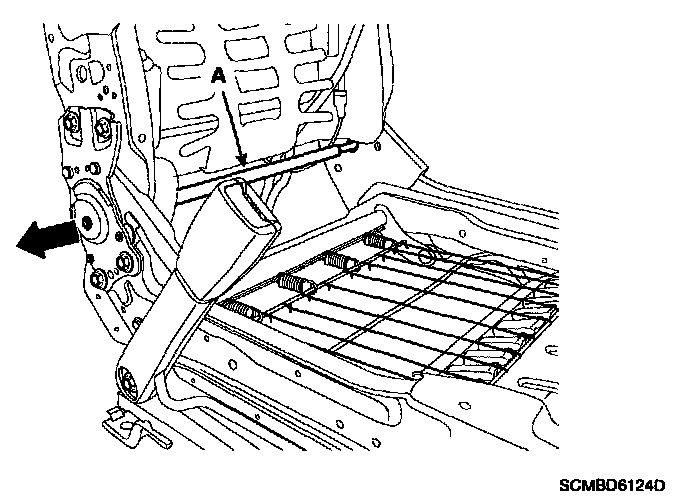

3. Remove the shift (A).

NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Be fore service, be fully aware of precautions and service procedure relevant to air bag.






4. After loosening the mounting bolts, then disconnect the seat back frame (A) and seat cushion frame (B).






5. Installation is the reverse of removal.

NOTE: Be sure to perform PODS re-zero with Hi-scan (pro) after replacing parts (Passenger's)
