Radiator: Service and Repair

RADIATOR

REMOVAL
1. Drain the engine coolant. Remove the radiator cap to speed coolant draining.
2. Remove the air duct.
3. Remove the upper radiator hose(A) and lower radiator hose.





4. Disconnect the radiator fan connector.(A, B)

LH





RH





5. Remove the radiator grill upper cover-(A)





6. Remove the head lamp washer nozzle cover and front bumper.
7. Remove the radiator cap hose.(A)





8. First, remove the cooling fan.(First, separate LH side)

NOTE: Remove the bracket bolt of radiator lower hose.

9. Remove the radiator bracket bolt of the radiator upper side(A).

LH





RH





10. Remove the radiator assembly from the engine.

INSTALLATION

1. Install the engine from radiator assembly

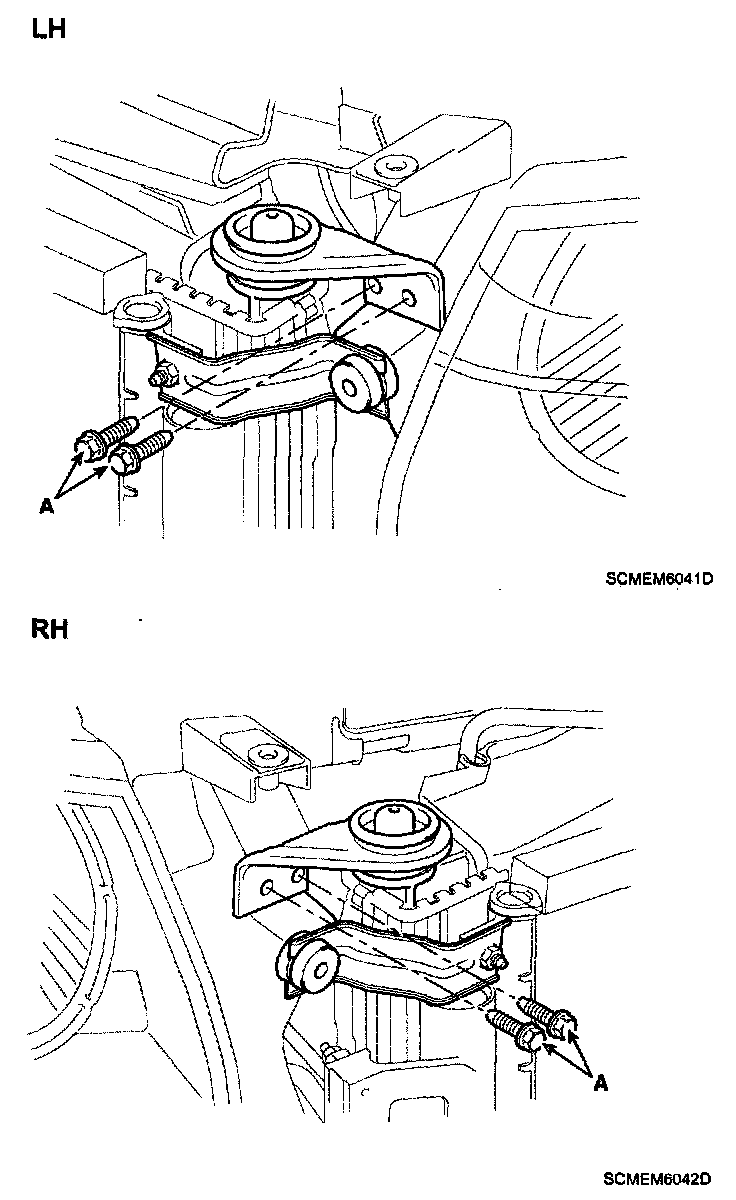

2. Install the radiator bracket bolt.(A)

LH, RH





3. Install the cooling fan.
4. Install the radiator cap hose.(A)





5. Install the front bumper and head lamp washer nozzle cover.
6. Install the radiator grill upper cover.(A)

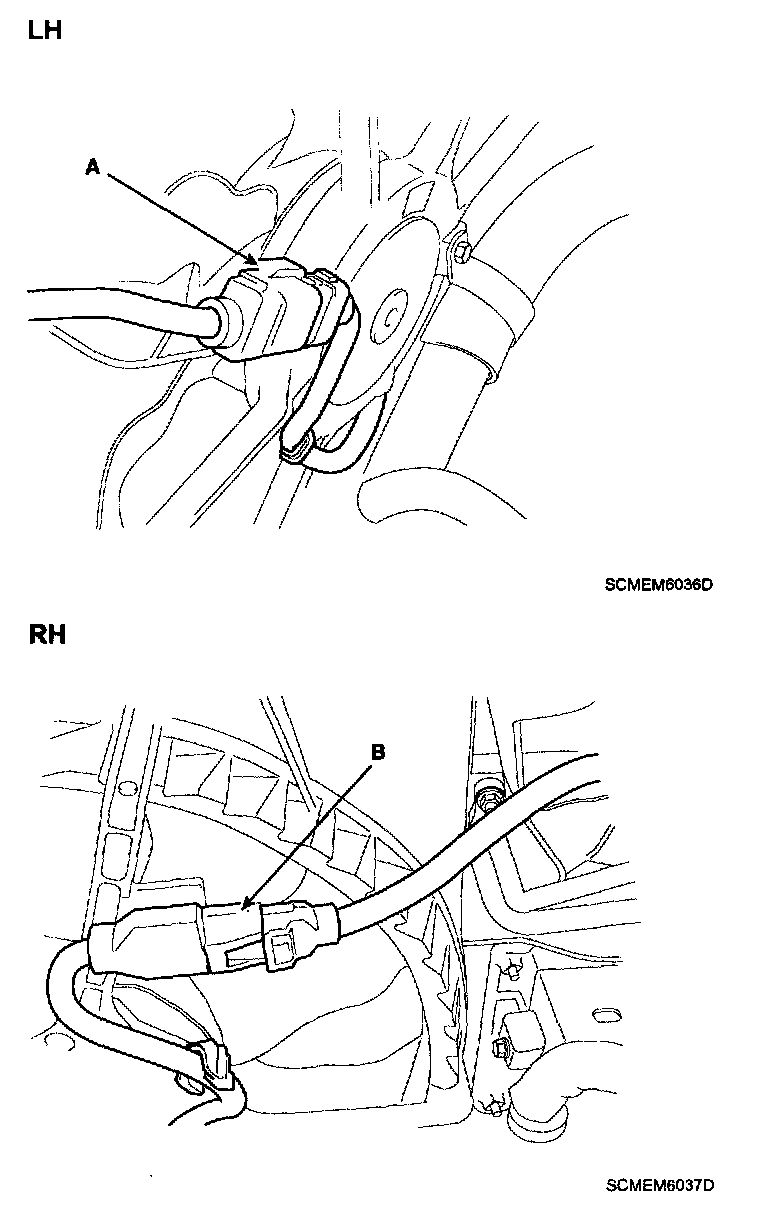

7. Connect the radiator fan connector.(A, B)

LH, RH





8. Install the upper radiator hose.(A)





9. Install the air duct.
10. Refill with engine coolant.
