Power Mosfet
POWER MOSFETINSPECTION 1.
Ignition "ON"
2.

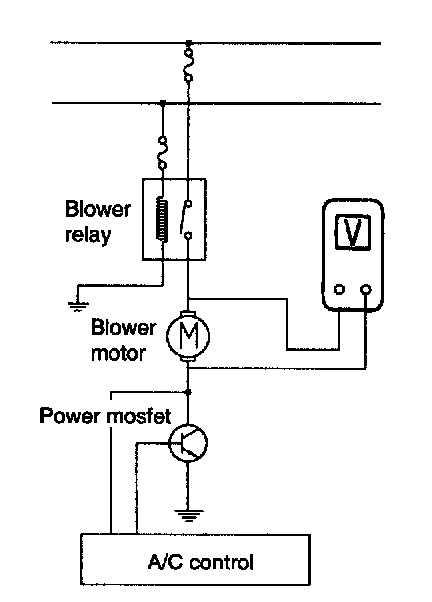

Manually operate the control switch and measure the voltage of
blower motor between pin 1 and 2.

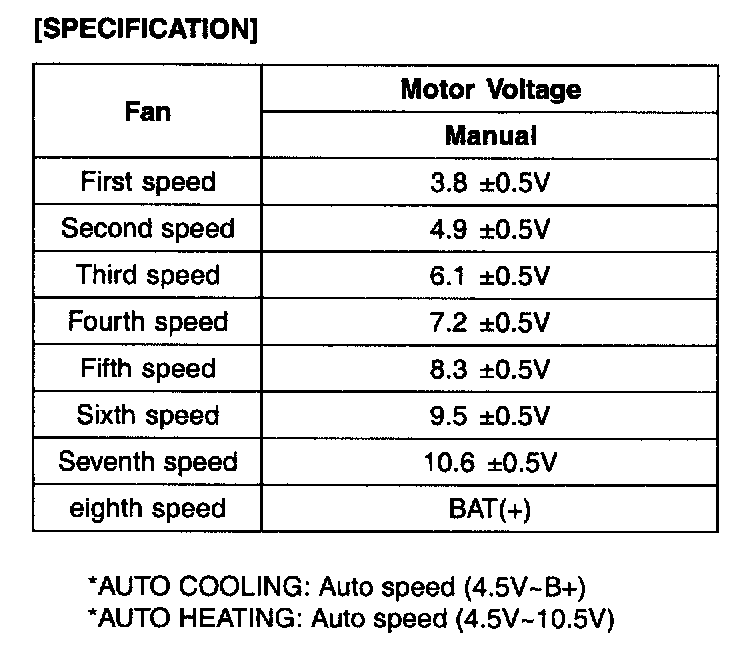

Specification:
3.
Select the control switch to raise voltage until high speed.
4.
If the measured voltage is not specification, substitute with a known-good power mosfet and check for proper operation.
5.
If the problem is corrected, replace the power mosfet.
