Front Wiper Motor

FRONT WIPER MOTOR

REPLACEMENT

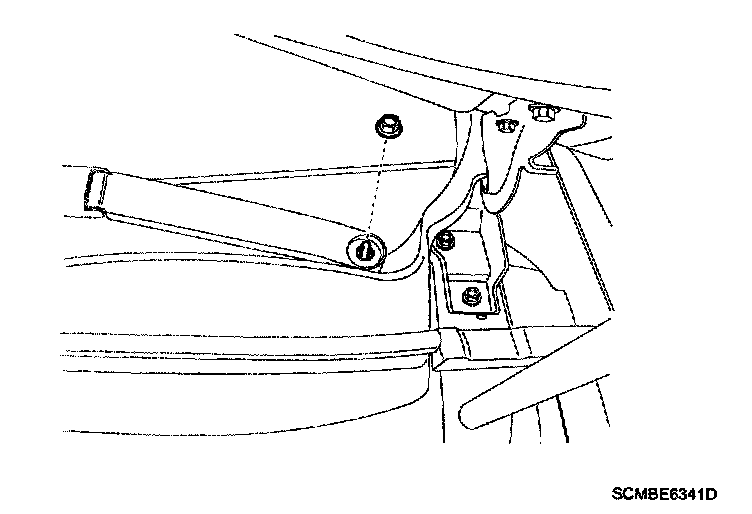

1. Remove the windshield wiper arm and blade after removing a nut (A).

TORQUE: 28-32 N.m (2.8-3.3 kgf.m, 20-23.1 lbf.ft)

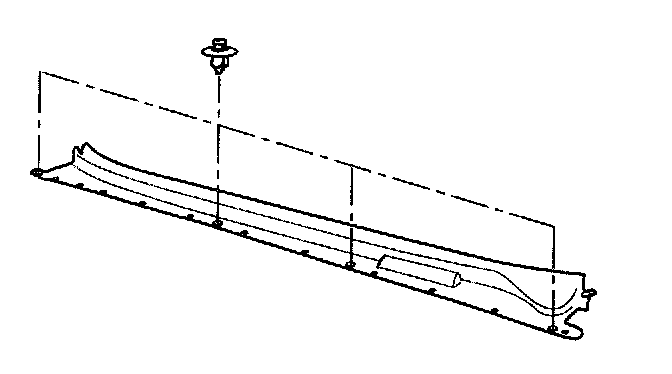

2. Remove the weather strip and the cowl top cover (A) after removing 4 retainers.

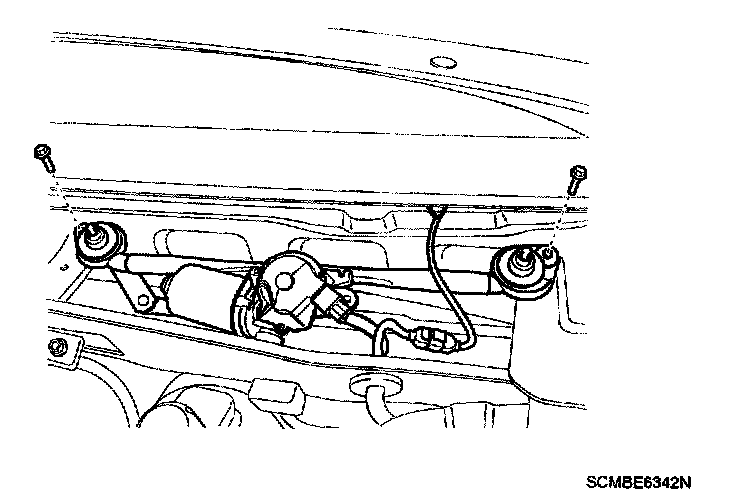

3. Remove the windshield wiper motor and linkage assembly after removing 2 bolts. Disconnect the wiper motor connector and windshield deicer connector from the wiper motor & linkage assembly.

TORQUE: 7-11 N.m (0.7-1.1, kgf.m, 5.0-7.9 lbf.ft)

4. Installation is the reverse of removal.
