Radiator: Service and Repair

RADIATOR

1. Drain the engine coolant.

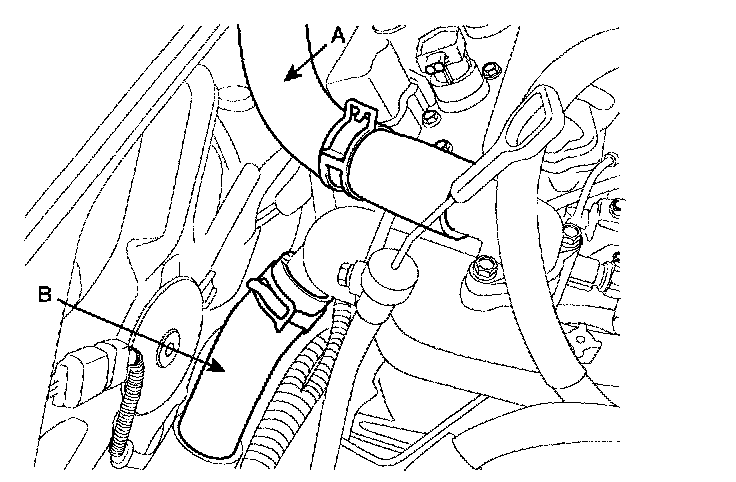

2. Disconnect radiator upper and lower hoses(A, B).

3. Disconnect transaxle oil cooler hoses.
4. Remove radiator bracket.
5. Remove radiator assembly.

INSTALLATION
1. Install radiator assembly.
2. Install radiator upper bracket.
3. Connect transaxle oil cooler hoses.
4. Connect radiator upper and lower hoses(A, B).

5. Fill with engine coolant.
6. Start engine and check for leaks.
7. Recheck engine coolant level.
