Oil Pan, Engine

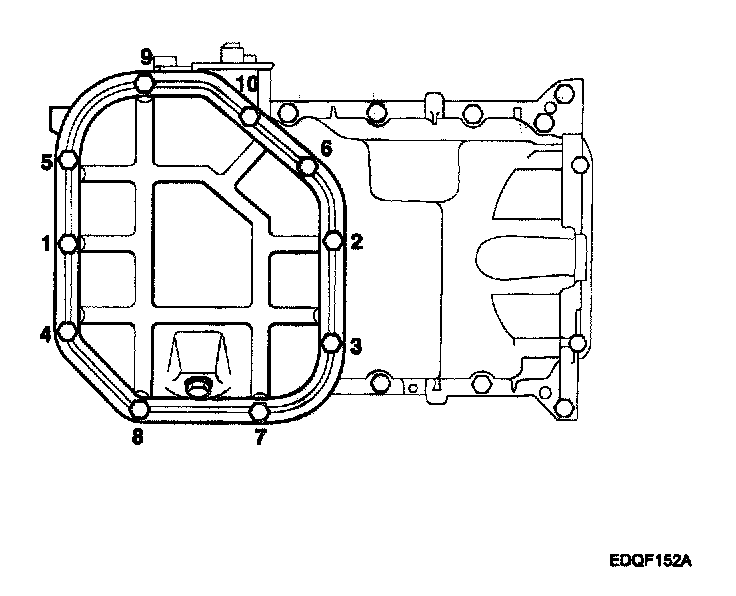

Lower
oil pan bolt
9.8-11.8 Nm (1.0-1.2 kgf-m, 7.2-8.7 ft. lbs.)

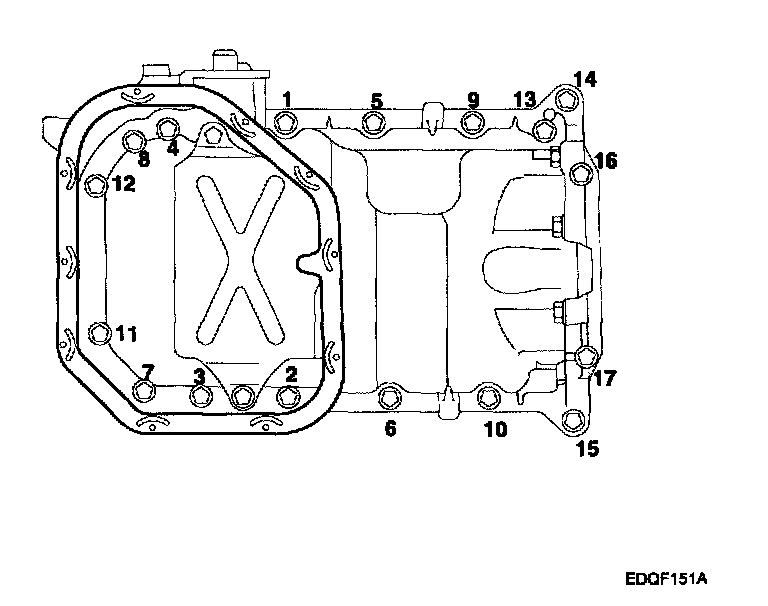

Upper
oil pan bolt
[10 x 38mm (0.937 x 1.4961 in.)]
39.2-46.1 Nm (4.0 - 4.7 kgf-m, 28.9-34.0 ft. lbs.)
[8 x 22mm (0.3150 x 0.8661 in.)]
18.6-23.5 Nm (1.9-2.4 kgf-m, 13.7-17.4 ft. lbs.)
[1 63.5mm (6.4370in.)]
4.9-6.9 Nm (0.5-0.7 kgf-m, 3.6-5.1 ft. lbs.)
[11 54.5mm (6.0827in.)]
4.9-6.9 Nm (0.5-0.7 kgf-m, 3.6-5.1 ft. lbs.)
