Floor Console Replacement

CONSOLE

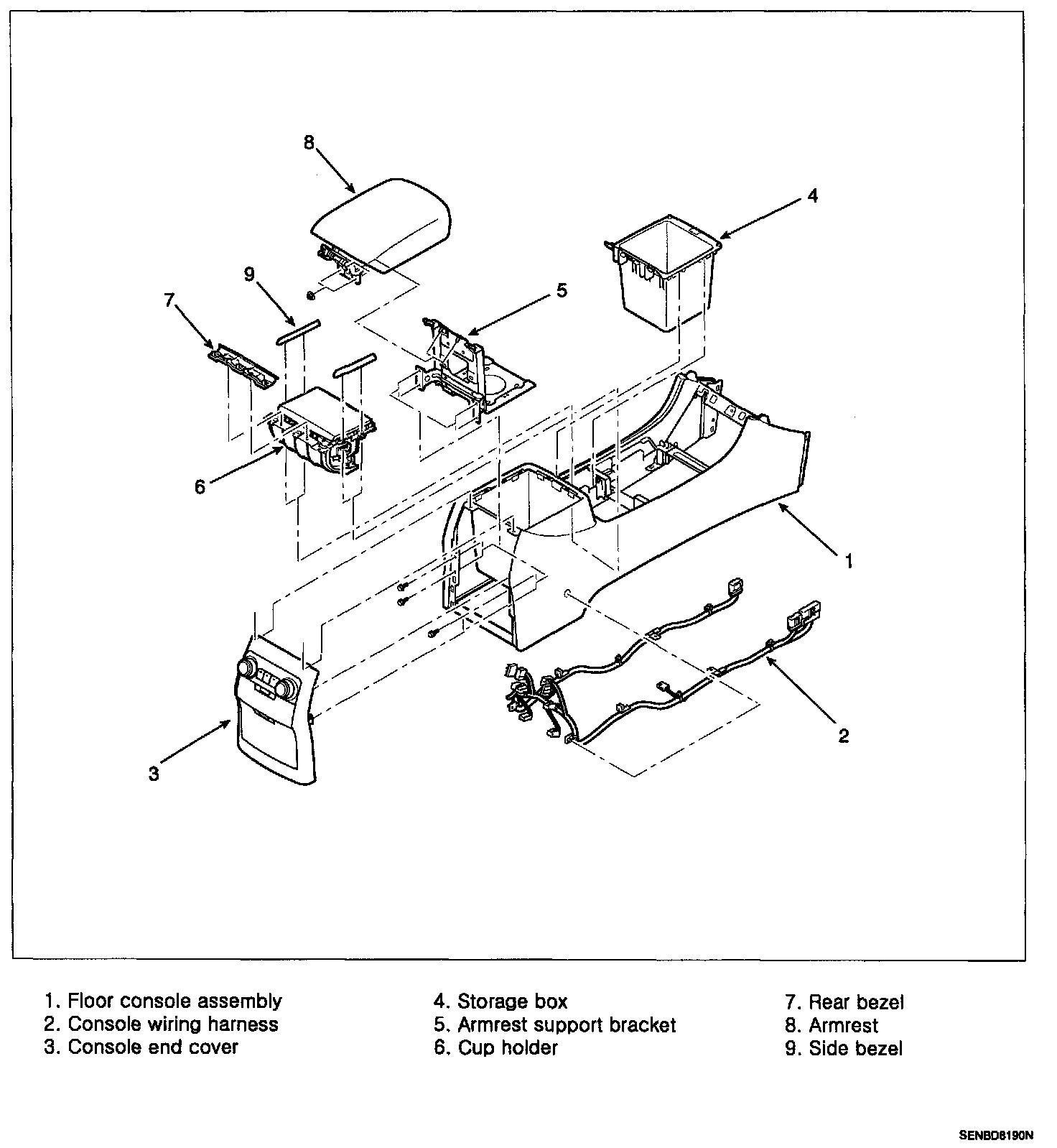

Console:






FLOOR CONSOLE REPLACEMENT

NOTE
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

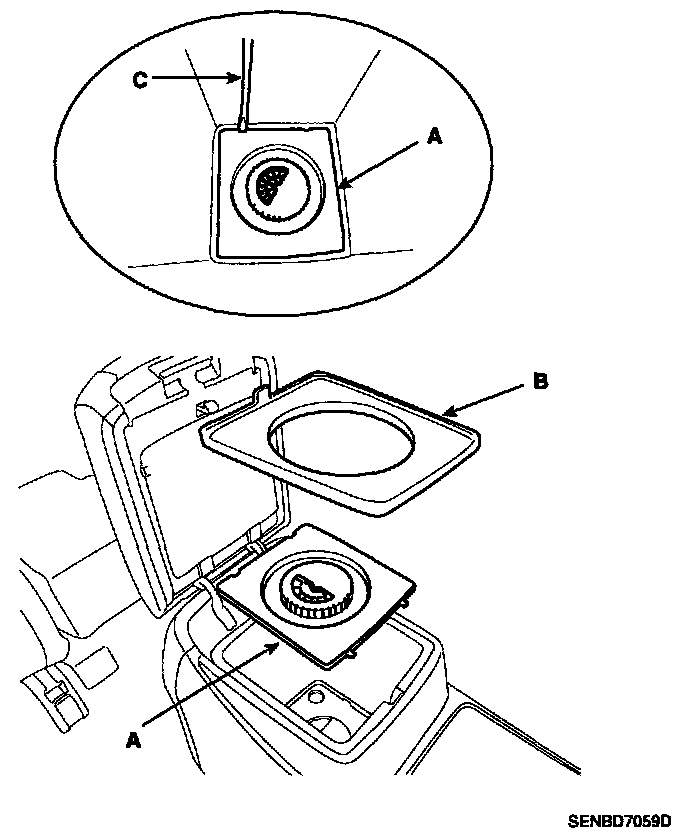

1. Remove the cover (A).






2. Remove the under cover (A).






3. Disconnect the connector (A).






4. Disconnect the connector (A).






5. Remove the mat (B).
6. Using the screwdriver, remove the cool box cover (A).






7. Remove the console extenser cover.
8. After loosening the console mounting screws, remove the floor console assembly (A).






9. Installation is the reverse of removal.

N0TE
- Make sure the connector is plugged in properly.
- Replace any damage clips.
