Rear Seat

REAR SEAT

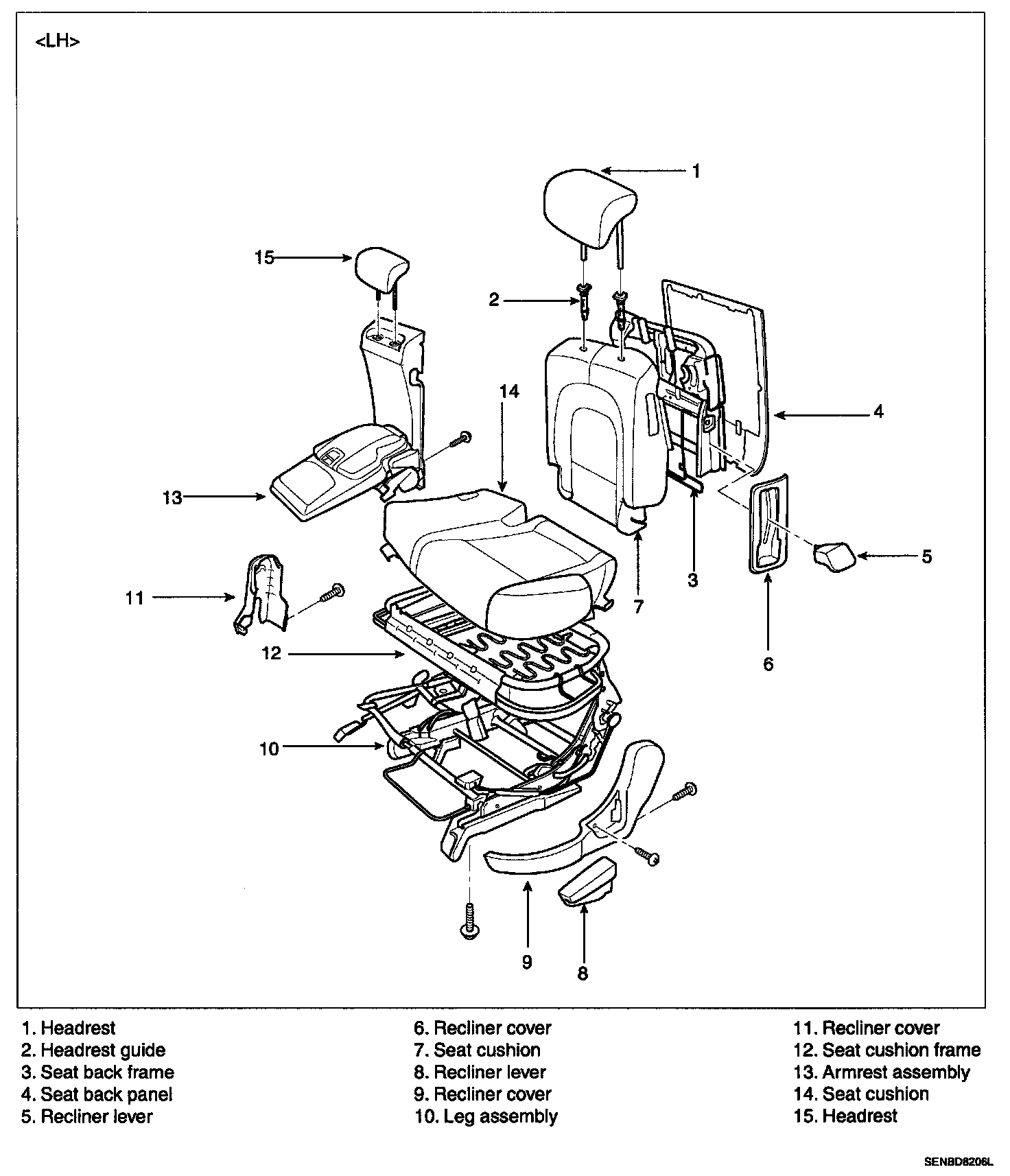

Rear Seat <LH>:

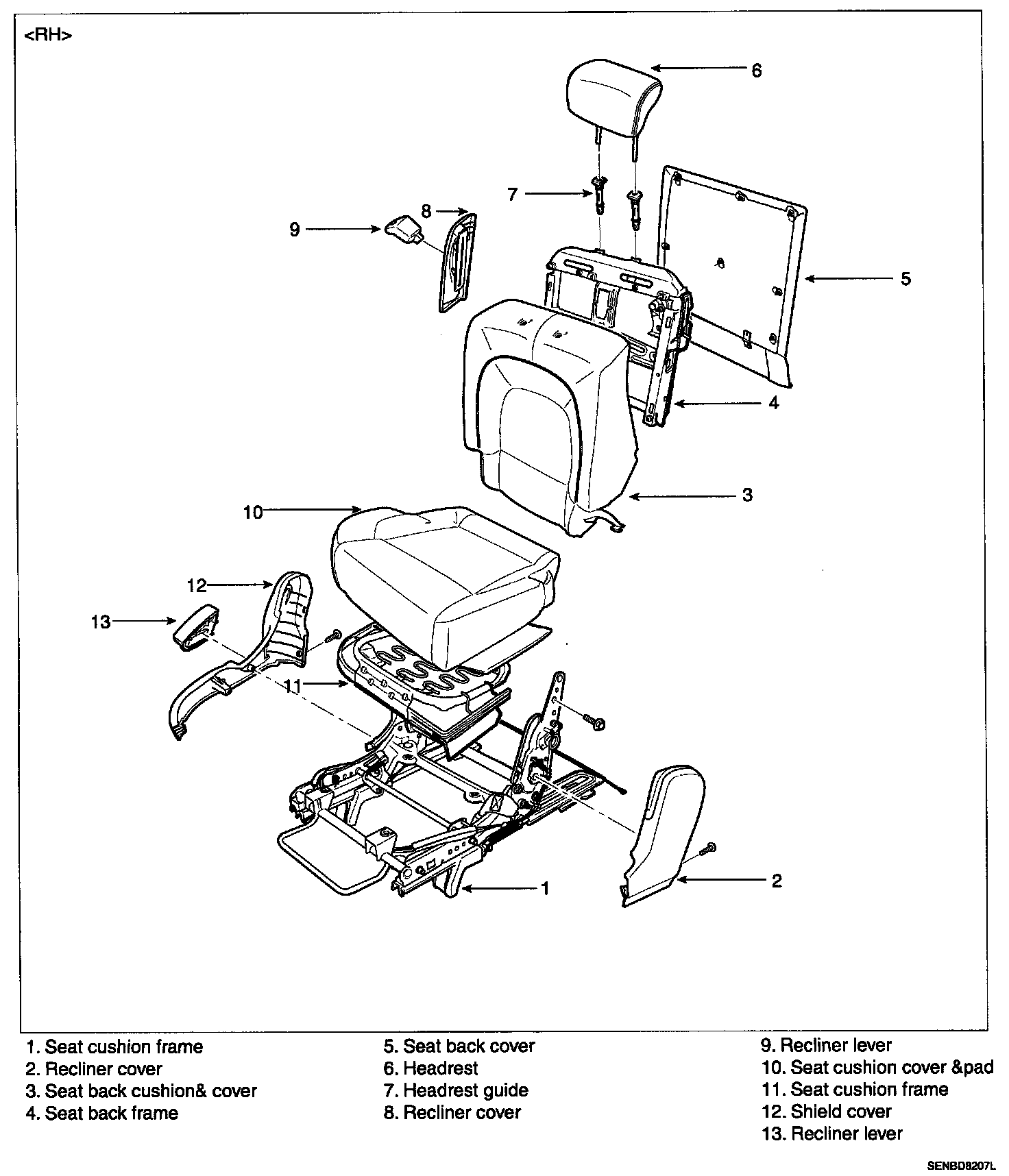

Rear Seat <RH>:






SECONDARY SEAT (L/H)

SEAT ASSEMBLY REPLACEMENT

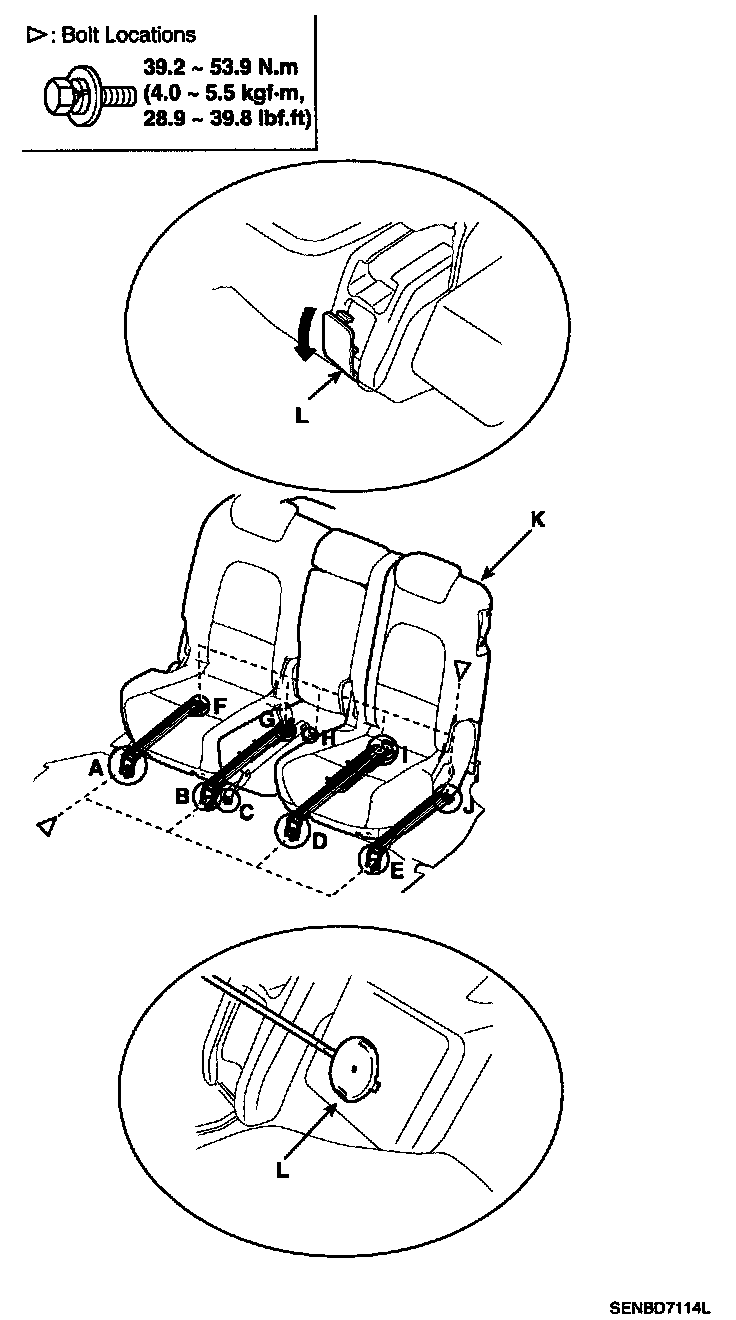

1. Disconnect the seat assembly mounting cover (L).
2. Loosen the mounting bolt, then remove the rear seat assembly (K).






3. Installation is the reverse of removal.

NOTE:
- Set the seat into the floor properly.Unbind the connecting band between the seat and slide buckle.Tighten the bolt temporarily in the order E->D->C.
- Set the seat into the most rearward position. Assemble the H, I temporally, then tighten the J completely.

And tighten the H, I completely.

- Tighten the bolt completely in the order C->D->E. Assemble the front cover of the seat and buckle. Set the seat into the most rearward position.
- Assemble the track cover of the seat and buckle buckle check that the seat operates back and forth smoothly and the locking portion of seat locks properly. And then set the seat into the most rearward position.
