Brake Pedal Assy: Service and Repair

BRAKE PEDAL

REMOVAL
1. Remove the lower crash pad.

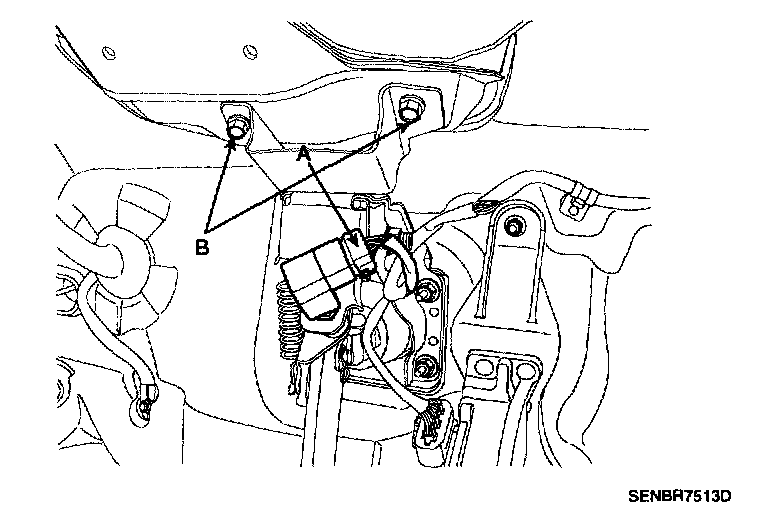

2. Disconnect the stop lamp switch connector (A).





3. Remove the mounting bracket bolts (B).
Tightening torque Nm (kgf.m, lb-ft): 16.7-25.5 (1.7-2.6, 12.3-18.8)
4. Remove the snap pin (A) and joint pin (B).





5. Remove the brake pedal member assembly mounting nuts (C) and then remove the brake pedal assembly.
Tightening torque Nm (kgf.m, lb-ft): 16.7-25.5 (1.7-2.6, 12.3-18.8)

INSTALLATION
1. Installation is the reverse of removal.

CAUTION:
^ Before installing the pin, apply the grease to the joint pin.
^ Use a new snap pin whenever installing.

2. Check the brake pedal operation.
