Water Temperature Control Assembly

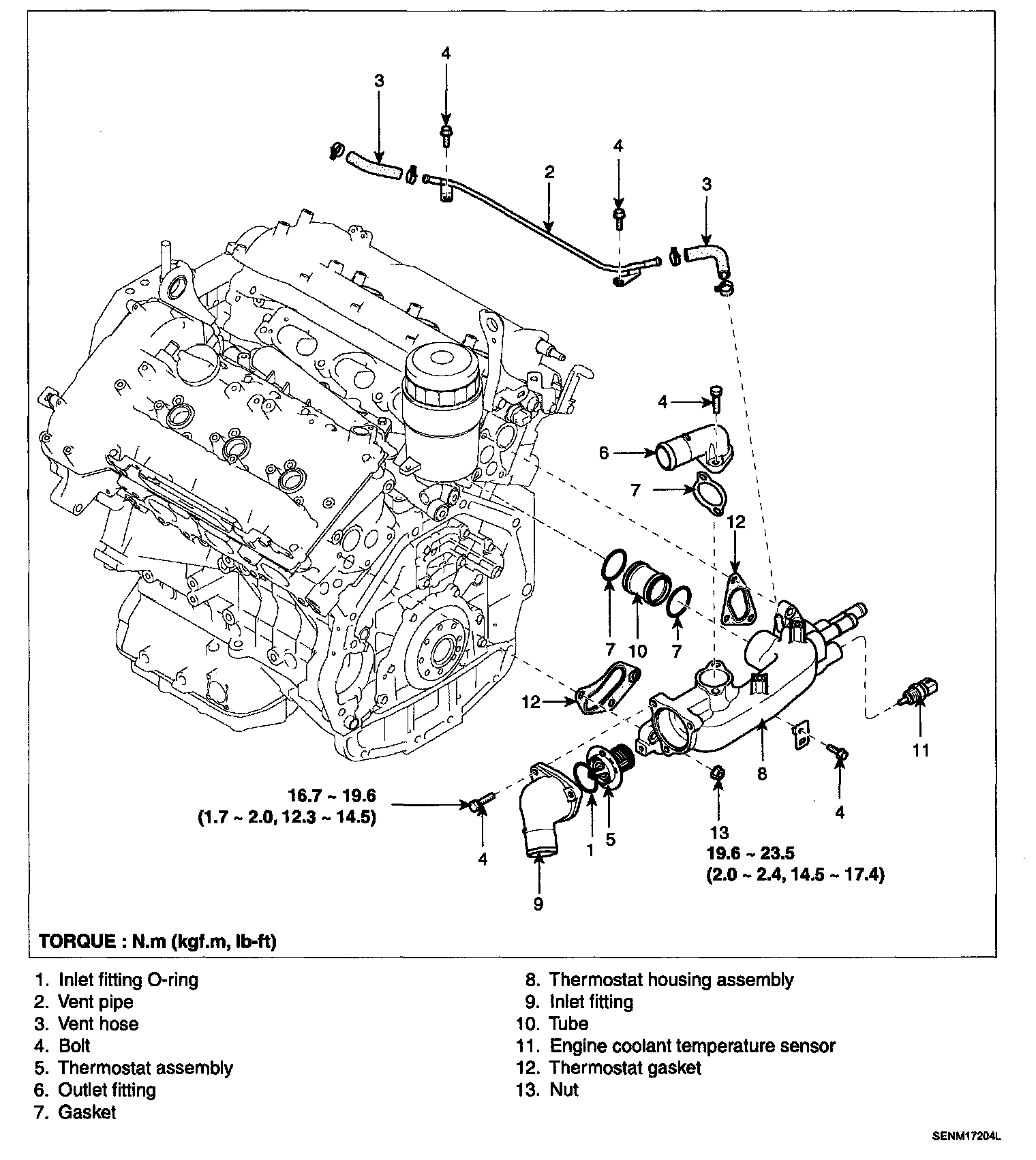

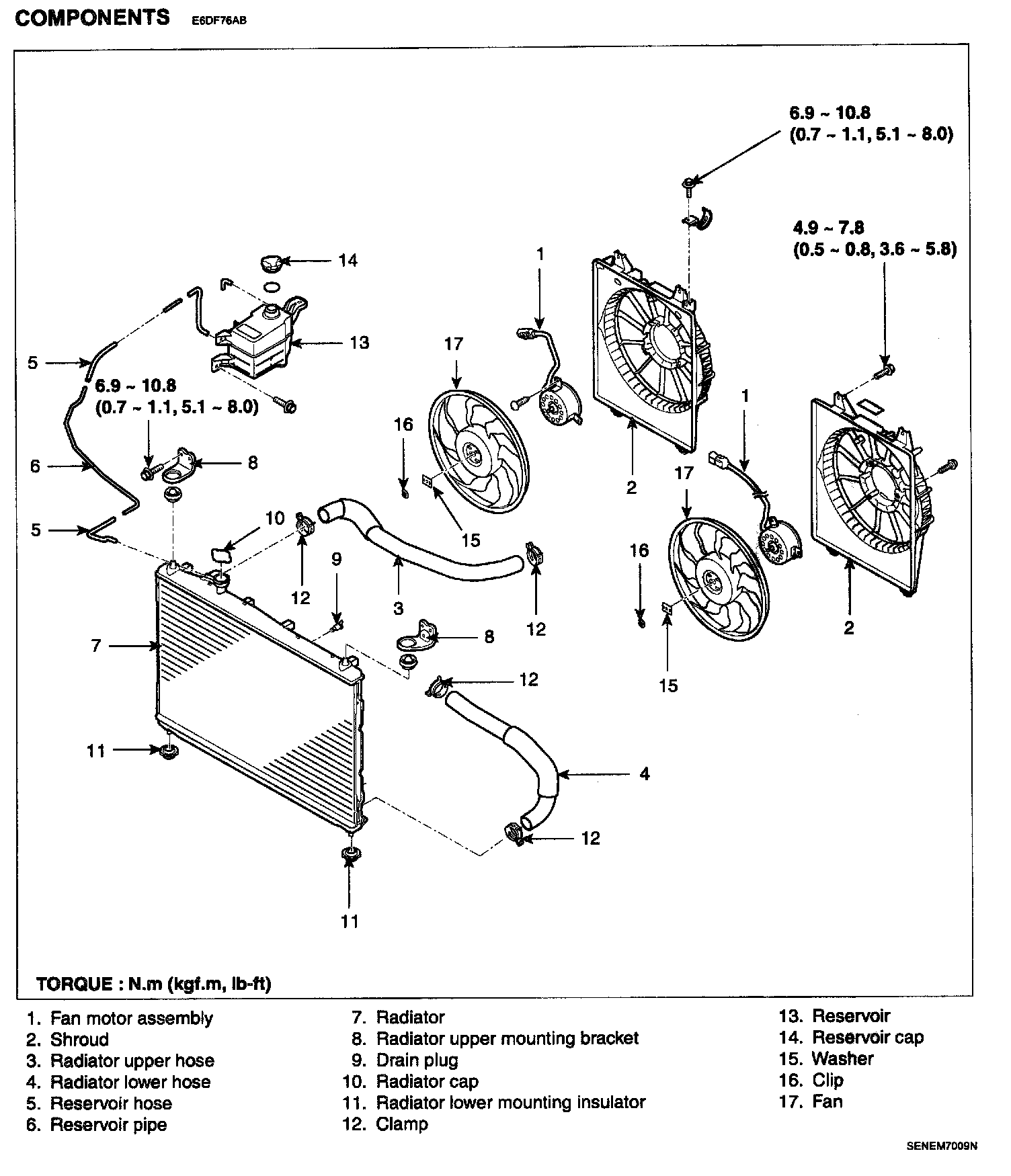

WATER TEMPERATURE CONTROL ASSEMBLYCOMPONENTS:
1. Drain the engine coolant.
2. Remove the air cleaner assembly.

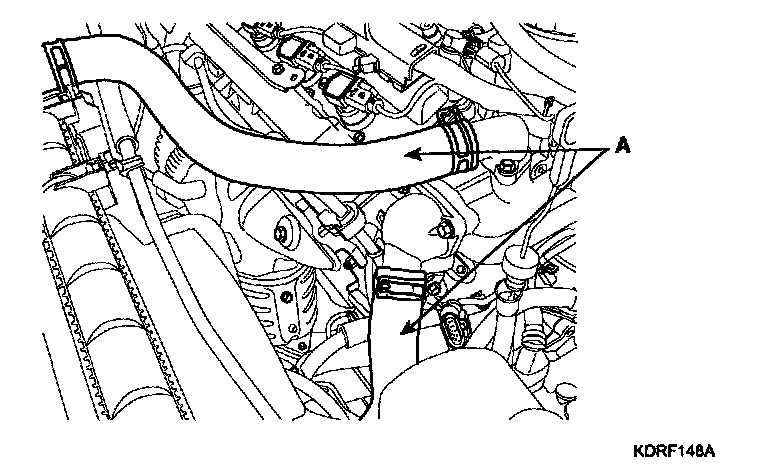

3. Disconnect the radiator upper and lower hose (A).
4. Disconnect the ECT sensor connector.
5. Disconnect the heater hose, the water vent hose and the water hose from water temperature control assembly.
6. Remove the wiring protector.

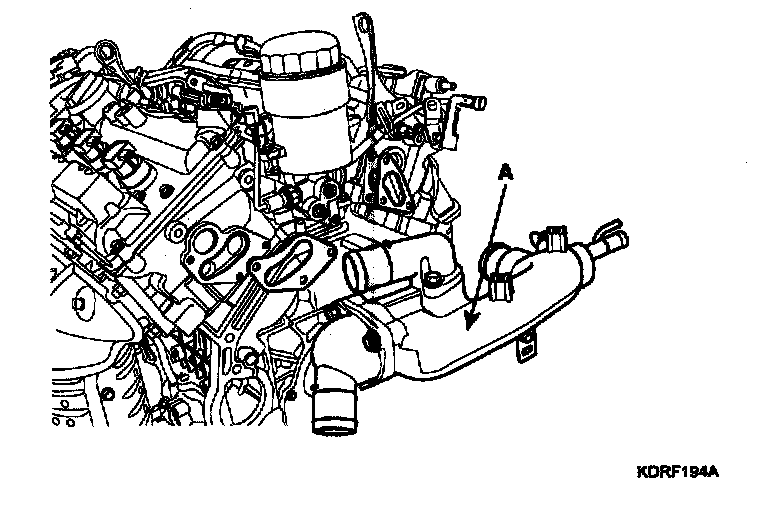

7. Remove the water temperature control assembly (A).
INSTALLATION
NOTE: Clean the contact-face before assembly.

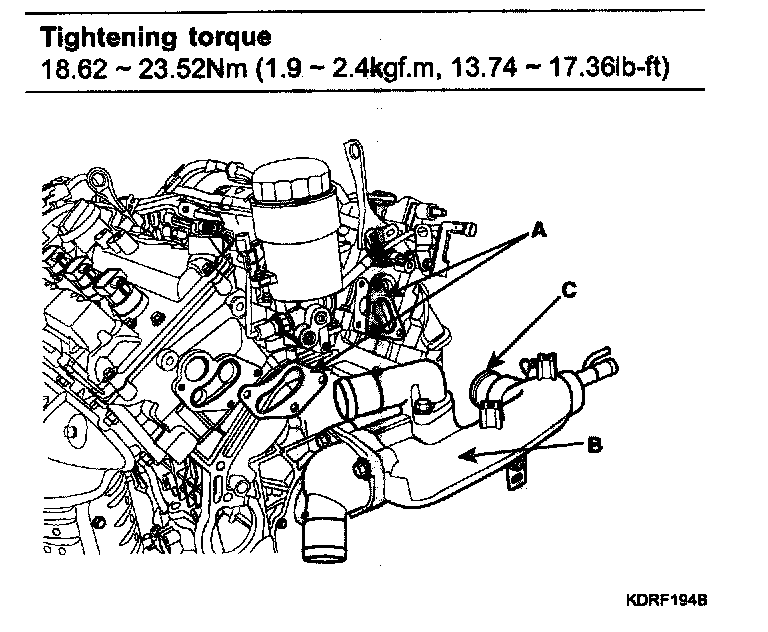

1. Install the water temperature control assembly (B) and a new gasket (A).
Tightening torque 18.62 - 23.52Nm (1.9 - 2.4kgf.m, 13.74 - 17.36 lb-ft)
NOTE: Use new O-rings (C) when reassembling.
2. Connect water hoses to the water temperature control assembly.
3. Install the wiring protector.
4. Connect the ECT sensor connector.

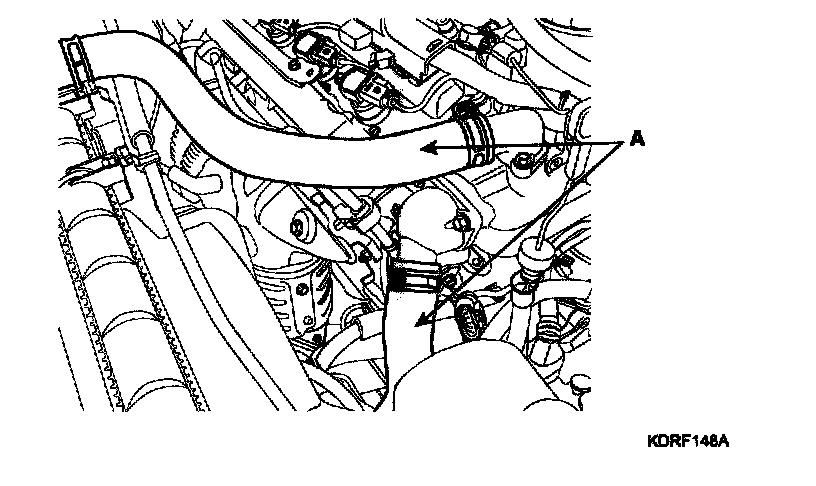

5. Connect the radiator upper and lower hose (A).
6. Install the air cleaner assembly
7. Fill with engine coolant.
8. Start engine and check for leaks.
9. Recheck engine coolant level.
THERMOSTAT
1. Place the thermostat in thermostat housing.
1) Install the thermostat with the jiggle valve upward.
2) Install a new thermostat (B).
2. Install the water inlet (A).
Tightening torque 10.66 - 19.60 Nm (1.7 - 2.0 kgf.m, 12.30 - 14.47 lb-ft)
3. Fill with engine coolant.
4. Start engine and check for leaks.
