Rear Window Defogger Relay

REAR WINDOW DEFOGGER RELAY

INSPECTION
1. Disconnect the negative (-) battery terminal.

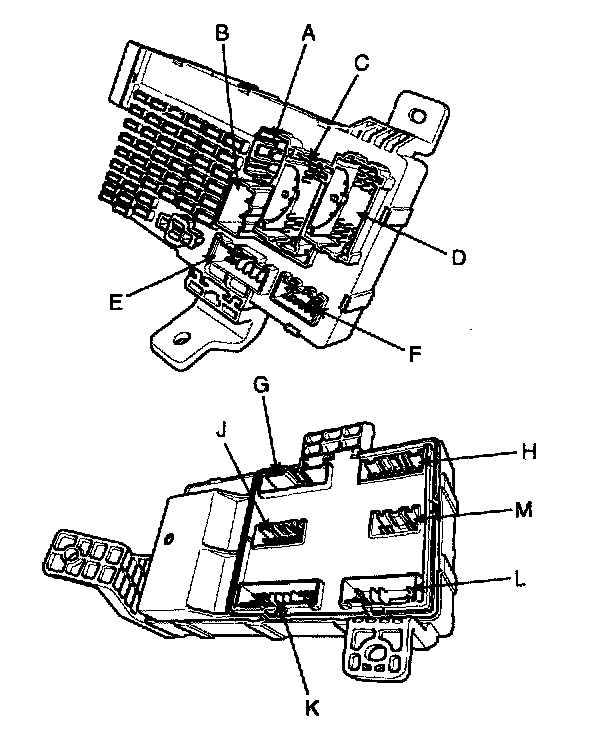

2. Remove the junction box.
3. Check for continuity between the terminals.
4. There should be continuity between the No. 7 in the I/P-E and No. 4 terminal in the I/P-A when power and ground are connected to the No. 4 terminal in the I/P-A and No. 2 terminal in the I/P-J.







5. There should be no continuity between the N0. 7 terminal in the I/P-E and No. 4 terminal in the I/P-A when power is disconnected.
