Campaign T46 - Windshield Wiper Blade Replacement

Group: CAMPAIGN

Number: 07-01-011

Date: NOVEMBER 2007

Model:
2007-2008 VERACRUZ

Subject:
WINDSHIELD WIPER BLADE REPLACEMENT
(SERVICE CAMPAIGN T46)

IMPORTANT:
DEALERS MUST PERFORM THIS CAMPAIGN ON ALL AFFECTED VEHICLES PRIOR TO CUSTOMER RETAIL DELIVERY.

DESCRIPTION:

Replace front wiper blades with new parts.

APPLICABILITY:
Applicable vehicle production date range:

Produced from June 12, 2007 to September 20, 2007

SERVICE PROCEDURE:

NOTE:
Before performing this TSB, verify that the VIN is within the production range stated above and shows an open T46 campaign.

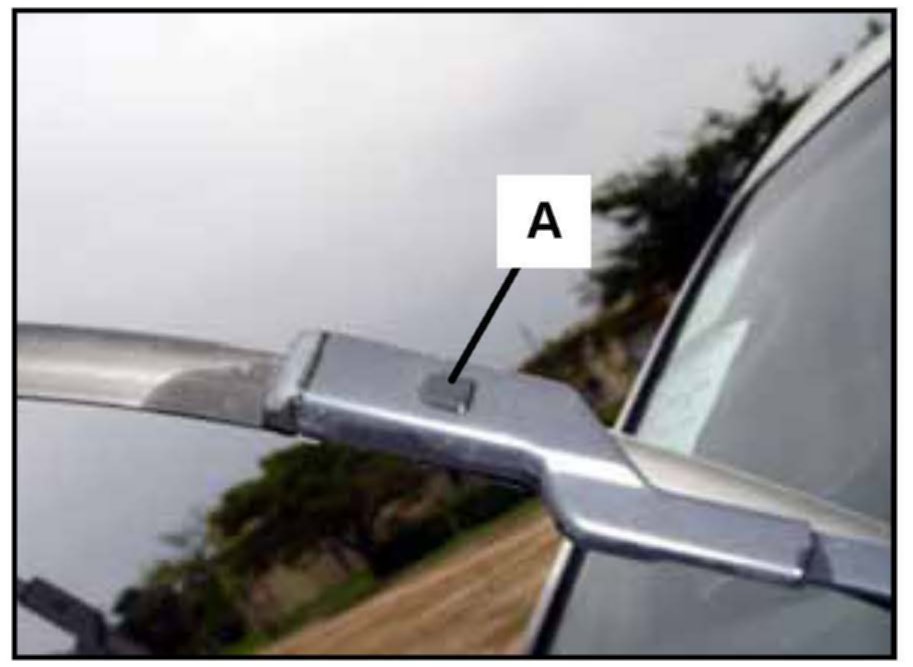

1. Raise the wiper arm on the driver's side, and then push the locking button (A) to release lock.

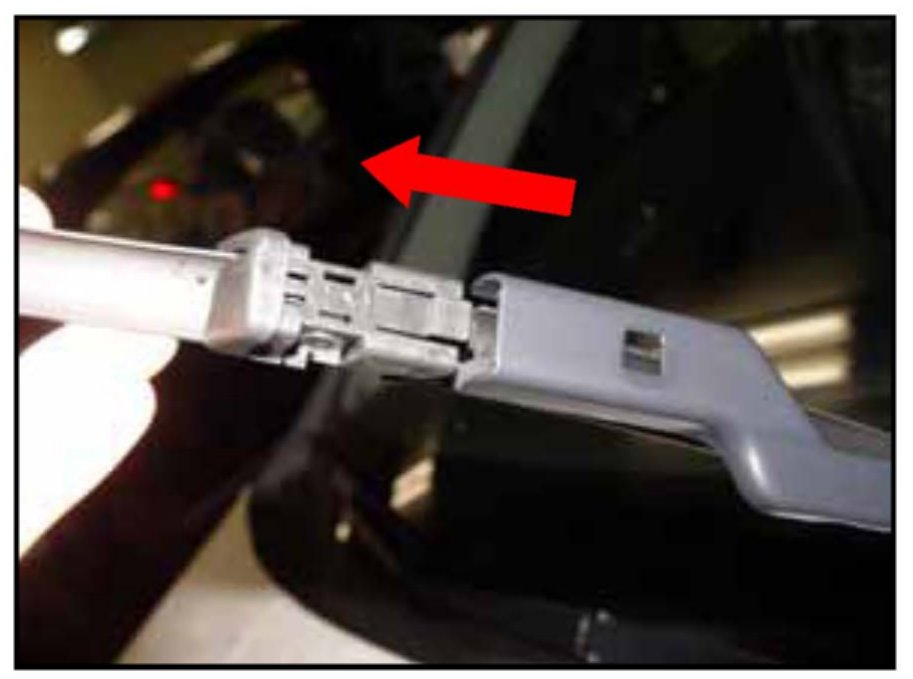

2. Slide the wiper blade in arrow direction to remove it from the wiper arm.

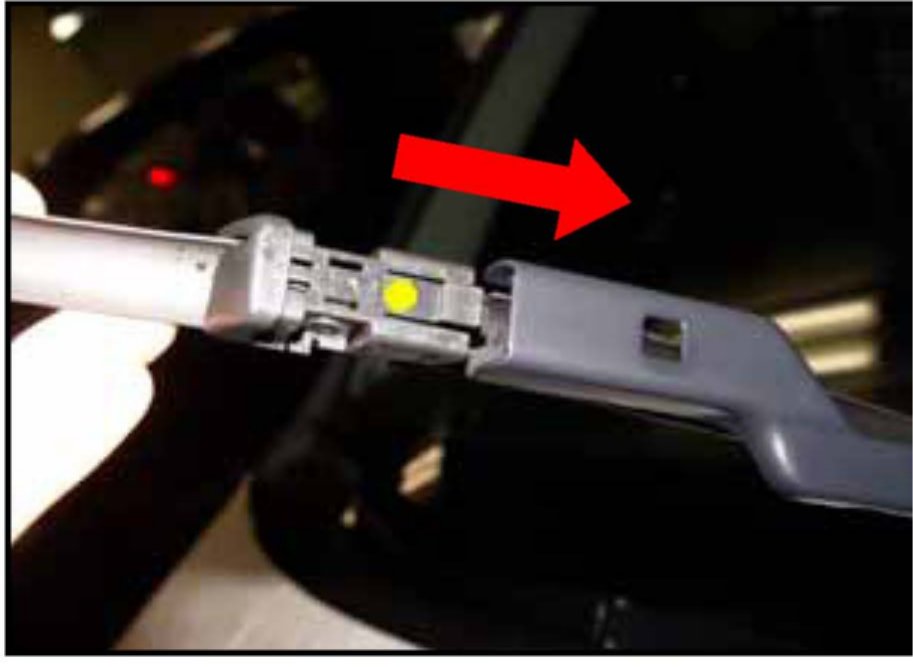

3. Fit new wiper blade to the wiper arm.

4. Replace the front wiper blade on the passenger side according to the same procedure.

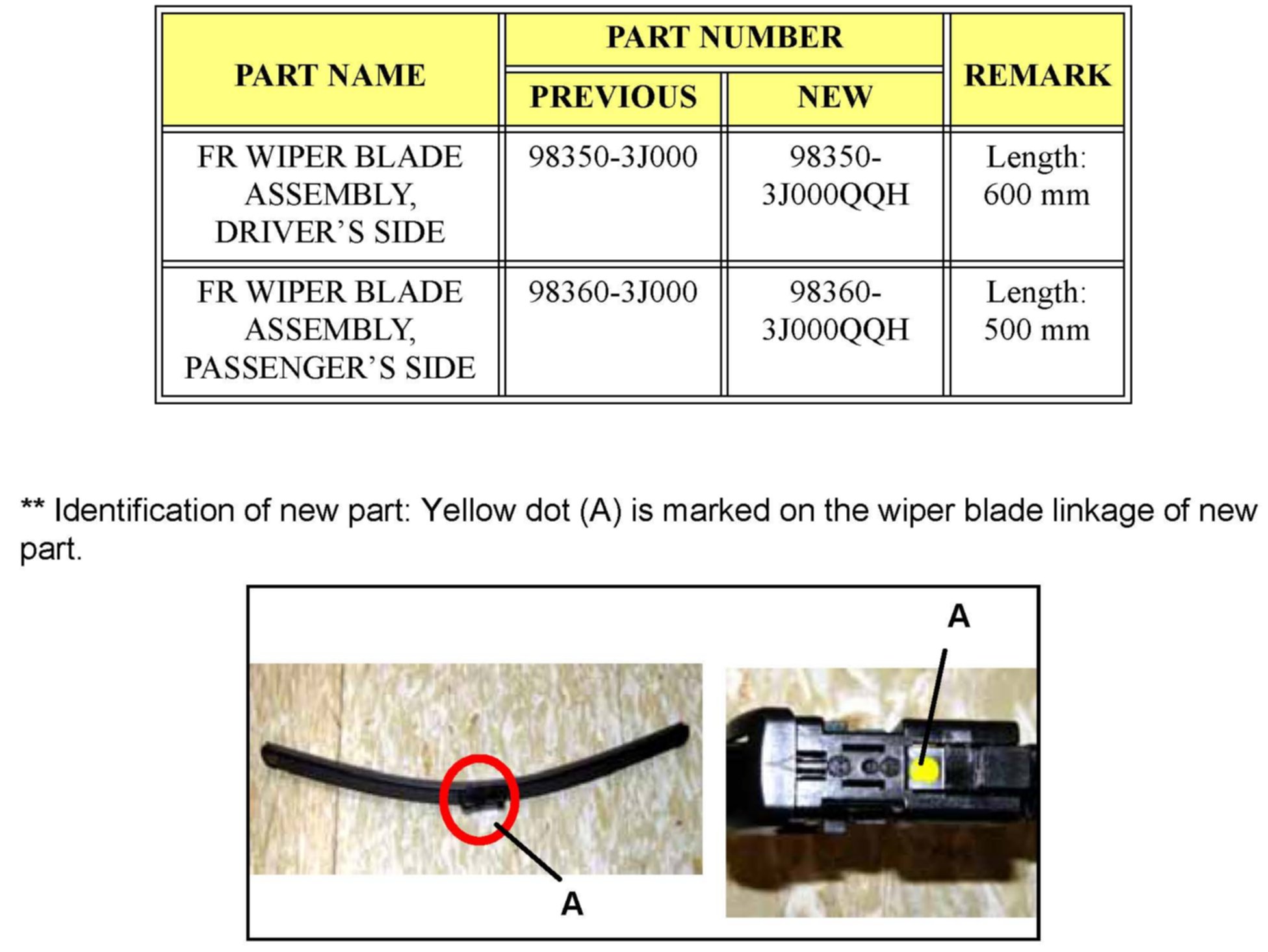

PARTS REQUIRED

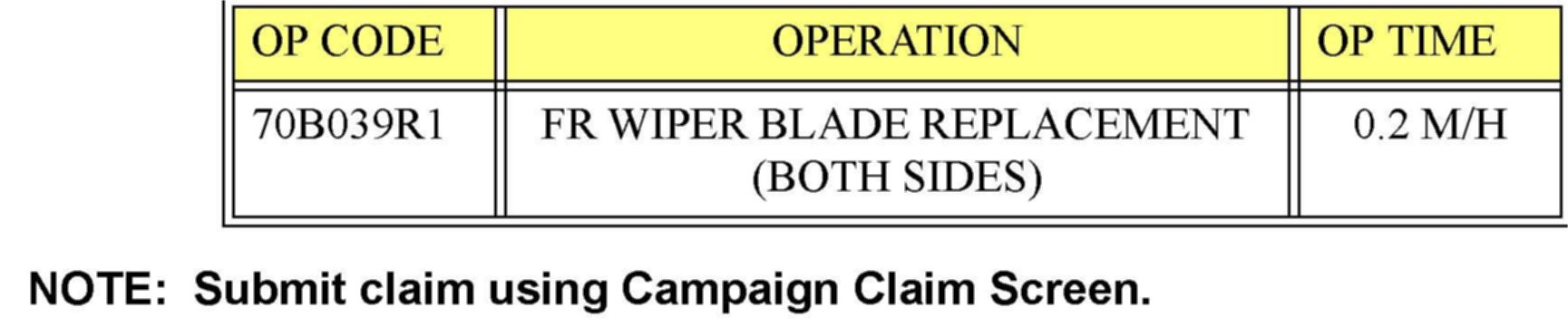

WARRANTY INFORMATION
