Installation
FRONT LOWER ARMINSTALLATION 1.

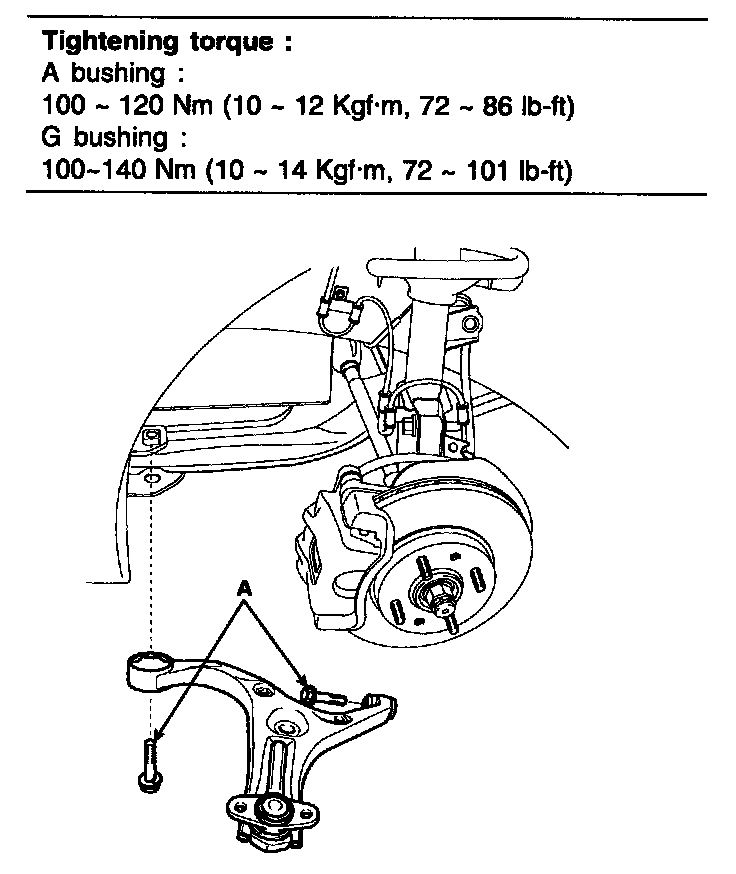

Install the lower arm mounting bolts (A).
2.
Install the lower arm ball joint mounting bolts (A).
3.
Install the front wheel and tire (A) on the front hub (B).
CAUTION
Be careful not to damage the hub bolts (C) then install the front wheel and tire (A).
