Turn Signals: Testing and Inspection
TURN SIGNAL LAMPINSPECTIONSIDE REPEATER (OUTSIDE REAR VIEW MIRROR) 1.

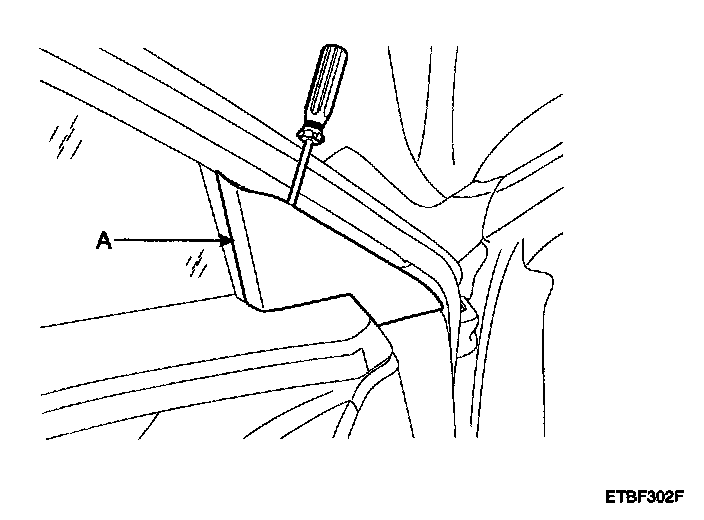

Remove the front door quadrant inner cover (A). Take care not to damage fixing clips.
2.
Disconnect the outside rear view mirror connector from the harness.
3.

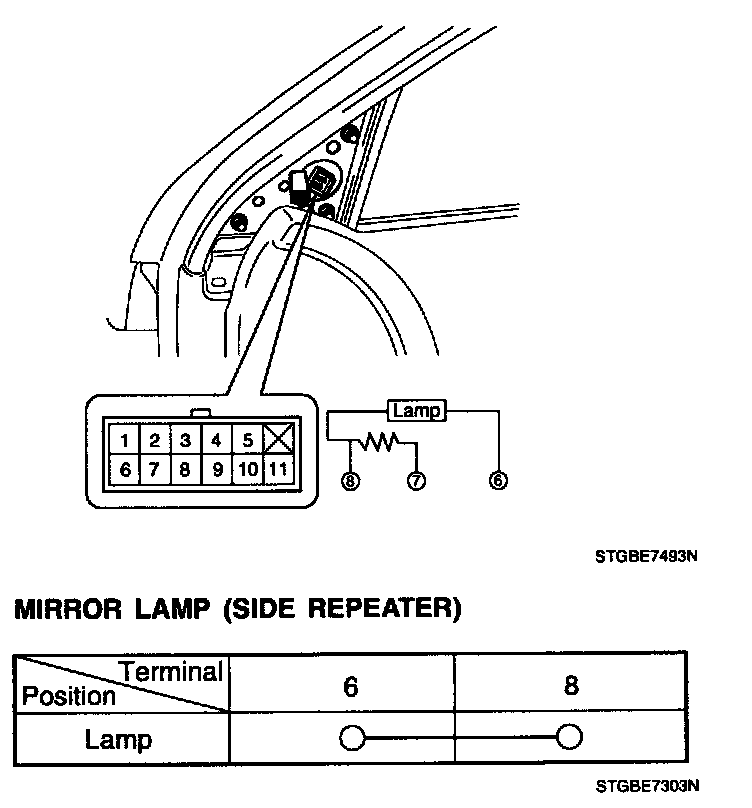

Apply battery voltage to each terminal as shown in the table and verify that the side repeater operates and continuity properly.
