Floor Console Replacement

REPLACEMENT

FLOOR CONSOLE REPLACEMENT

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

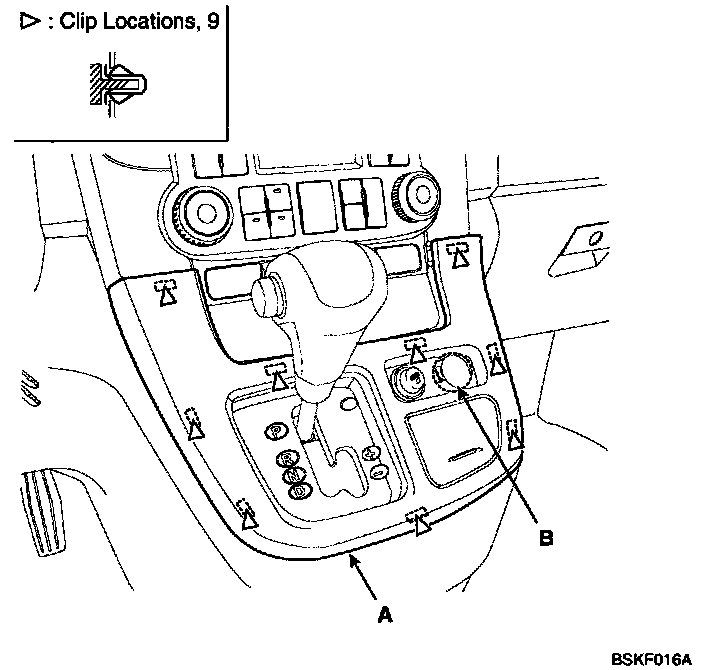

1. After the upper cover is removed(A), disconnect the connector (B).






2. Remove the following items.
- Crash pad lower panel.
- Lower bracket.
- Glove box.
- Console side cover.

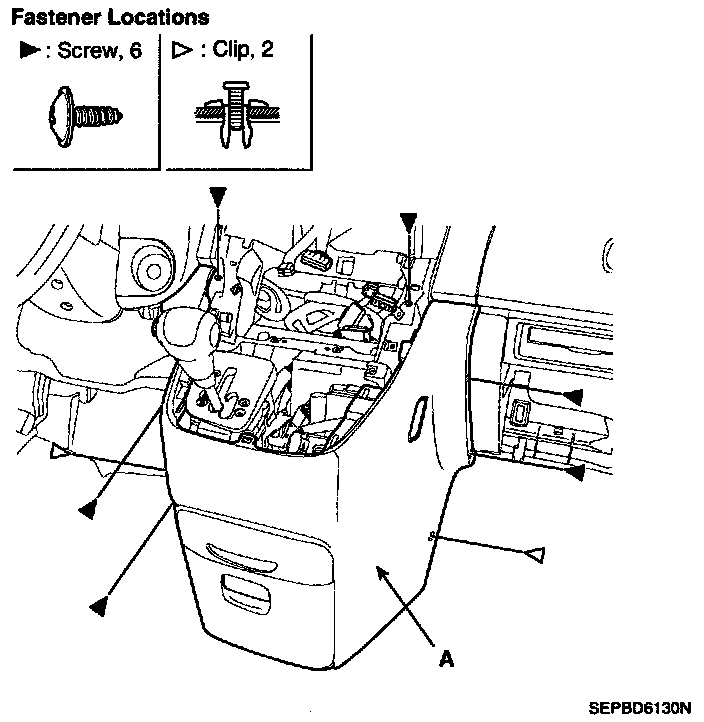

3. After loosening the console mounting screw, remove the front console (A).






4. Installation is the reverse of removal.
