Trip Computer: Service and Repair
Replacement 1.
Disconnect the negative (-) battery terminal.
2.

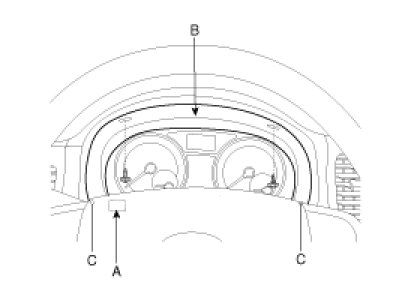

Remove the cluster facia panel (B) after disconnecting the connector of trip switch (A) and loosening the 2 screws take care of fixing clips(C).
3.

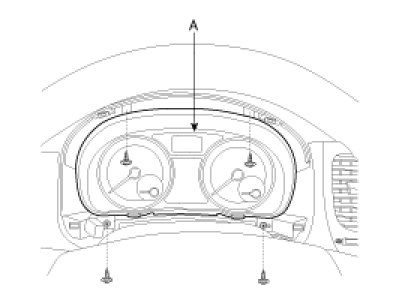

Pull out the cluster (A) from the housing after removing 4 screws.
4.

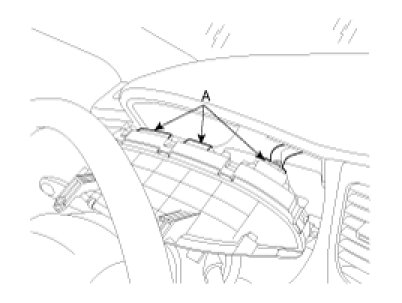

Disconnect the cluster connector (A) and then remove the cluster.
5.
Installation is the reverse of removal.
