Monitor Scantool Data
Monitor Scantool Data 1.
Connect scantool to Data Link Connector (DLC).
2.
Engine "ON".
3.
Monitor the "AMBIENT TEMP. SENSOR" Parameter on the Scantool.

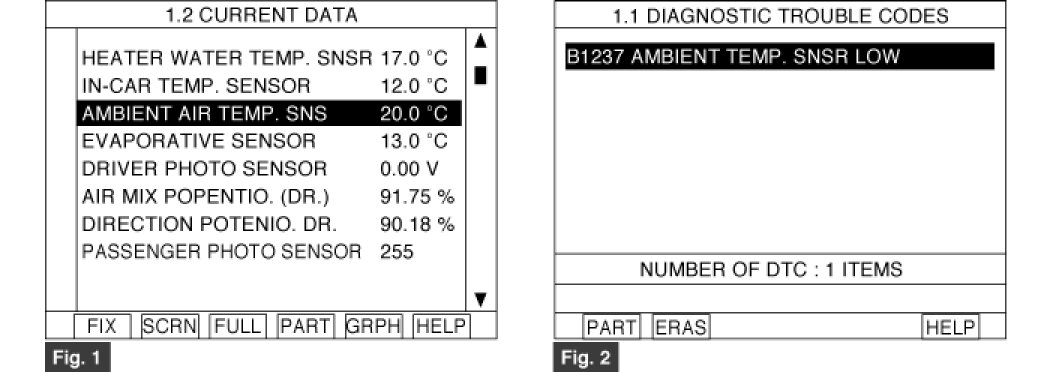

fig. 1) The current data in abnormal state
fig. 2) DTC B1237
4.
Are the DTC B1237 present and is parameter of "AMBIENT TEMP. SENSOR" fixed ?
** Parameter of "AMBIENT TEMP. SENSOR" will be fixed at 68 °F, if there is any fault in AMBIENT TEMP. SENSOR.
