Monitor Scantool Data
Monitor Scantool Data 1.
Connect scantool to Data Link Connector (DLC)
2.
Engine "ON".
3.
Monitor the "BATTERY VOLTAGE" parameter on the scantool.
Specification : Above. 9.6V

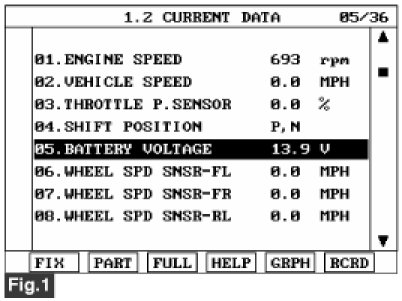

fig 1) Test Condition : Ignition "ON" & Engine "ON".
Normal Data
4.
Is parameter displayed within specifications ?
