Trunk / Liftgate Handle: Service and Repair





Inside Handle Replacement

1. Remove the trunk lid trim.

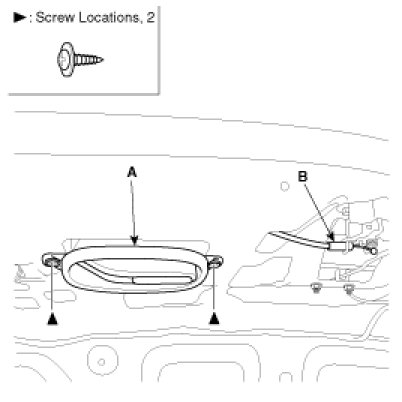

2. Disconnect the inside handle cable (B) from the latch.
3. After loosening the inside handle mounting screws, then remove the inside handle (A).




4. Installation is the reverse of removal.

NOTE:
- Make sure the trunk lid latch cable is connected properly.
- Make sure the trunk lid opens properly and locks securely.
