Cover Replacement





Cover Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the crash pad side cover (A), crash pad center under cover (B), under cover (C).

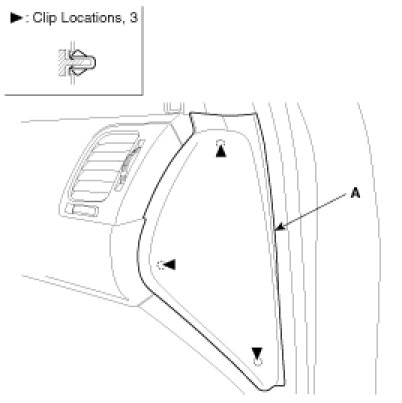

(1) Crash pad side cover.

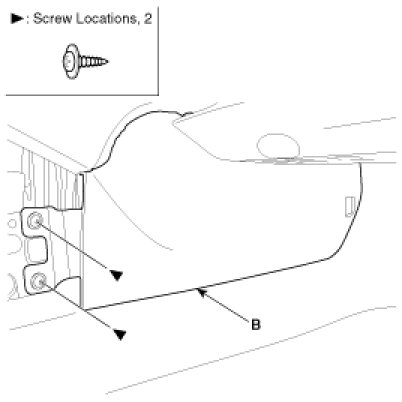

(2) Front crash pad center under cover, LH
- Remove the console assembly.

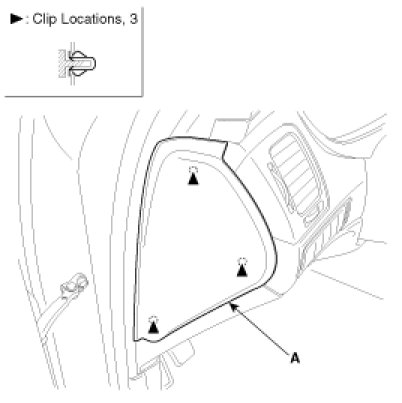

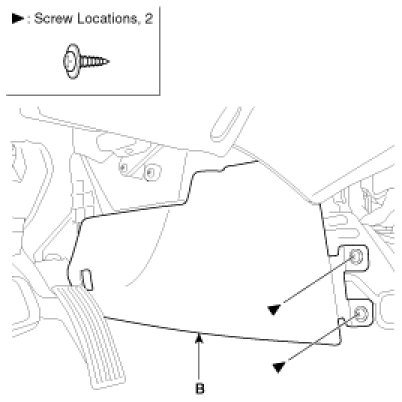

(3) Front crash pad center under cover, RH
- Remove the console assembly.

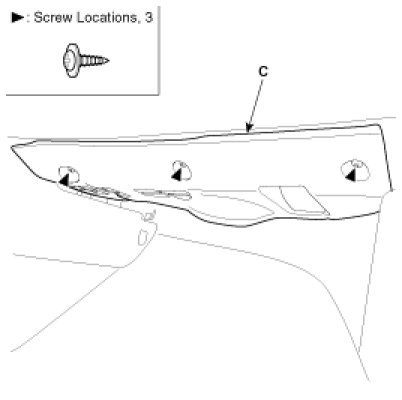

(4) Under cover




2. Installation is the reverse of removal.
