Repair Procedures





Removal

1. Remove the lower crash pad.
2. Pull down steering column shaft after removing 4 bolts.

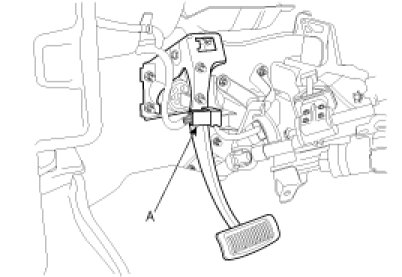

3. Remove the stop lamp switch connector (A).

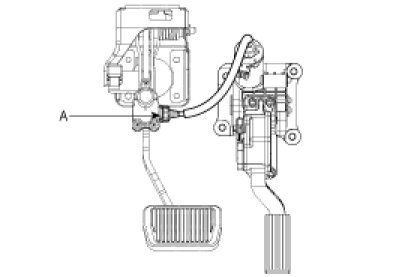

4. Remove the adjustable cable (A) in case of the adjustable brake pedal.

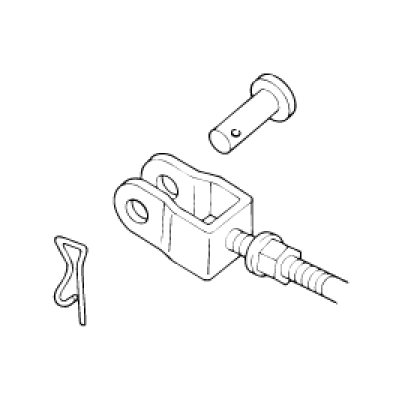

5. Remove the pin and snap pin.
6. Loosen the brake pedal member assembly mounting nuts and then remove the brake pedal assembly.

Installation

1. Installation is the reverse of removal.

CAUTION:
Coat the inner surface of the bushings with the specified grease.

Specified grease :SAE J310


2. Before inserting the pin, apply the specified grease to the joint pin.




3. Install the snap pin.
4. Install the nuts with specified torque, when installing the brake pedal.

Tightening torque :
12.74 - 15.68N.m(1.3 - 1.6kgf.m, 9.45 - 11.63lb-ft)


5. Adjust the brake pedal height and free play.
6. Install the stop lamp switch.
