Repair Procedures





Removal

1. Remove under cover(A).

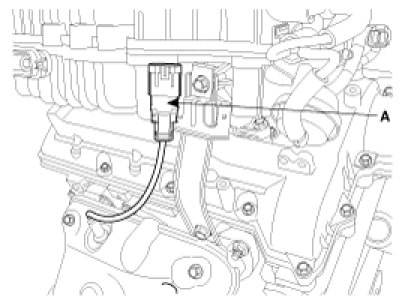

2. Disconnect LH,RH rear oxygen sensor connector from bracket.
3. Remove front muffler(A).

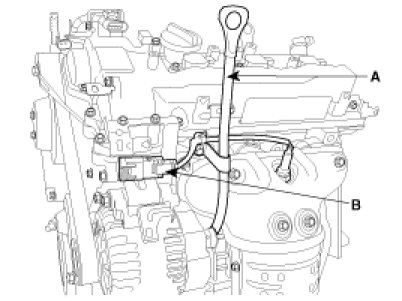

4. Remove oil level gauge(A).
5. Disconnect LH front oxygen sensor connector(B) from bracket.

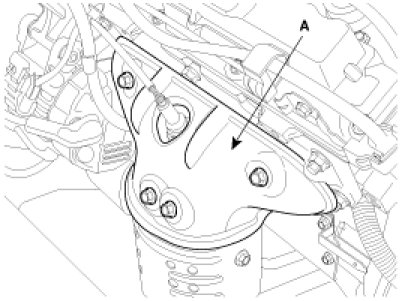

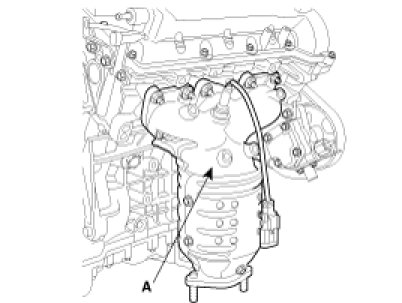

6. Remove LH heat protector(A).




7. Remove LH exhaust manifold.
8. Disconnect RH front oxygen sensor connector from bracket.




9. Remove RH heat protector.
10. Remove RH exhaust manifold.






Installation

1. Install new gasket and exhaust manifold.

Tightening torque
39.2 - 44.1Nm(4.0 - 4.5kgf.m, 28.92 - 32.53lb-ft)


2. Install heat protector.

Tightening torque
16.66 - 21.56Nm(1.7 - 2.2kgf.m, 12.30 - 15.91lb-ft)


3. Install front muffler.

Tightening torque
39.2 - 58.8N.m(4.0 - 6.0kgf.m, 28.92 - 43.37lb-ft)


4. Connect oxygen sensor connector.
5. Install under cover.
